Model: TU-E1.5 TU-E02

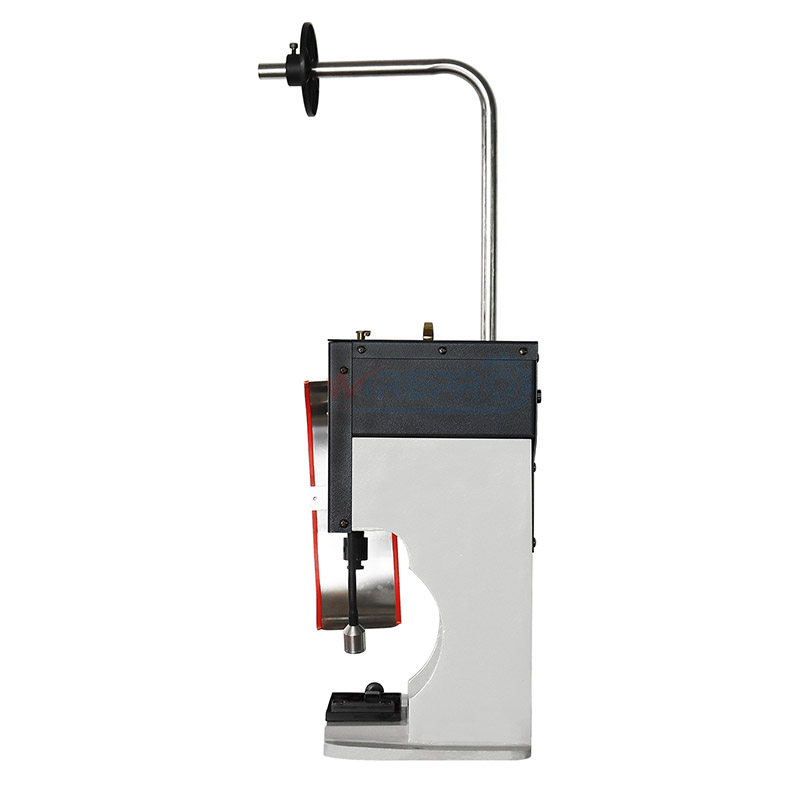

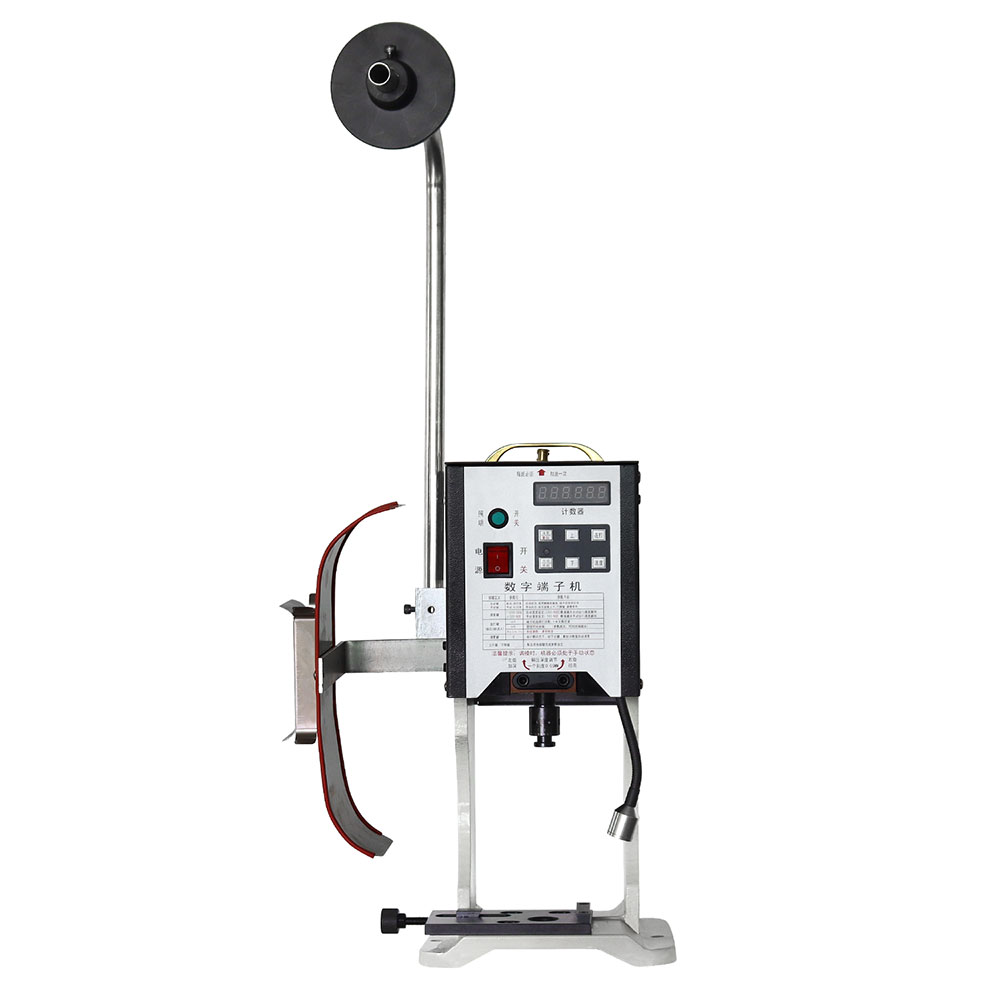

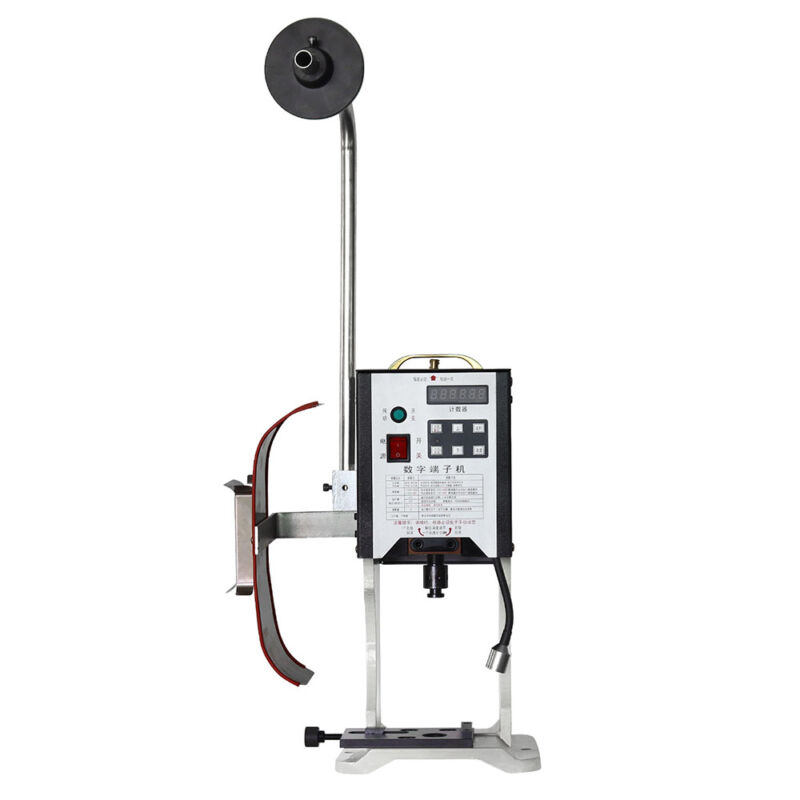

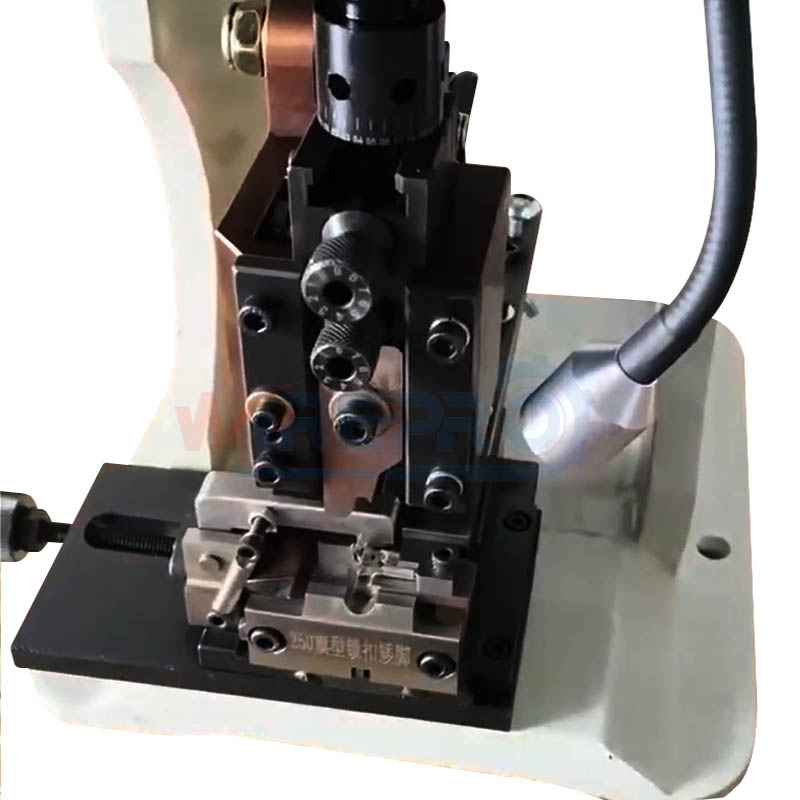

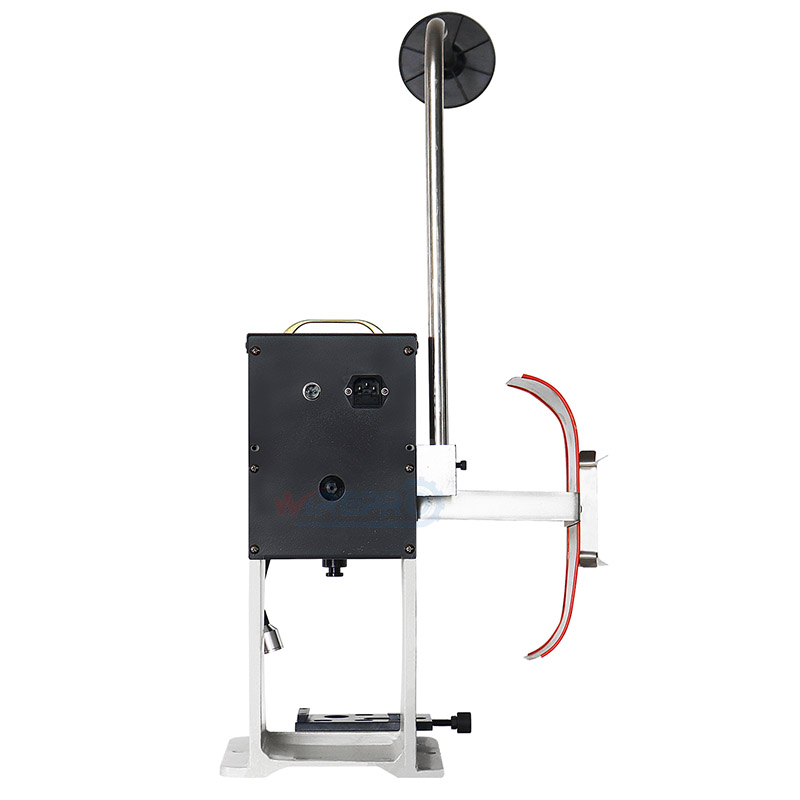

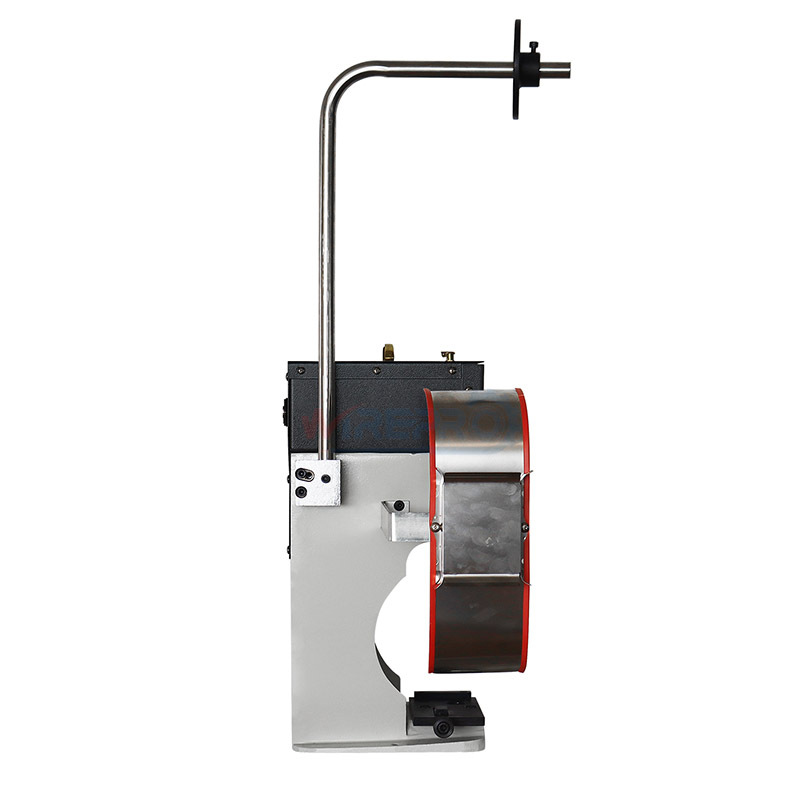

TU-E1.5 TU-E02 digital universal terminal crimping machine
Description
This machine is a new type of digital terminal machine. It uses advanced digital technology to digitally control the motor. The digital positioning is accurate. The pressure can be adjusted according to needs. It is suitable for OTP molds, European molds, JST molds, pneumatic molds, four Various molds such as dot molds and hexagonal molds have strong versatility.
Upgrade features:
1. Frequency converter control technology, high-precision electronic positioning, suitable for various terminal crimping
2. Autonomous callback to prevent jamming, using high-tech control technology to prevent mold jamming
3. Digital optical coding motor, PLC programming system, accurate and fast action
4. Top portable design, easy to move, light and delicate
Technical Data
| Model | TU-E1.5 | TU-E02 |
| Crimp Force | 1.5 Ton | 2.0Ton |
| Recommend Wire | 0.1 – 1.5 sqmm | 0.1-2.5 sqmm |
| Stroke | 30mm (custom available) | |
| Power Supply | 110/220VAC,50/60Hz | |
| Power | 500W | 700W |
| Weight | 30kg | 35kg |
| Dimensions | 29*31*54cm | 29*31*54cm |
Application
Wire stripping and ring terminal crimping
