Model: HB-C10
The automatic cable bundling machine, the operator only needs to put the wire harness to correct position and then press down the footswitch, all other work can be done automatically.

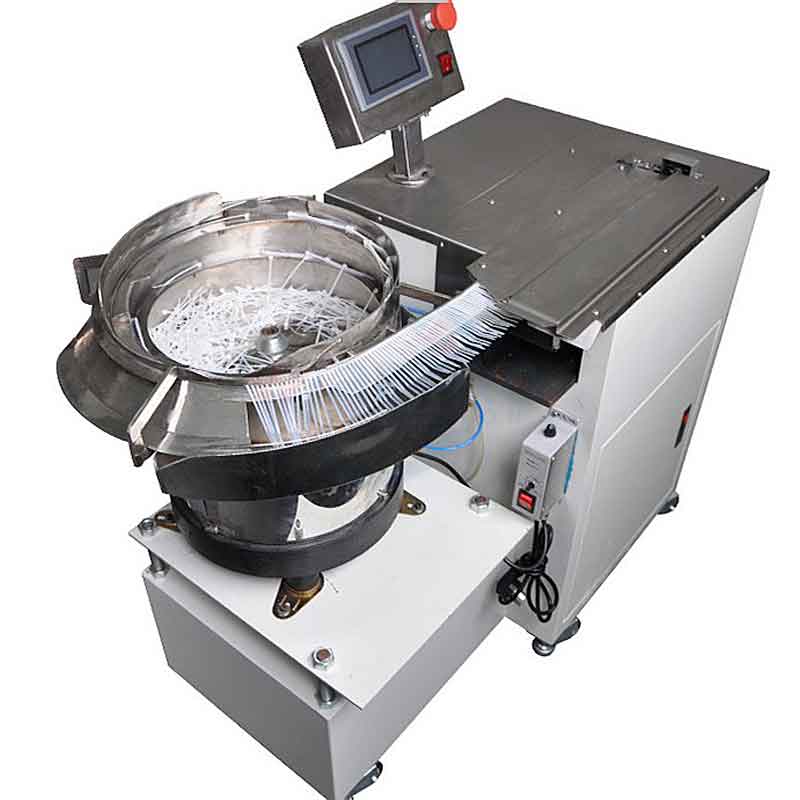

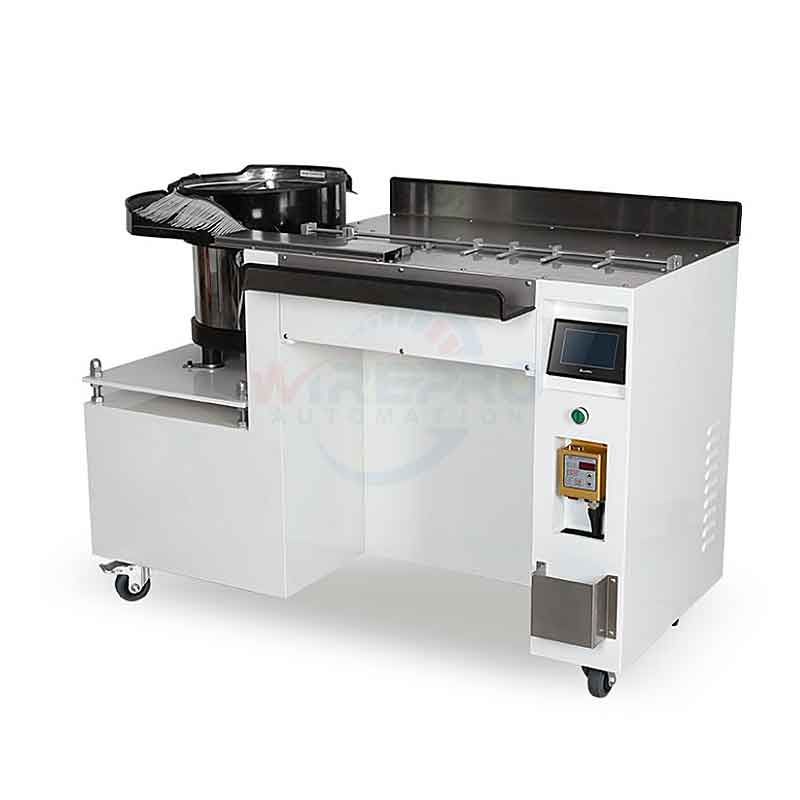

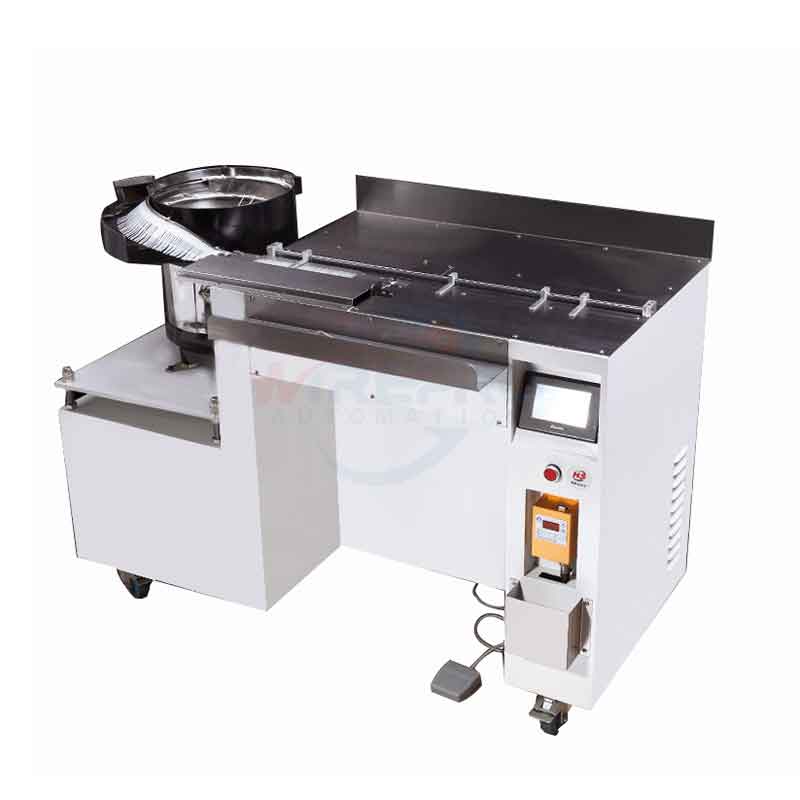

HB-C10 desk type cable tie tying wire bundling machine
Description

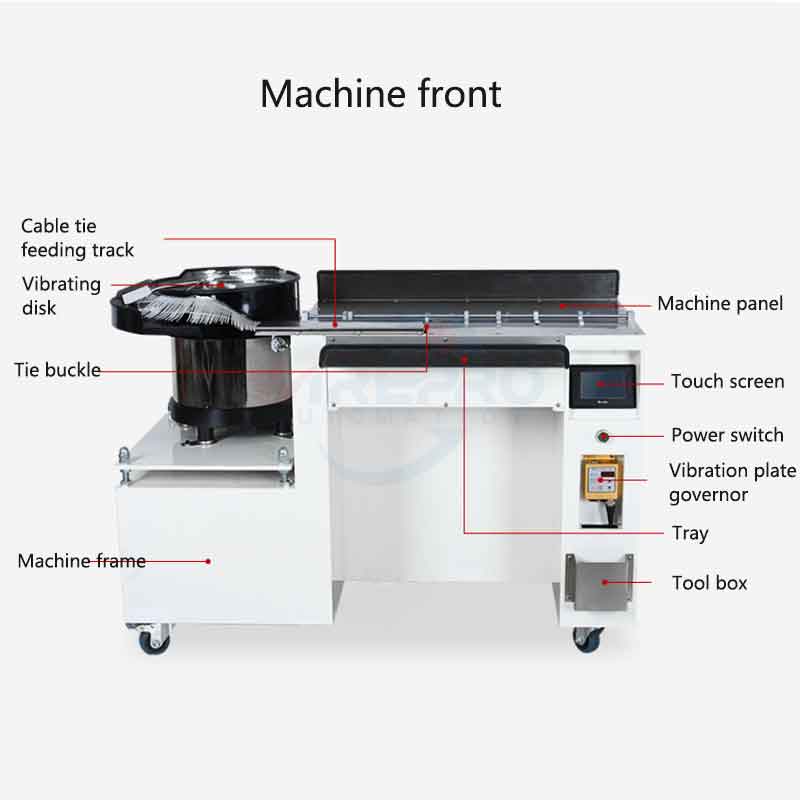

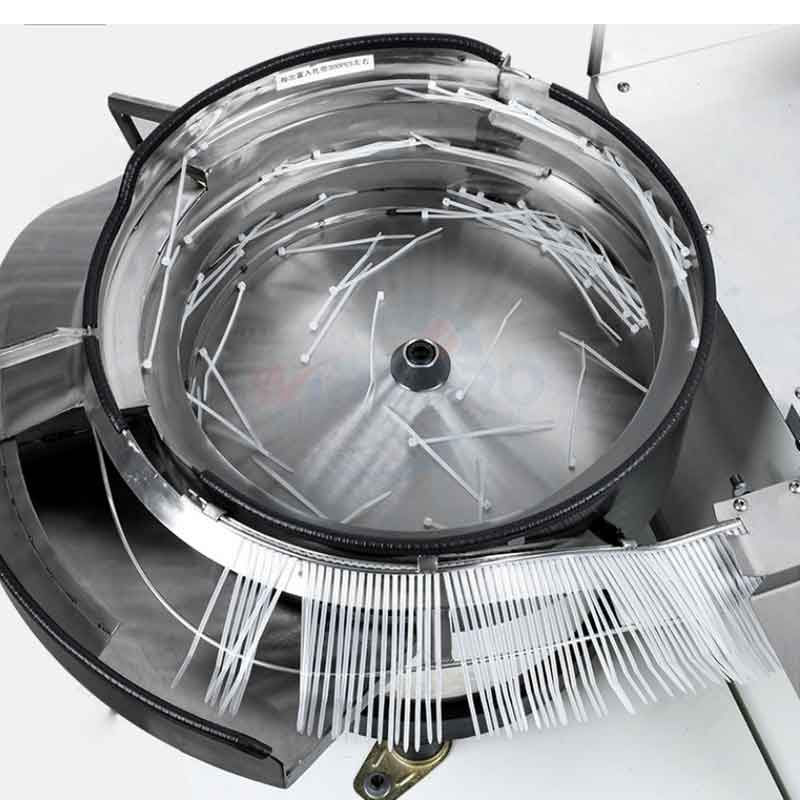

The automatic cable bundling machine adopts nylon cable tie to bind wire harness, the vibration plate can continuously feed cable ties to work position, the operator only needs to put the wire harness to correct position and then press down the footswitch, all other work can be done automatically.
Feature:
1. Automatic PLC touch screen control circuit, easy operation, clear and intuitive, good stability.
2. Bulk of nylon cable ties automatic feeding, eliminating the tedious process of manual discharge.
3. Cable ties automatic wear locking and cut, saving time and effort, 1500 – 2000pcs / hour, at least four times more efficiency.
4. Wide adaptation, can tie various linear or circular shape products(diameter greater than 30 MM), the perimeter of tying parts can be adapted from 3-50mm.
5. Digitally adjustable elastic Cable ties through touching the screen, touch digital screen to adjust the end of cable ties left.
Video
Technical Data
| Model | HB-C10 |
| Cable tie length | 80/100/120/150 mm (can be customized) |
| Cable tie width | 3 – 5 mm |
| Tying Diameter | 2 – 30 mm (can be customized) |
| Tail length | 0 – 3mm |
| Production speed | about 2000pcs/hour based on operation speed |
| Power Supply | 110/220VAC,50/60Hz |
| Power | 700W |
| Dimensions | 650 * 650 * 720 mm |
| Weight | 130kgs |
Application
Widely used in electronics factories, wiring harness, cables, electronics, toys, gifts, food, and other industries bundled TVs, computers and other internal electrical connections, lighting fixtures, motors, electronic toys, and other products in fixed circuits, mechanical equipment oil pipelines fixed, ship cables fixed.
And it’s good to bundle with other objects, and can also be used for strapping items such as wire, air-conditioning capillaries, toys, daily necessities, agriculture, gardening, and handicrafts.
It completely solves the low cable ties productivity, employment difficult problem.
