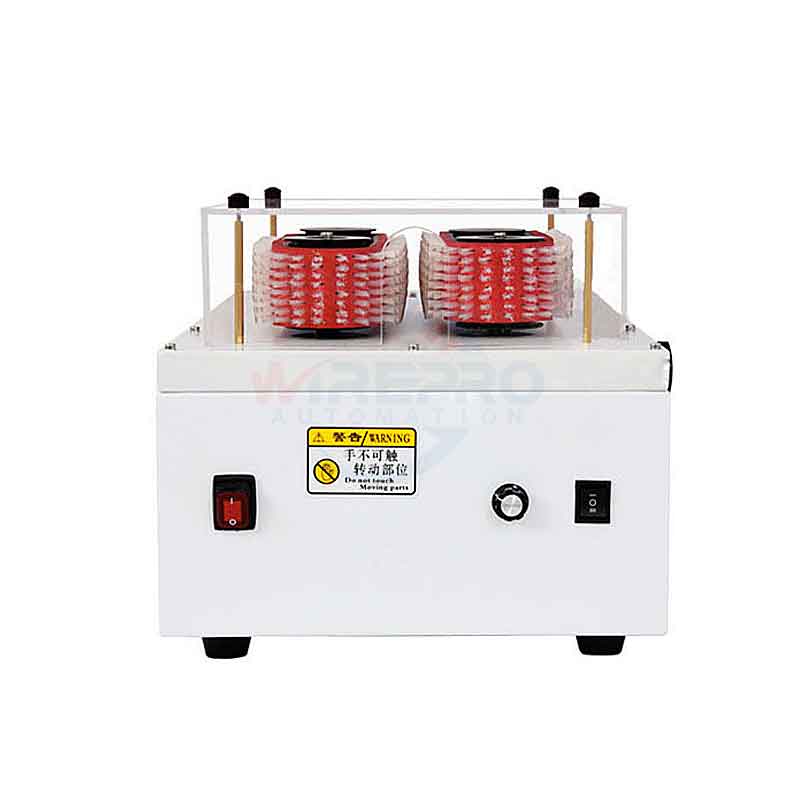

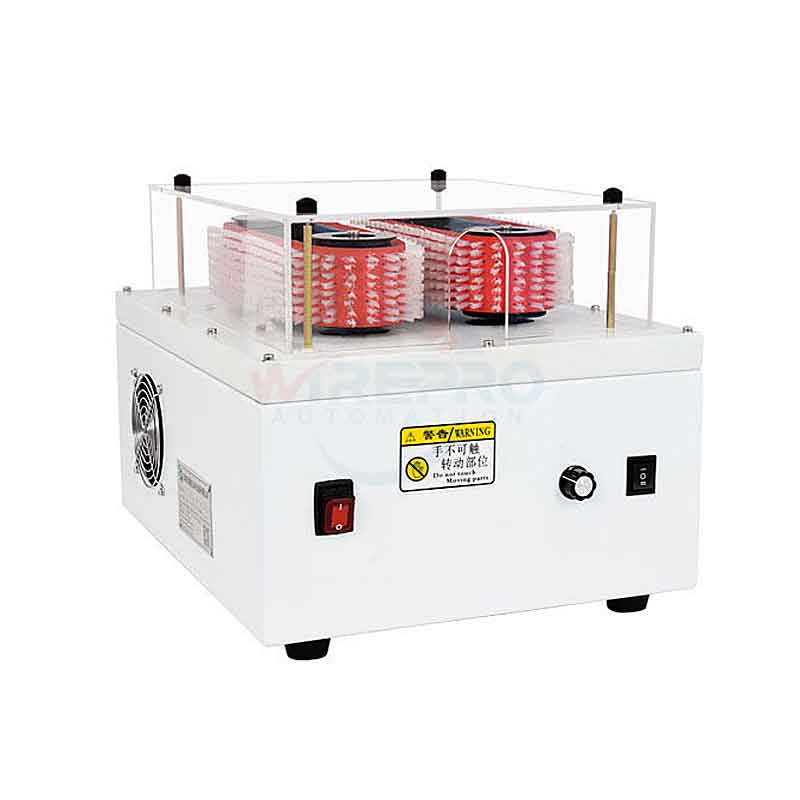

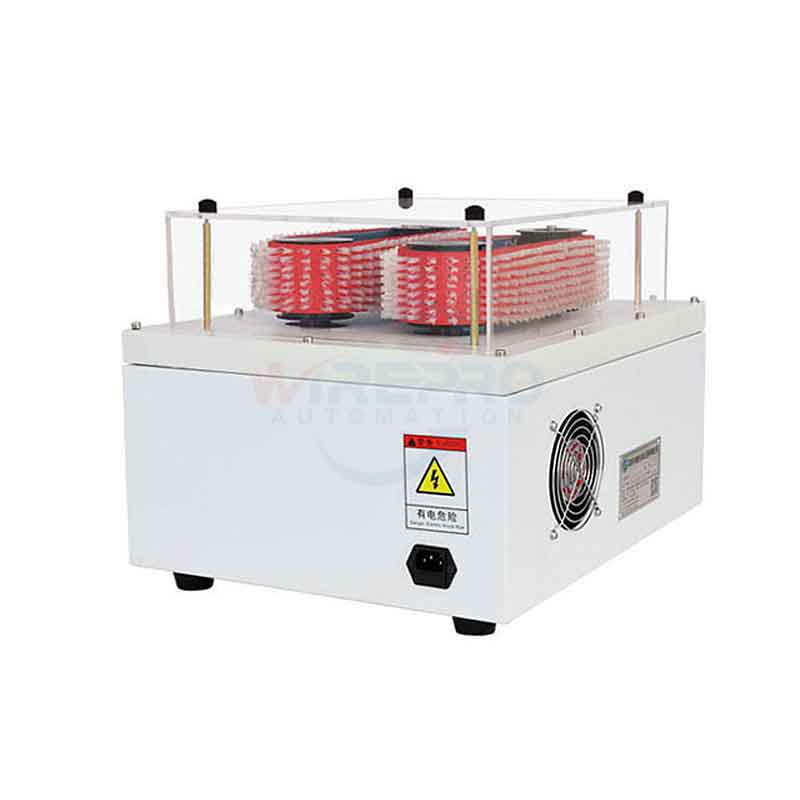

PB-200 Max 200mm crawler long braided shielding knitting brushing machine

Model: PB-200

Crawler long braided shielding net brushing machine. The shielding net can be brushed smoothly to facilitate later processing.



SKU: PB-200 Category: Tag:

Description

The shielding net can be brushed smoothly to facilitate later processing. The operator holds the wire and slowly puts the wire in from the front section while holding the wire slowly rotating.

Features

1. When brushing the shielding net, brush the shielding net slowly from the front to the back (the principle of combing hair is same)
2. The wire can be pulled back and forth to increase the friction, brush the knots smoothly.

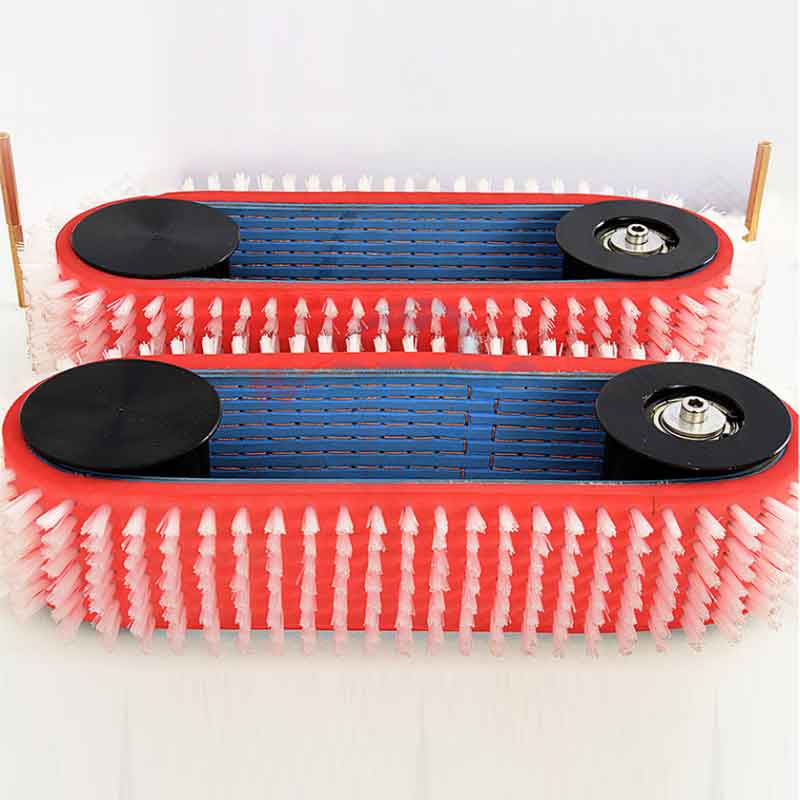

3. Different size wires can adjust the track brush wheel spacing, just turn the rotating handle on the right side of the fuselage.
4. This machine is convenient and quick.
5. This machine is designed with a safety cover to protect the operator.

In order to ensure the safety and durability of the controller, please do not switch between the positive and negative directions frequently during the operation of the motor, and do not start the motor when the governor is in the high-speed position. Please adjust the governor every time you stop the motor, then restart.

Video

Technical Data

Model PB-200
Brushing wire range Dia 1-30 mm
Brushing speed 0-1800circle/min(adjustable)
Brushing length 5 – 200mm (depending on net material)
Speed About 3-10s/piece (depending on net material and length)
Brushing motor 3000 circle/s
Power supply AC220V 50Hz
Power 240W
Dimension 42*48*32cm
Weight 42kgs

Application



Download

If you wish to have the datasheet of this or other products, you can let us know here: CONTACT

Or email to [email protected], we will send you the machine introduction.
