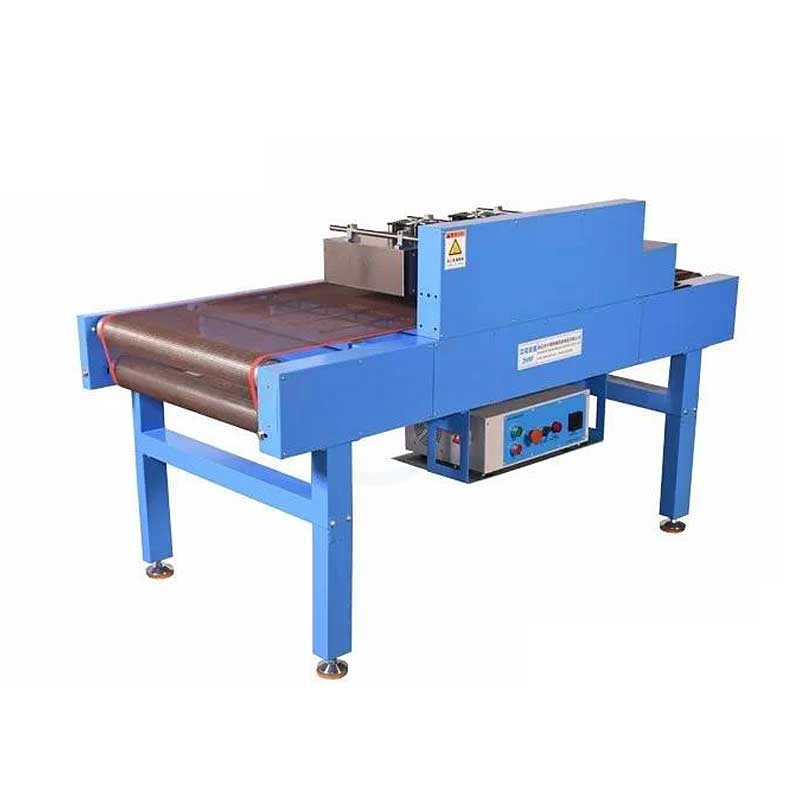

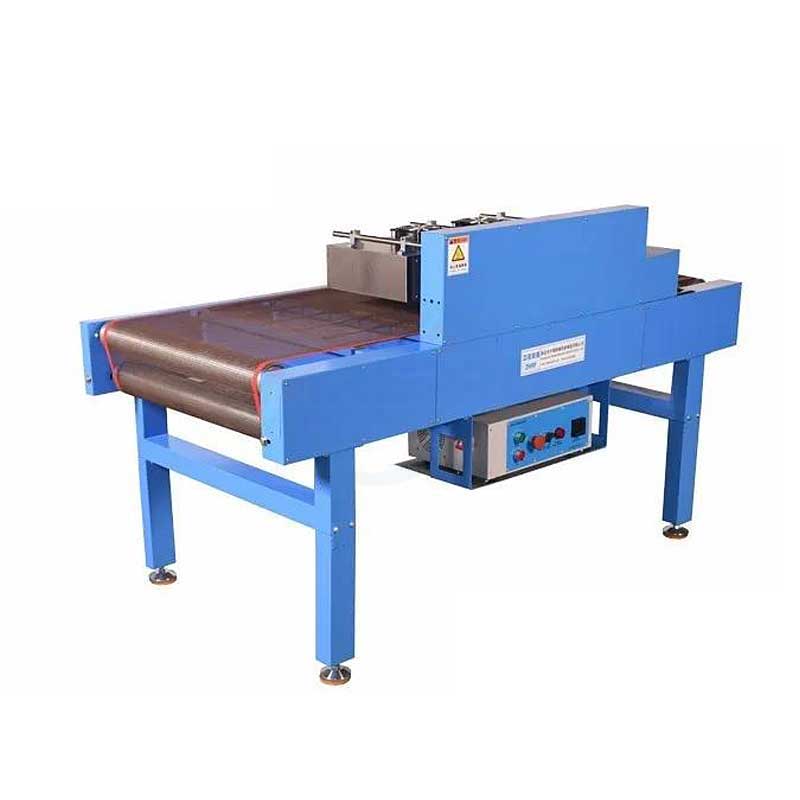

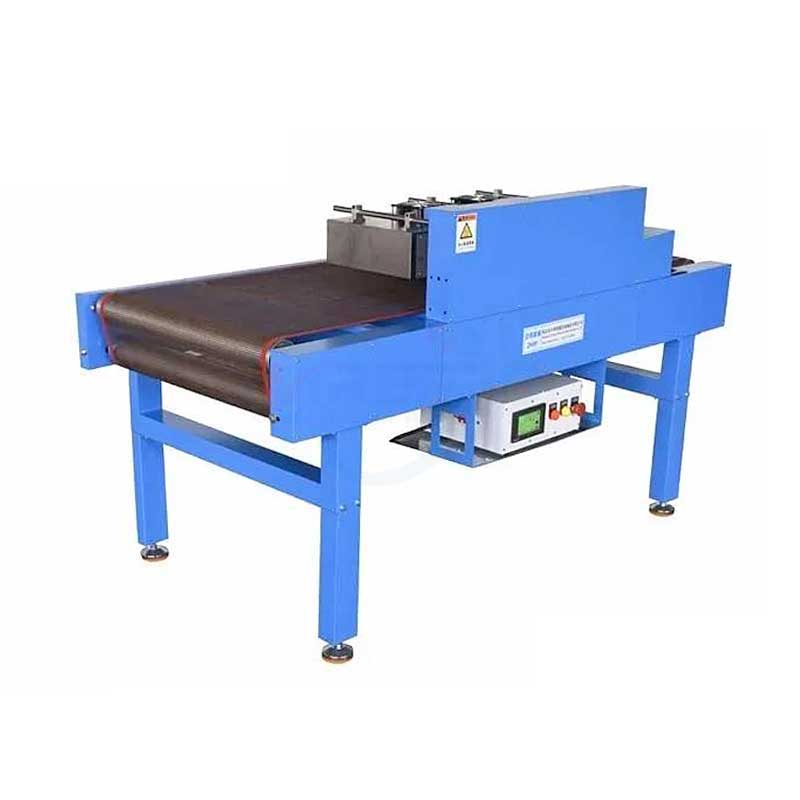

RD-65BM Conveyor belt double-sided heat heat-shrinkable tube heating machine

Model: RD-65BM

Double-sided heating makes the heat-shrinkable tube uniformly heated, heating temperature, conveying speed, adjustment, heating temperature controllable, heating The zone width is adjustable, suitable for any length of the heat-shrinkable tube.

Description

RD-65BM Heat-shrinkable tube heating machine supports local heating and does not damage the wire. Double-sided heating makes the heat-shrinkable tube uniformly heated, heating temperature, conveying speed, adjustment, heating temperature controllable, heating The zone width is adjustable, suitable for any length of the heat-shrinkable tube.

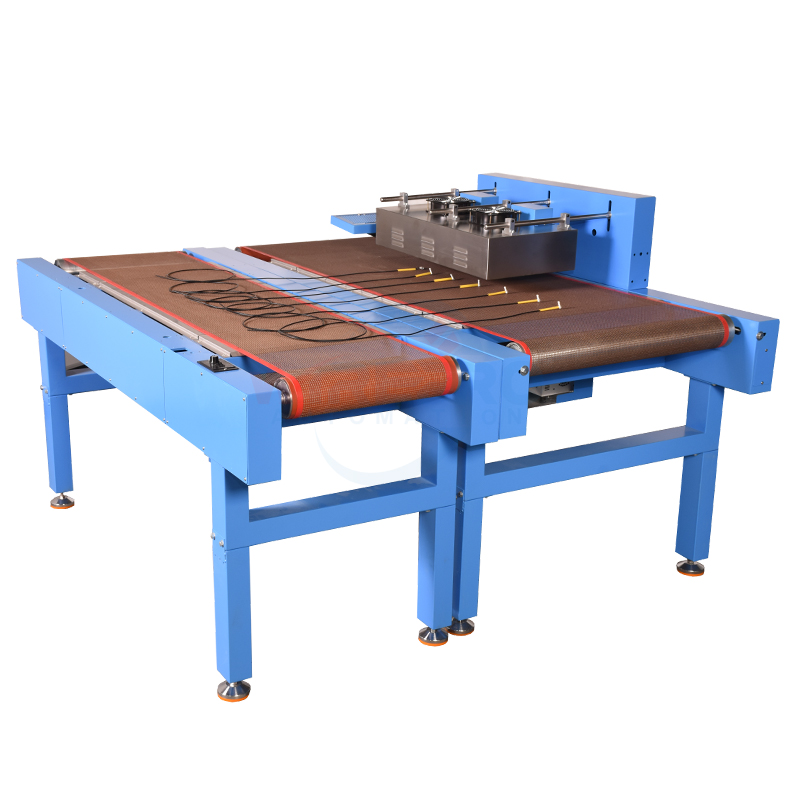

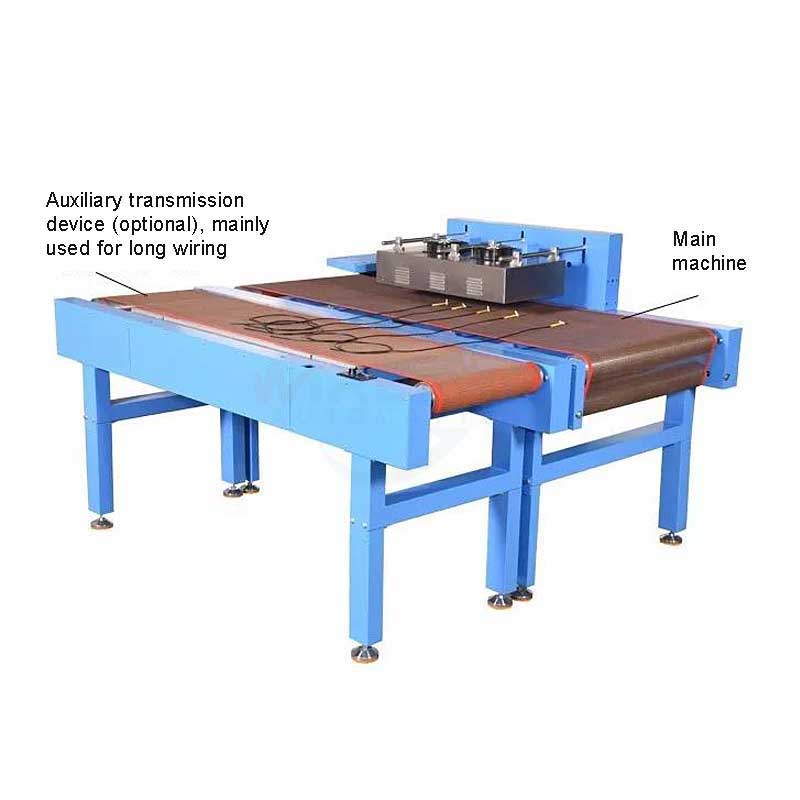

Equipment composition: heating machine + control system (optional auxiliary conveyor)

Features:

1. Double-sided heating temperature is controllable, heating evenly, suitable for processing large diameter or thick wall heat shrinkable tubes.
2. The width of the heating zone is adjustable, and the width of the heating zone can be adjusted by the user according to the size of the heat-shrinkable tube, which saves energy and does not damage the thread.
3. Heat insulation design of heating zone, double design of heating zone shell is filled with thermal insulation material to isolate the internal and external temperature, which saves energy and protects the working environment.
4. This machine has a digital electronic thermostat, which can control the temperature of the heating tube to ensure temperature balance.
It can be operated continuously for 24 hours to ensure work efficiency.

Technical Data

Model RD-65BM
Heating area width 120mm ( can custom max 220mm)
Recommend heating harness diameter < 25mm ( can custom )
Heating length < 120mm ( can custom max 220mm)
Transfer length < 650mm
Heating tube name  Infrared radiation tube (2400W)
Temperature range  < 260 ℃
Temperature tolerance ±5 ℃
Power supply 220V
Power <4500W
Weight 103kg
Dimension 180*86*107cm
