Model: HB-W35
The HB-W35 is a small size winding machine, supports winding round shape layer by layer.

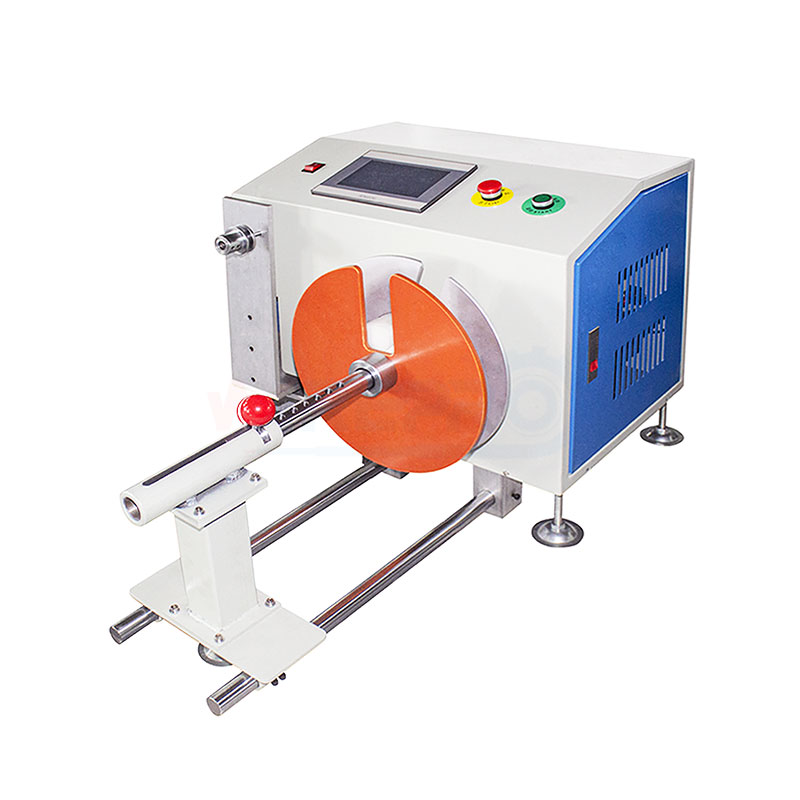

HB-W28 HB-W35 cable tube winding machine layer by layer automatic winder
Description
The HB-W35 is a small size winding machine, supports winding round shape layer by layer.
It is suitable for different kinds of tubes and cables, like USB cables, mouse/keyboard cables, headphone cables, AC/DC power cables, network cables, telephone lines, and other types of signal transmission wire.
1. Cost-effective: It is 3 times more than manual winding and tied wires. Reduce labor costs and improve the working environment and strength.
2. Simple operating and practical: It uses PLC program control, it’s easy and fast to set the parameters. It will statistics the output automatically to save the counting by workers.
Technical Data
| Model | HB-W28 | HB-W35 |
| Max Loading Weight | 1.5kgs | 3kgs/15kgs |
| Inner Dia of Round Shape | 50-200mm(can be adjusted) | 50-200mm(can be adjusted) |
| Out Dia of Round Shape | Max 280mm | Max 350mm
220\280\320\350 for choice |
| Width ( if layer by layer) | Standard Max 120mm | Standard Max 120mm
Optional Max 200mm |
| Winding Speed | Can be set, 30 speed options | |
| Number of Windings | Can be set, 1-999 cycles | |
| Power Supply | 110/220VAC,50/60Hz | |
| Power | 500W | 800W |
| Dimensions | 40*80*35cm | 90*60*45cm |
| Weight | 40kgs | 56kgs |
Application
Wire roll, small wire spool winding
