Model: PF-S100
It is suitable for various big size wires and cables spool.

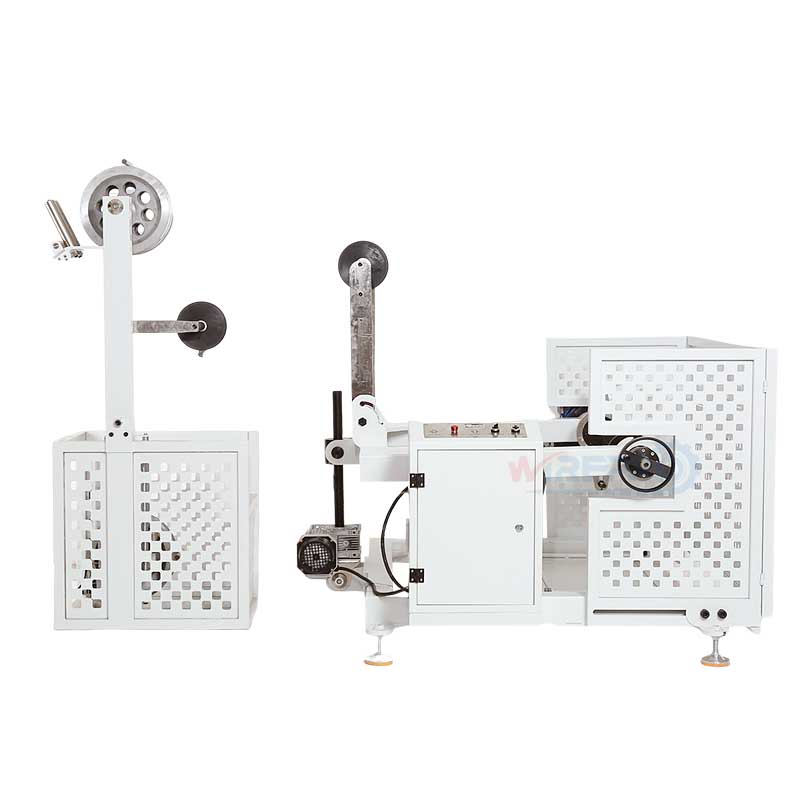

PF-S100 cable drum unwinder wire spool dereeler
Description
Technical Data
| Model | PF-S100 |
| Available Wire Diameter | ≤ Φ50mm (based on cable, please check with WIREPRO) |
| Available Spool Outer Diameter | 800-1500mm |
| Available Spool Inner Diameter | 53-85mm |
| Available Spool Width | 600-1000mm |
| Max Load Weight | 1500kgs |
| Feeding Speed | 0-100m/min |
| Power Supply | 380V 3-phase |
| Power | 3000W |
| Available Wire | Wire, cable etc. |
| Drive Type | Inverter & motor & reducer |
| Dimensions | 165*200*185cm |
| Weight | 550kg |
Application
This fully automatic wire feeder eliminates the trouble of manual wire feeding.
