Model: HB-AB81

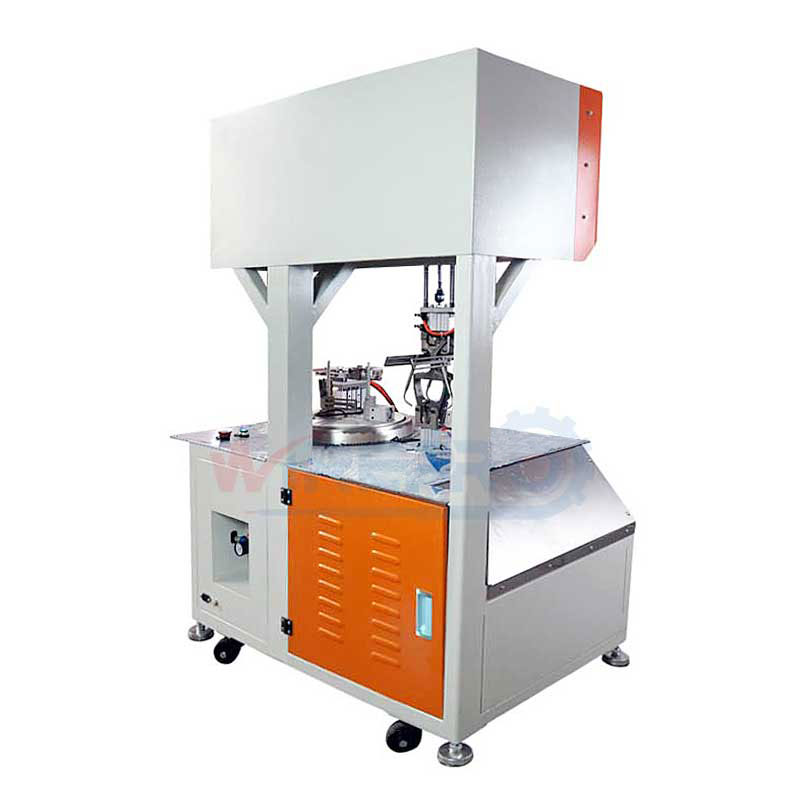

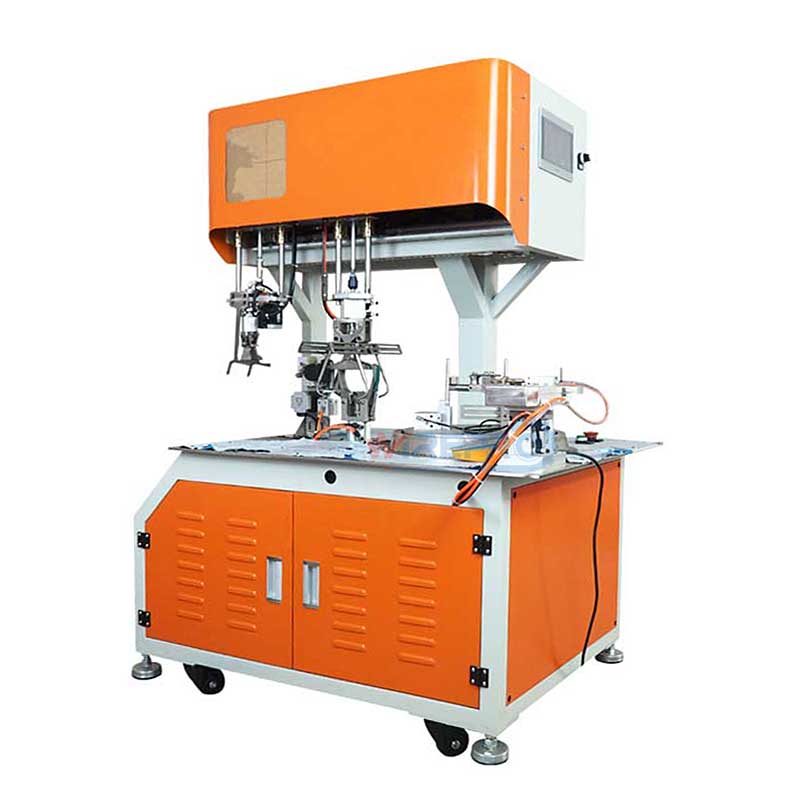

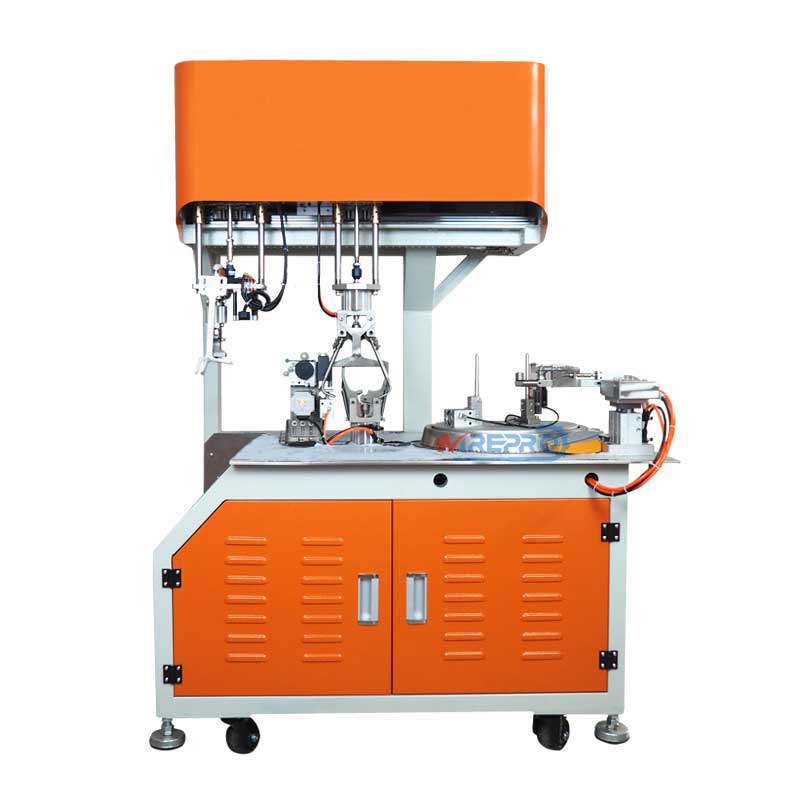

HB-AB81 cable coiling and automatic cable tie binding machine
Description
Technical Data
| Model | HB-AB8 |
| Finished Coil Type | 8 shape |
| Available Wire Dia | ≤ 10mm |
| Winding Inner Dia | 80-180mm |
| Bundling Diameter | < 45mm |
| Reserved Head Length | ≤ 150mm |
| Reserved Tail Length | ≤ 150mm |
| Tying Wire Materials | Plastic or rubber coated iron core wire |
| Production Rate | ≤ 1200 pcs/h |
| Power Supply | 110/220VAC,50/60Hz |
| Air Connection | 0.4-0.55MPa |
| Dimensions | 110* 72 * 160 cm |
| Weight | 120kg |
Application
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
Get Details & Price Now
If you hope to inquiry just this product, please send a message here. If you hope to inquiry several products, please Add To Quote, quote all products on the Request Quote page.
WIREPRO will send quotes back to you ASAP : ）
