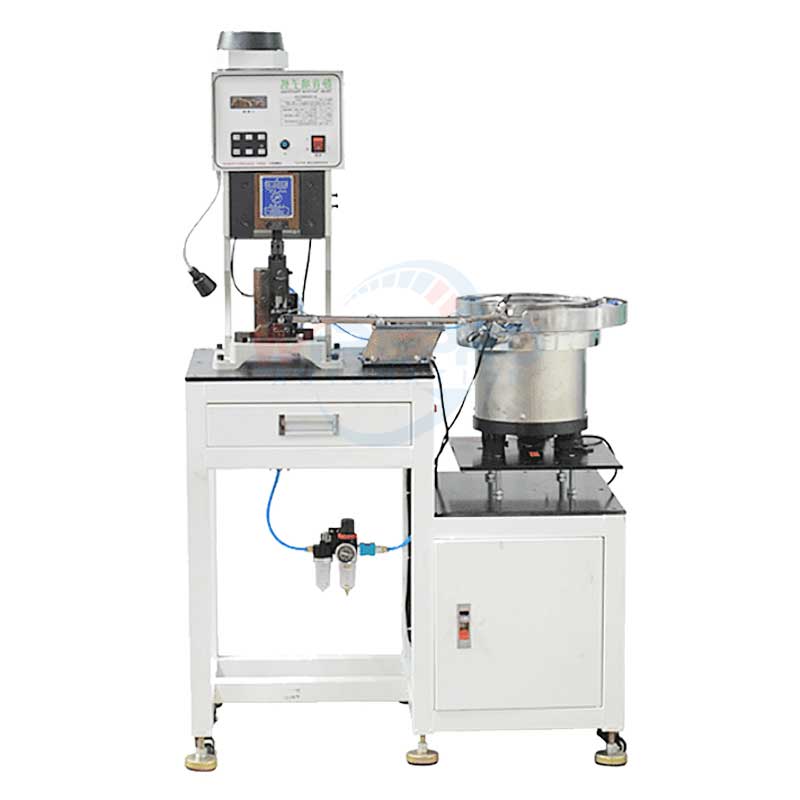

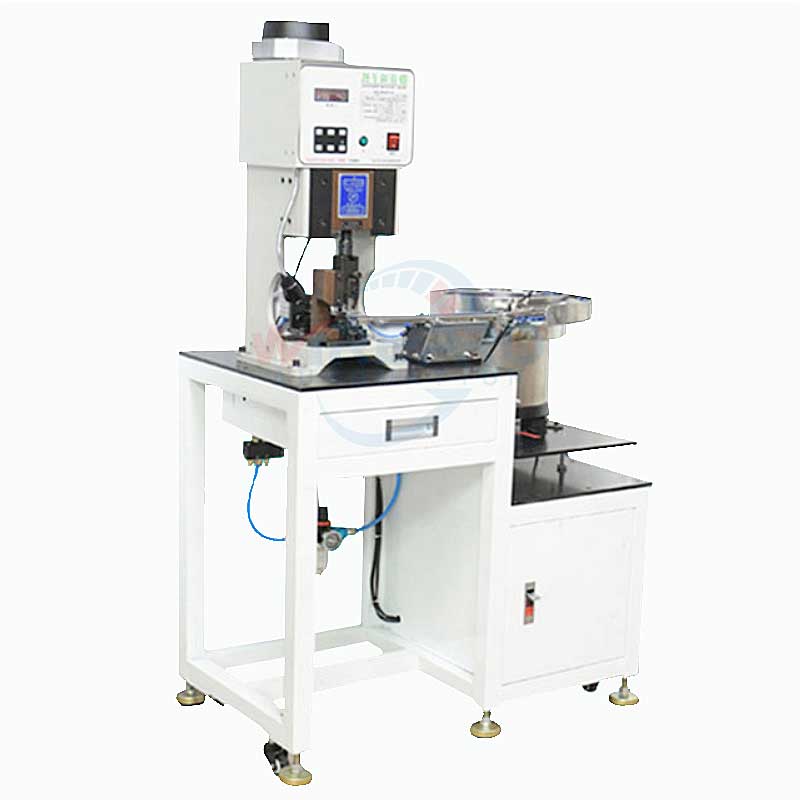

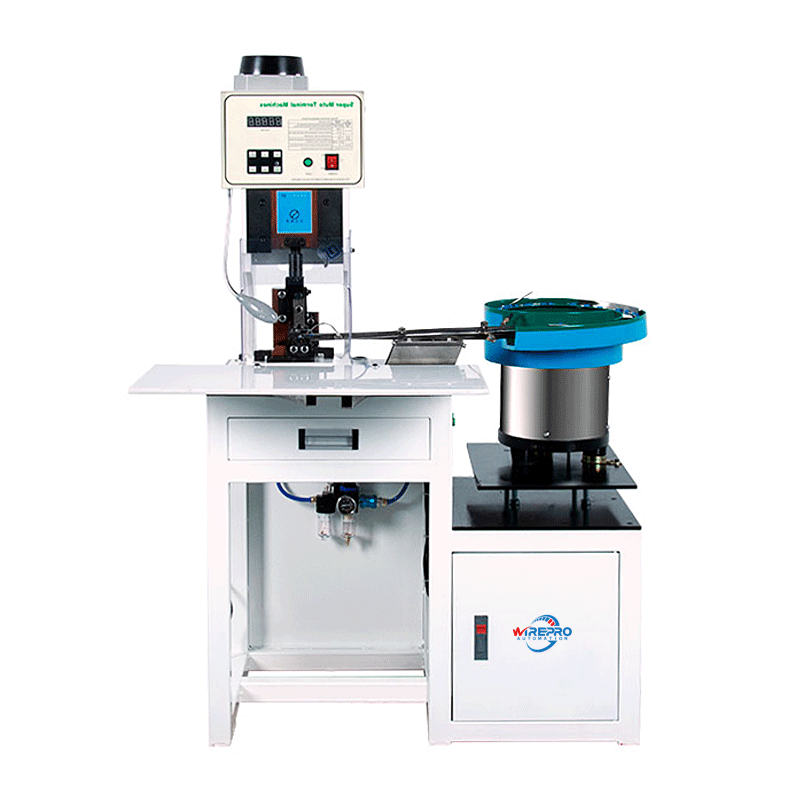

Model: TU-C02 TU-C03
The TU-C02 TU-C03 is specially designed for loose-packed terminals.

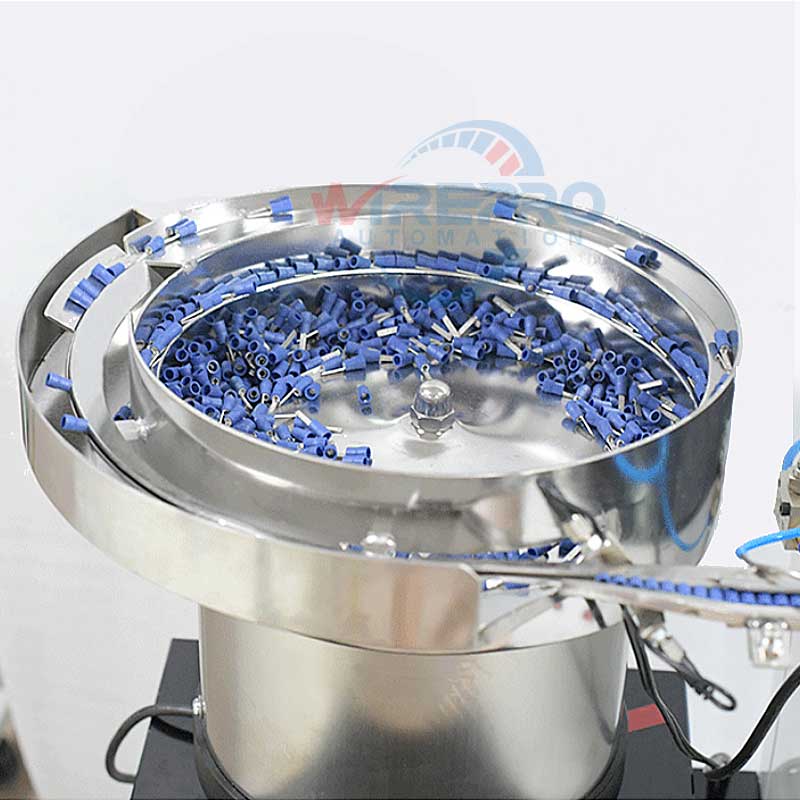

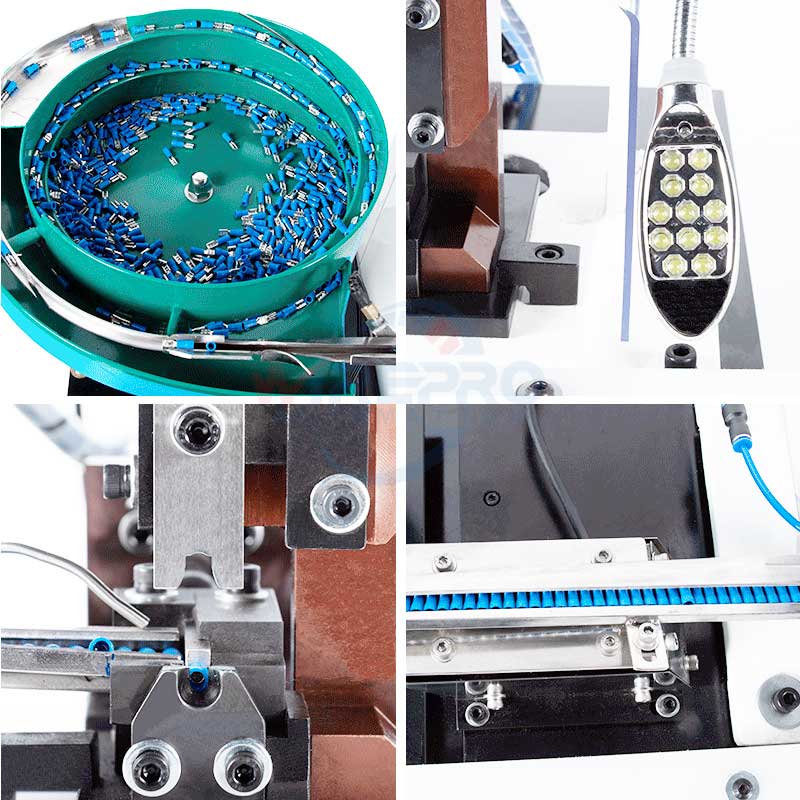

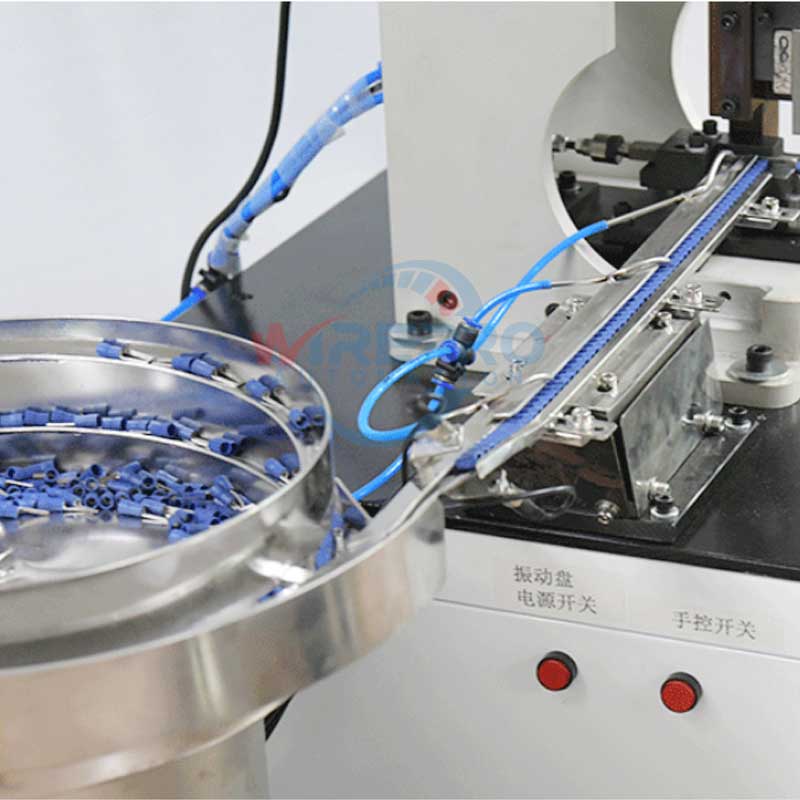

This machine can feed bulk terminals to the crimping applicator automatically thanks to the vibration plate. The vibration plate is customed based on different terminals, it can automatically arrange and feed the terminals. The feeding speed of regular terminals is 60~70 pcs per minute. The speed is 3000-4000 pcs per hour.
The TU-C02 TU-C03 is specially designed for loose-packed terminals.
This machine can feed bulk terminals to the crimping applicator automatically thanks to the vibration plate. The vibration plate is customed based on different terminals, it can automatically arrange and feed the terminals. The feeding speed of regular terminals is 60~70 pcs per minute. The speed is 3000-4000 pcs per hour.
TU-C02 crimping force is 2T.
TU-C03 crimping force is 3T.
Features:
1. The operating speed is comparable to reeled terminals, saving labor and cost, and having more cost-effective advantages.
2. High stability assuring a noise-free working environment.

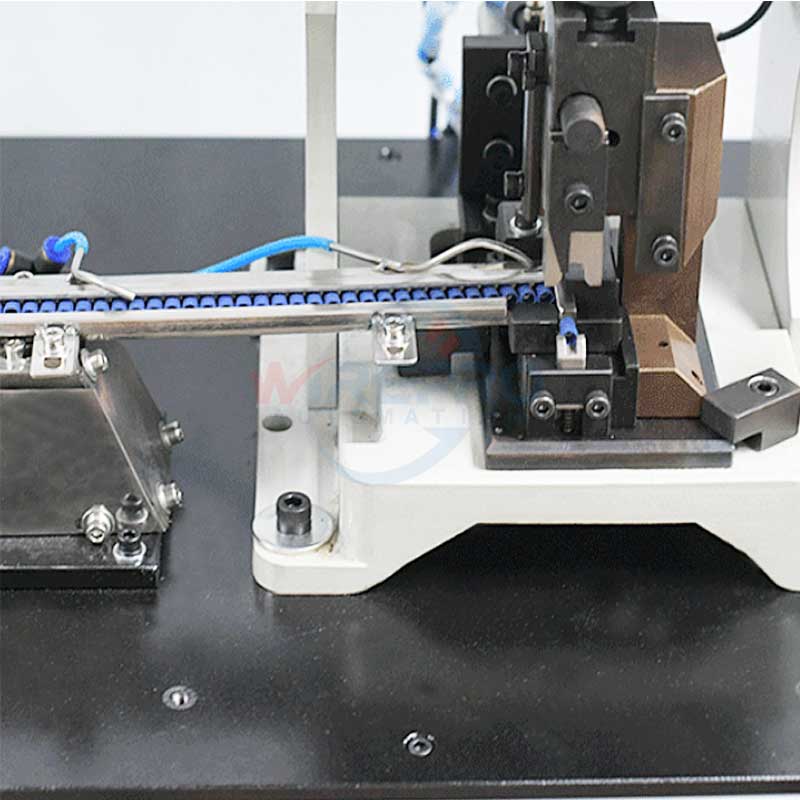

3. Based on the universal terminal crimping machine, using an integration crimping mold, easy to disassemble.
4. The minimum number of moving parts to avoid wear and replacements, maximum torque, minimum vibration.
5. Replace expensive chain terminals and use more economical loose terminals.
6. When necessary, it can be used as a separate silent terminal machine, suitable for 800#, 2000# straight, and horizontal applicators.
| Model | TU-C02 | TU-C03 |
| Crimp Force | 2Ton | 3Ton |
| Function | Terminal automatic feeding and terminal crimping | |
| Stroke | 30mm (custom available) | |
| Power Supply | 110/220VAC,50/60Hz | |
| Power | 550W + 120W | 750W + 120W |
| Weight | 150kgs | 165kg |
| Dimensions | 45*140*75 cm | 45*140*75 cm |
Cable lug terminal crimping samples
