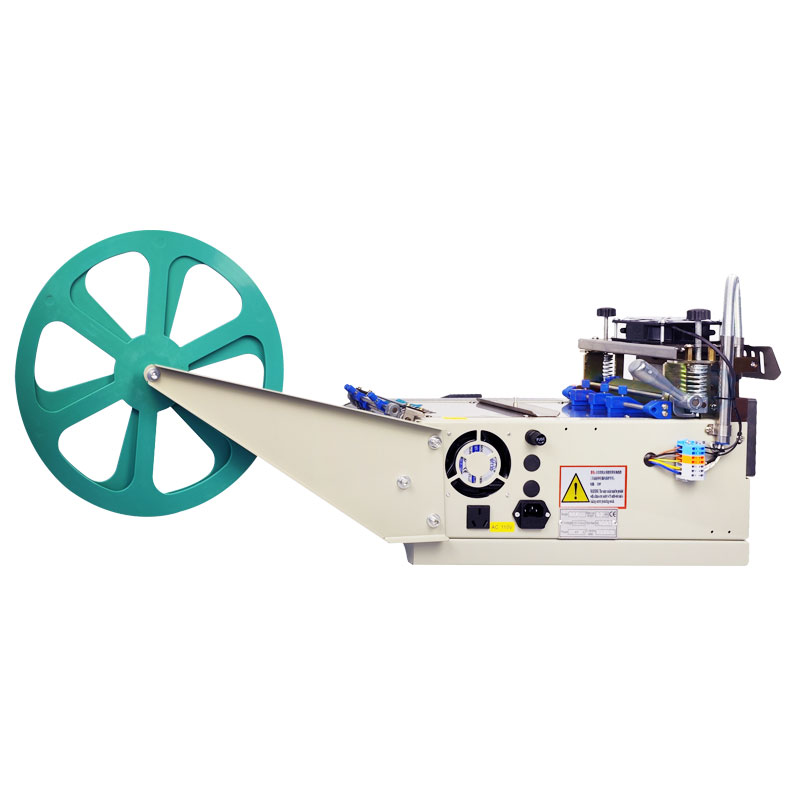

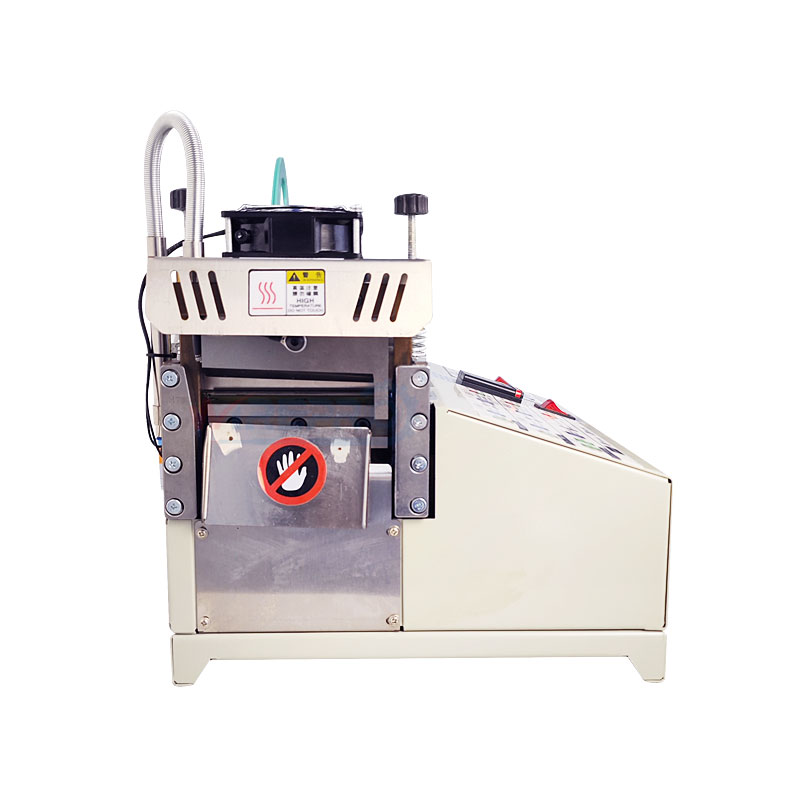

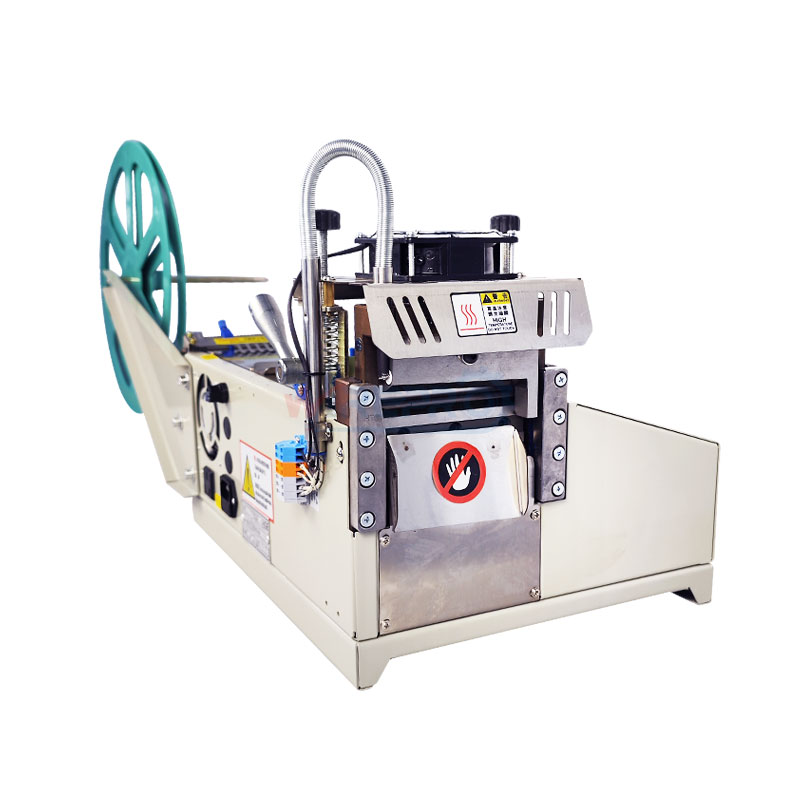

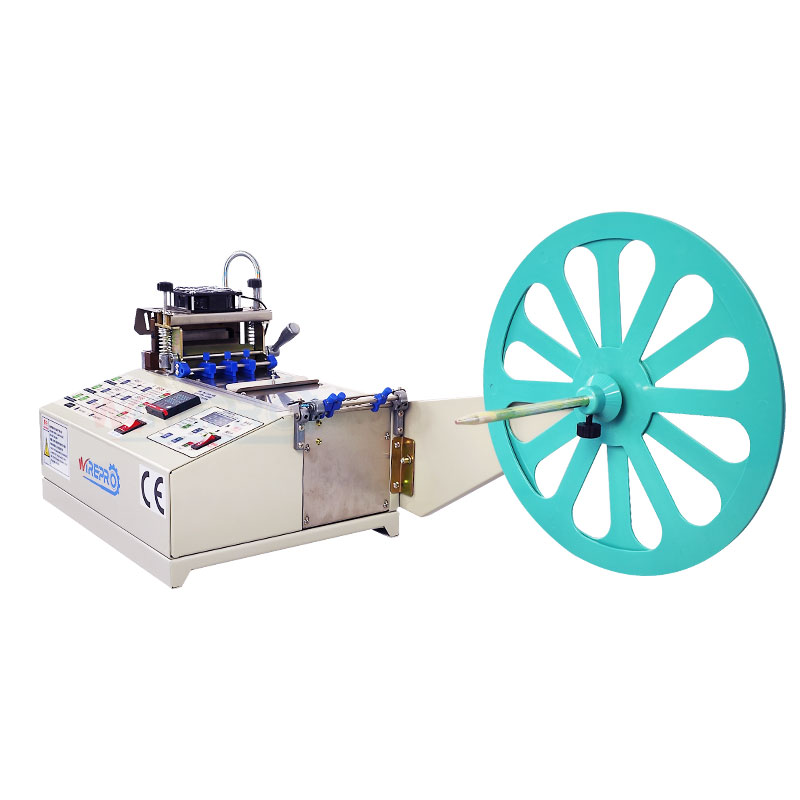

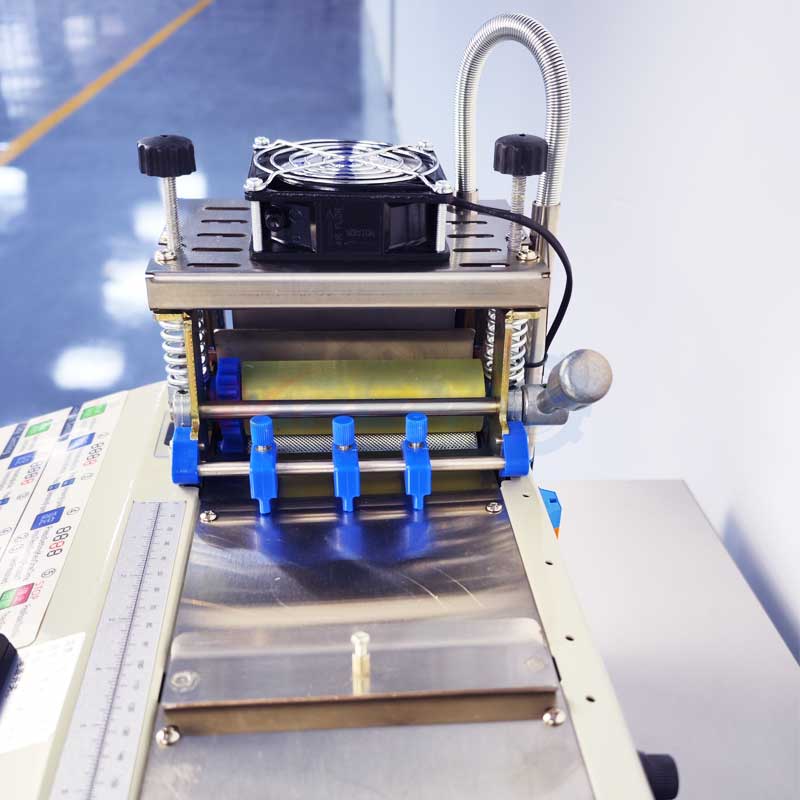

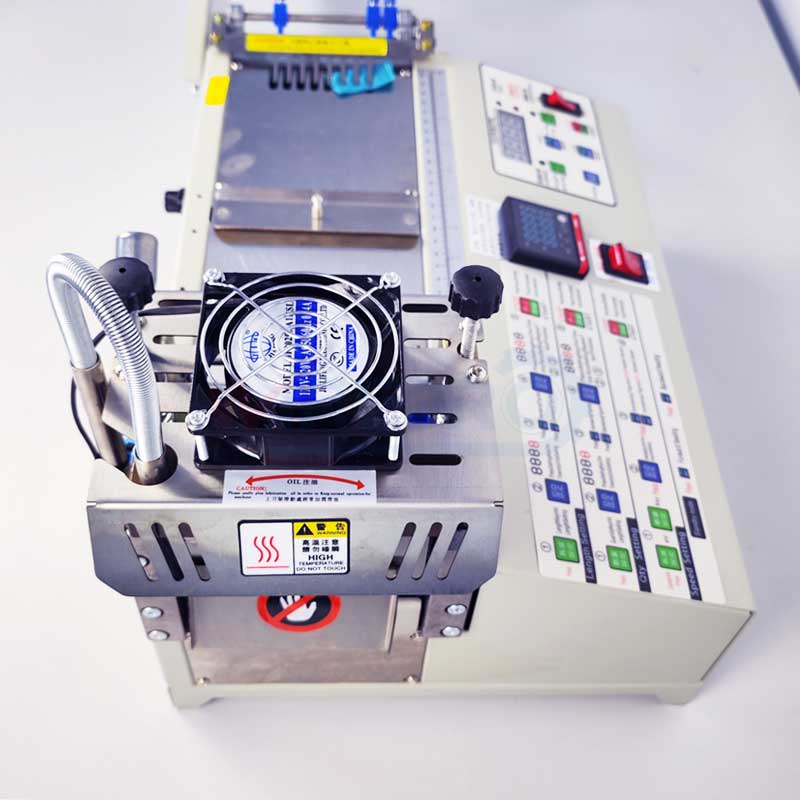

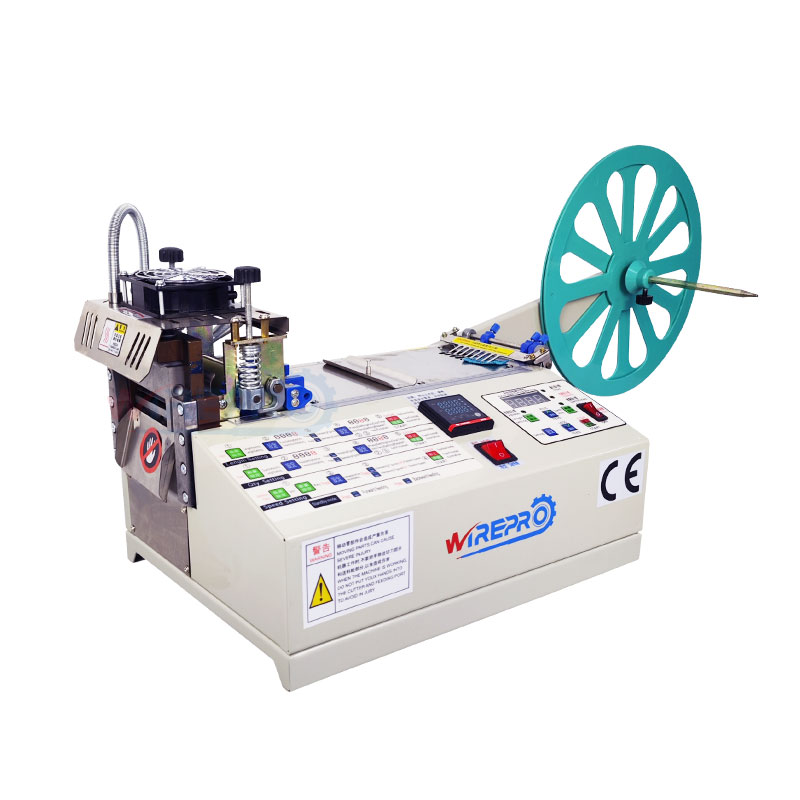

CH-105 Automatic desktop cold and hot harness expandable braided sleeving cutting machine

Model: CH-105

Cold and hot cutting blade, you can set the blade temperature when cutting. It’s good for materials that need a hot-cutting sealing edge.

Description

The fully automatic computer tape-cutting machine is a hot and cold dual-purpose cutting machine with electromechanical integration.

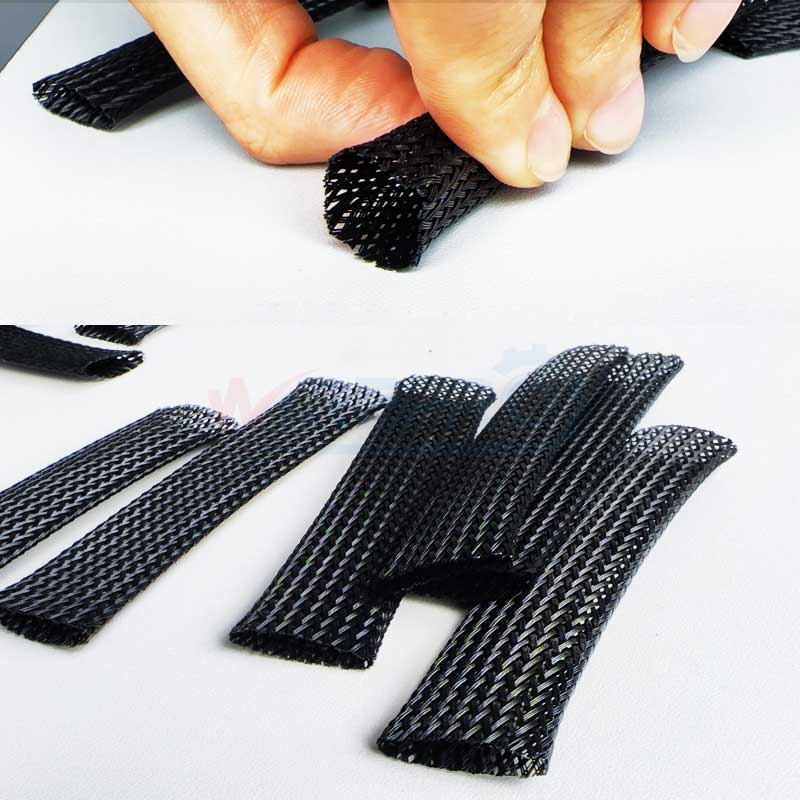

1. It can automatically cut different materials for different widths and lengths, like expandable braided sleeving, hook loop fasteners, plastic hoses, shoelaces, and others.
2. The length calibration function, which is designed according to the cutting material, can bring higher length accuracy.
3. Equipped with a heating device, it can heat seal nylon braided tapes, other types of nylon tapes, cold cutting, and hot cutting without changing the cutter.
4. Automatically save all the data currently set before the switch is turned off, you can use them next time directly
5. Machine will automatically stop working when there is no material
This machine has the characteristics of high precision, fast speed, flat-cutting cross-section, and simple operation. It is your first choice for improving production efficiency, improving product quality, and saving labor.

Video:

Technical Data

Model CH-105
Application Cold and hot cutting
Available Width 95mm
Available Thickness 12mm
Cutting Length 1-100000mm
Length Tolerance ±0.01*L ( based on cutting material)
Knife cold knife/hot blade (support max about 350℃)
Power Supply 220/110V,50/60Hz
Power 600W
Speed 120 pcs/min
Dimensions 40*35*45cm
Weight 25kgs

Download

If you wish to have the datasheet of this or other products, you can let us know here: CONTACT

Or email to [email protected], we will send you the machine introduction.
