Model: SU-016C SU-030C
Automatic cutting stripping winding and bundling

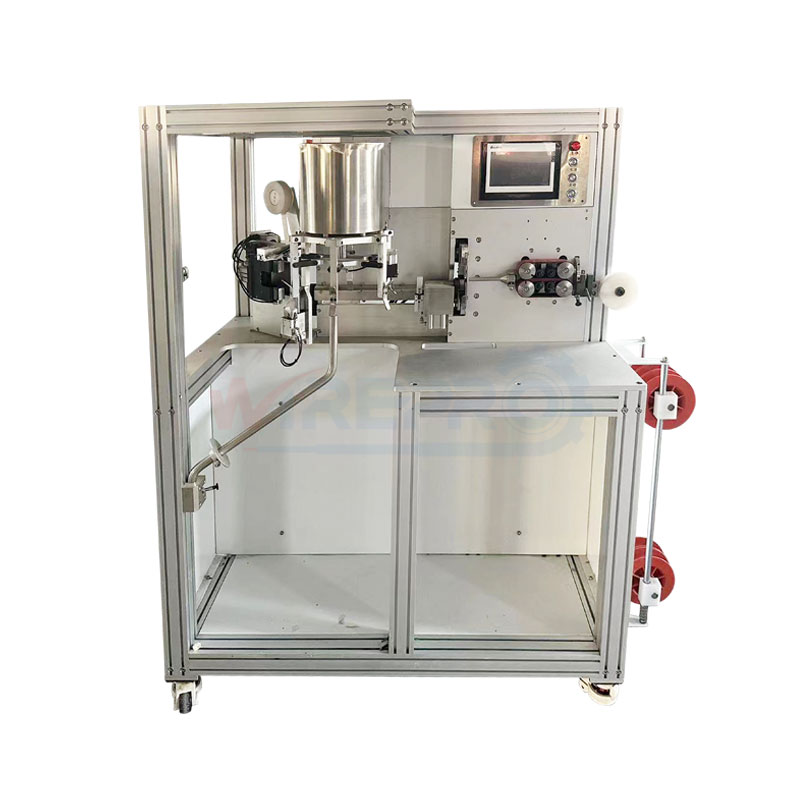

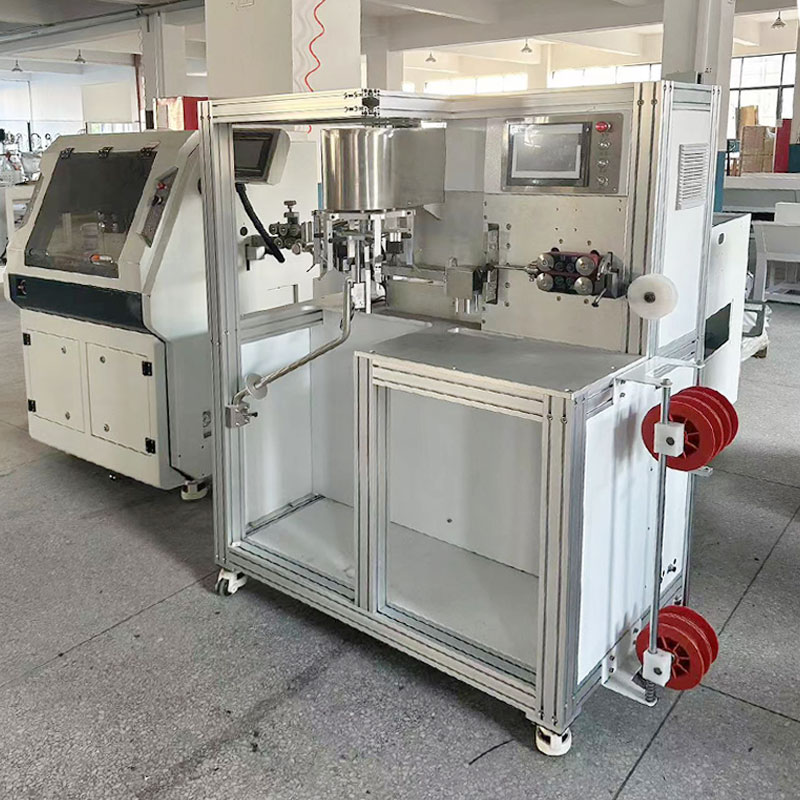

SU-016C SU-030C Automatic cable cutting stripping and winding tying machine
Description
The SU-030C is a machine based on SU-030, SU-030 add a winding and tying function. This series machines are designed for full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, high power supply shielding cable, charging pile harness. It’s good for Silicone wire, high-temperature wire and signal wire, etc.
1. Processing cable below 30 sqmm, improving working efficiency
2. Long stripping length than normal machines
3. Belt feeding cable, no embossing, no scratches
4. Automatically identify the machining center, increase the production rate
5. Uses specific axial positioning and advanced tool holders, improving accuracy and production rate.
6.Digitally Display Screened cutting wire diameter, high-quality pneumatic components, more energy-saving, and work stably.
7. Optional auxiliary equipment: automatic wire feeder, wire stacker or coiler etc.
Video
Technical Data
| Model | SU-016C | SU-030C |
| Conductor Cross-Section | 0.75-16mm² (stranded wire) | 1-30mm² (stranded wire) |
| Conduit Diameter * | Φ12mm | Φ16mm |
| Cutting Length | 1-99999mm | 1-99999mm |
| Cutting Length Tolerances | ≤(0.002*L) mm | ≤(0.002*L) mm |
| Stripping Length * |
Full stripping Head 1-60mm; Tail 1-60mm (based on wire) |
Full stripping Head 1-190mm; Tail 1-80mm (based on wire) |
| Winding Diameter | 260mm( can custome) | 260mm( can custome) |
| Winding Length | Based on the wire, like Dia 7mm, length 20m | Based on the wire, like Dia 7mm, length 20m |
| Bundling Materials | Tape | Tape |
| Display Screen | 7-inch touch screen | 7-inch touch screen |
| Wire Feed Method | Belt feeding | Belt feeding |
| Power Supply | 220V/110V | 220V/110V |
| Power | 3000W | 4000W |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||
Application
The series machines are designed for full-automatic cut and strip big size cable.
