Model: TA-D01
This series machine is a fully automatic two-ends wire cutting stripping and terminal crimping machine.

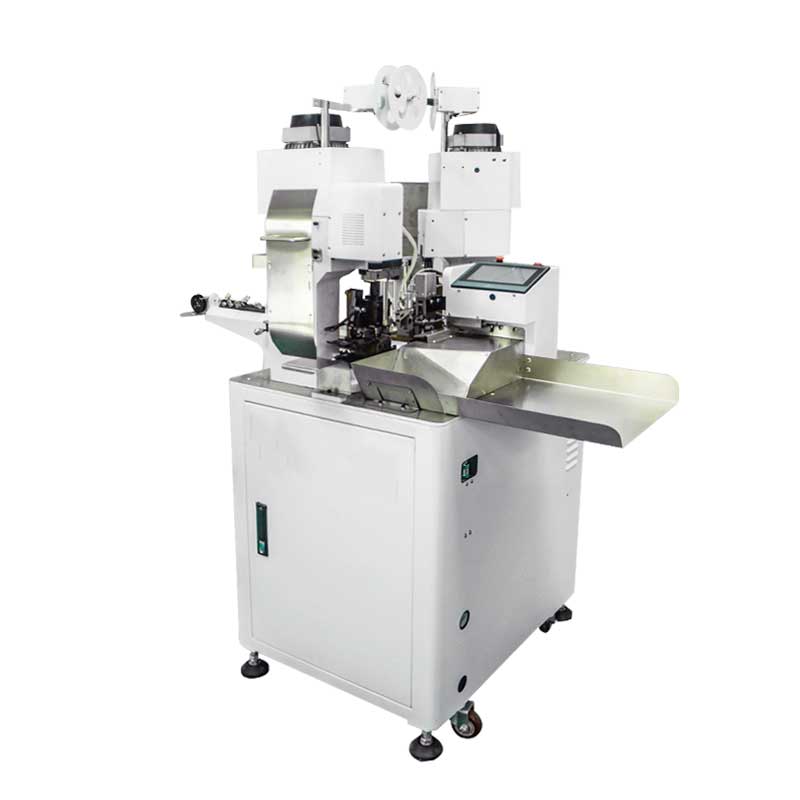

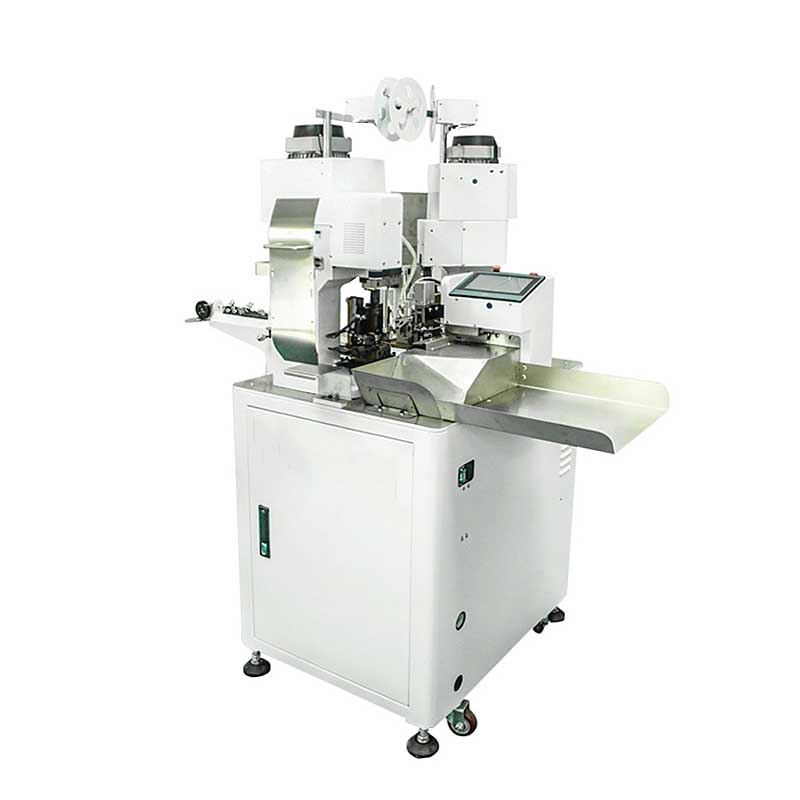

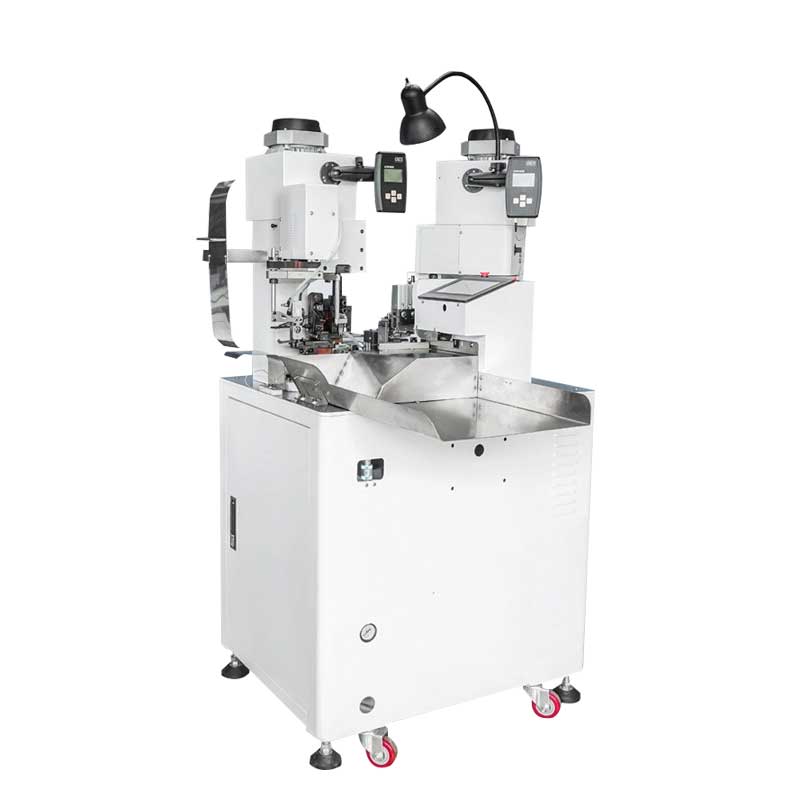

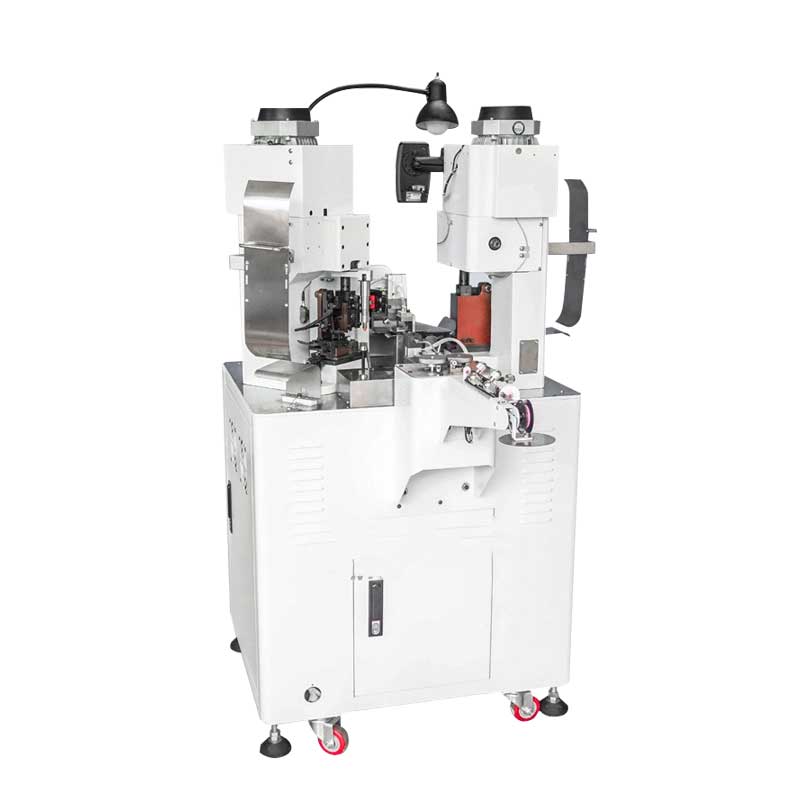

TA-D01 Auto two ends wire cut strip terminal crimping machine
Description
This serie machine is a fully automatic two-ends wire cutting stripping and terminal crimping machine.

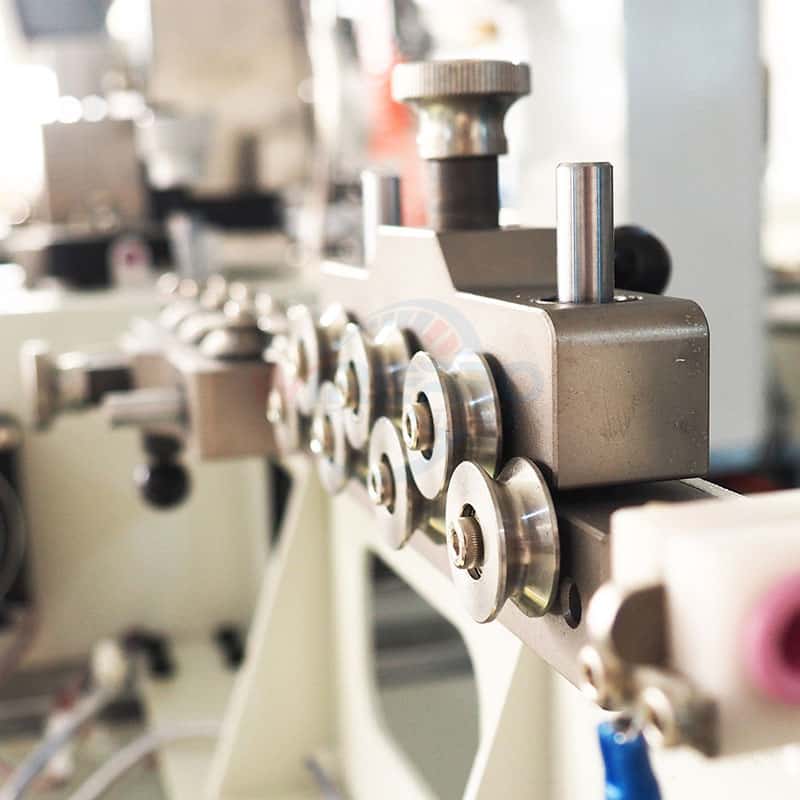

1. Dual motor feeding to avoid the wire length issue
2. Can be equipped with a horizontal and vertical applicator
3. Advanced software and touch screen technology, easy operate
4. Crimping parts with ultra-quiet, low noise, uniform intensity
5. Machine parts are special treated, sturdy-durable and stable
6. Can store settings parameter in a program, call it out easily next time
| Model | TA-D01 | TA-D02 | TA-D03 |
| Features | Regular | Small wire | Big wire |
| Available Wire Size | AWG18-28# | AWG20-32# | AWG12-26# |
| Cutting Length | 45-999mm | ||
| Length Tolerance | ±0.2%*L | ||
| Stripping Length | 0-10mm | ||
| Detection Device | Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection | ||
| Machine Production Rate | About 4000 pcs/h | ||
| Air Connection | 0.4-0.6MPa | ||
| Power Supply | 110/220VAC,50/60Hz | ||
| Power | 2300W | ||
| Weight | About 320kg | ||
| Dimensions | 120*60*200cm | ||
Fully automatic two-ends wire cutting stripping and terminal crimping machine.
