Model: CB-A04
The machine CB-A04 is designed for precision cutting long corrugated tubes. Can automatic pre-release tube and deliver the tube, achieving high accuracy cutting length.
CB-A04 All in one corrugated tube cut machine
Description
The machine CB-A04 is designed for precision cutting long corrugated tubes. The machines adopt belt traction and displacement sensor, automatic pre-release tube and deliver the tube, achieving high cutting speed and accuracy.
Feature:
1. Touch screen, PLC control, operation digitalization
2. Pre-release, pre-delivery, tube cutting efficient and accurate
3. Can custom splitting function
4. Integrated circuit, stable control, simple maintenance.

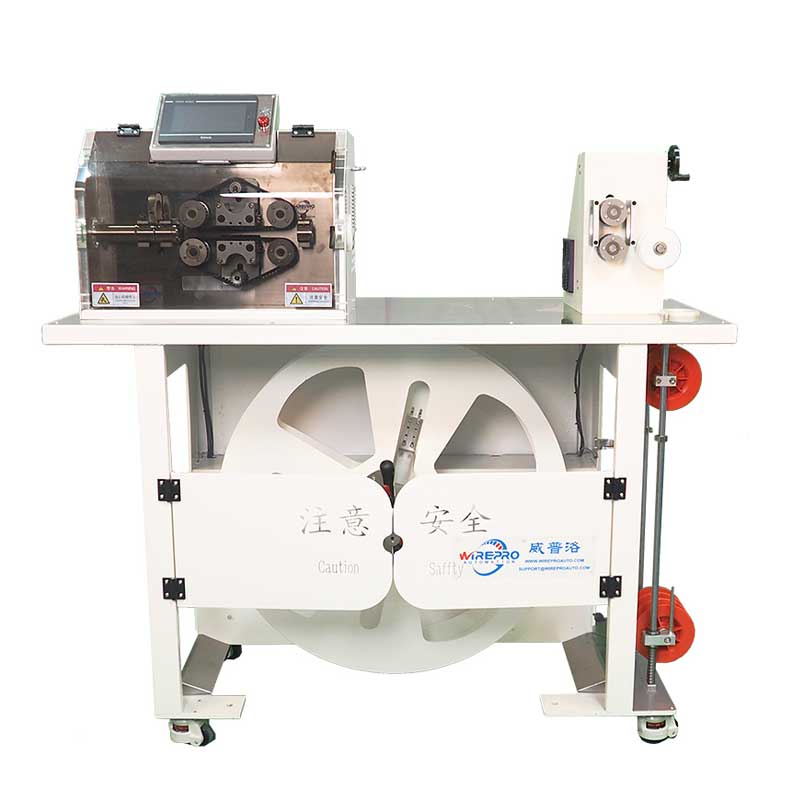

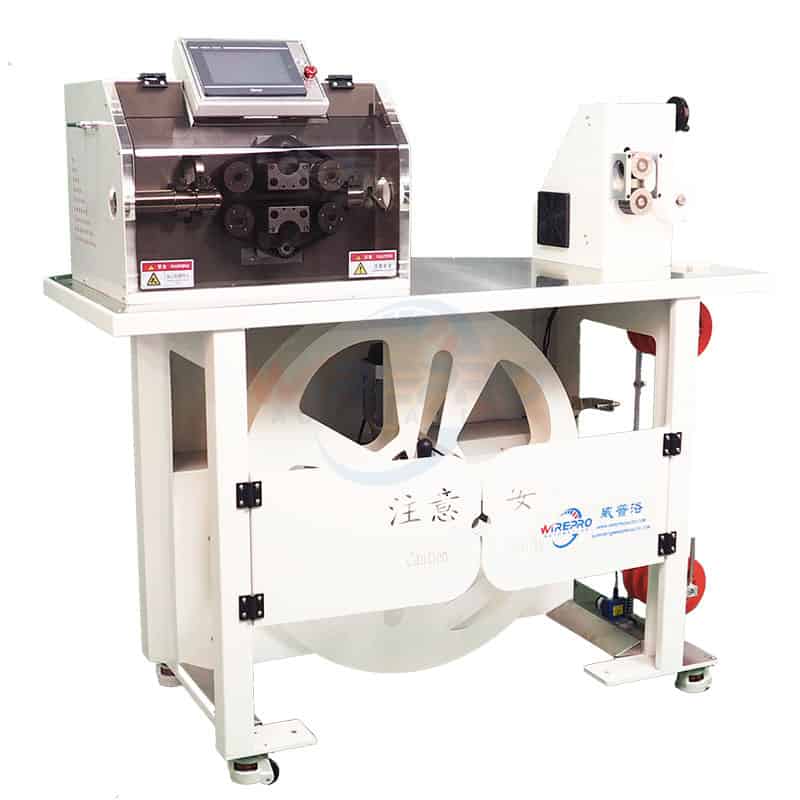

CB-A04 with feeding system corrugated tube cutting machine:
Technical Data
| Model | CB-A04 |
| Materials | For long tube |
| Feature | With feeder system |
| Available Diameter | 4-25mm (custom available) |
| Cutting Length | 10-9999mm |
| Cutting Speed | 10-60pcs/min |
| Power | 220/110V |
| Power Supply | 1100W |
| Dimensions | 140*67*140cm |
| Weight | 230kg |
Application
Precision-cutting long corrugated tubes. Automatic pre-release tube and deliver the tube.
Download
If you wish to have the datasheet of this or other products, you can let us know here: CONTACT
Or email to [email protected], we will send you the machine introduction.
