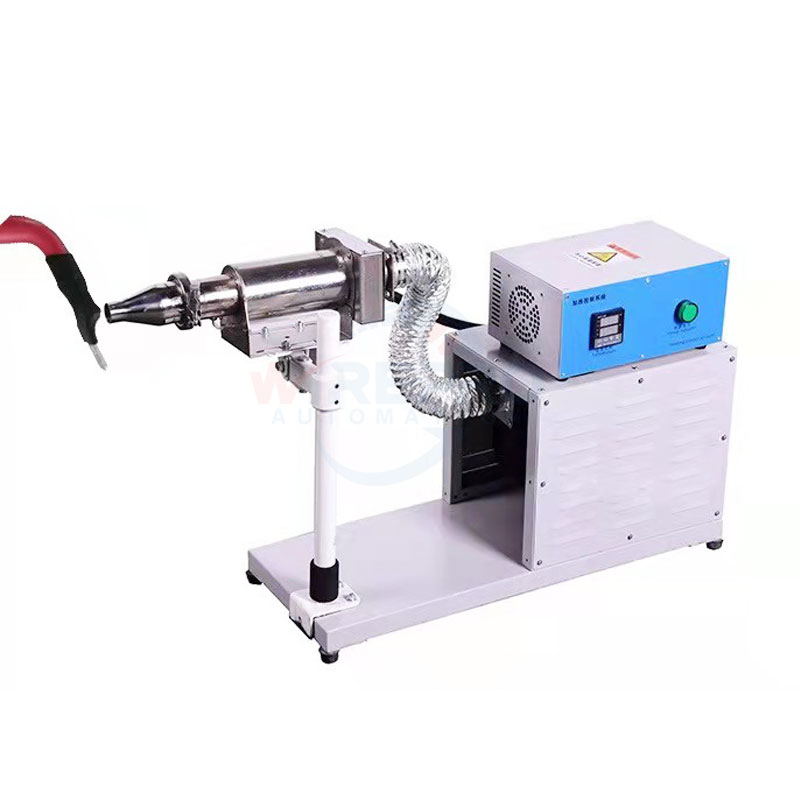

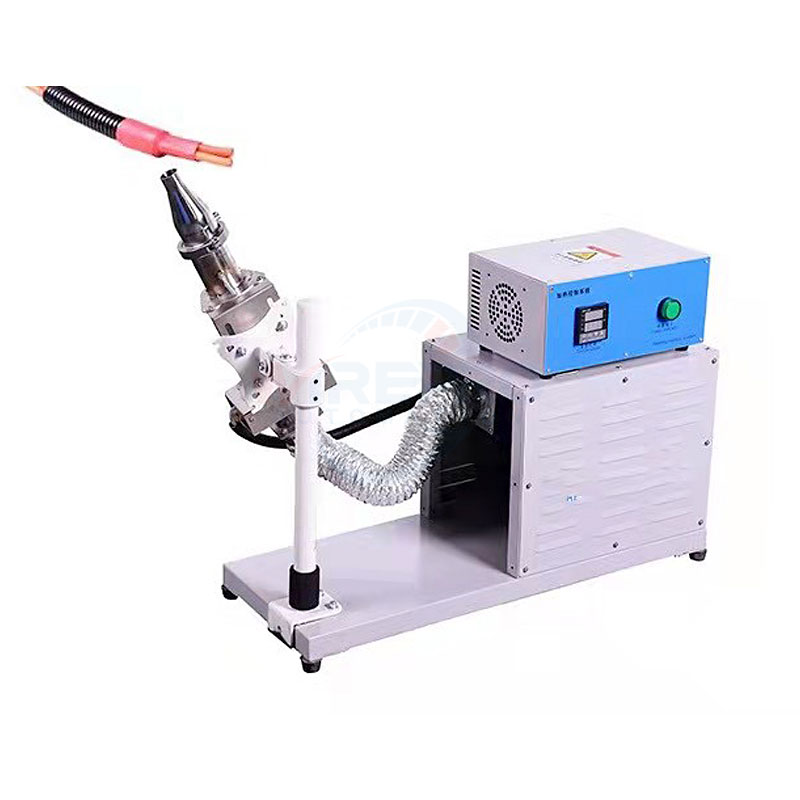

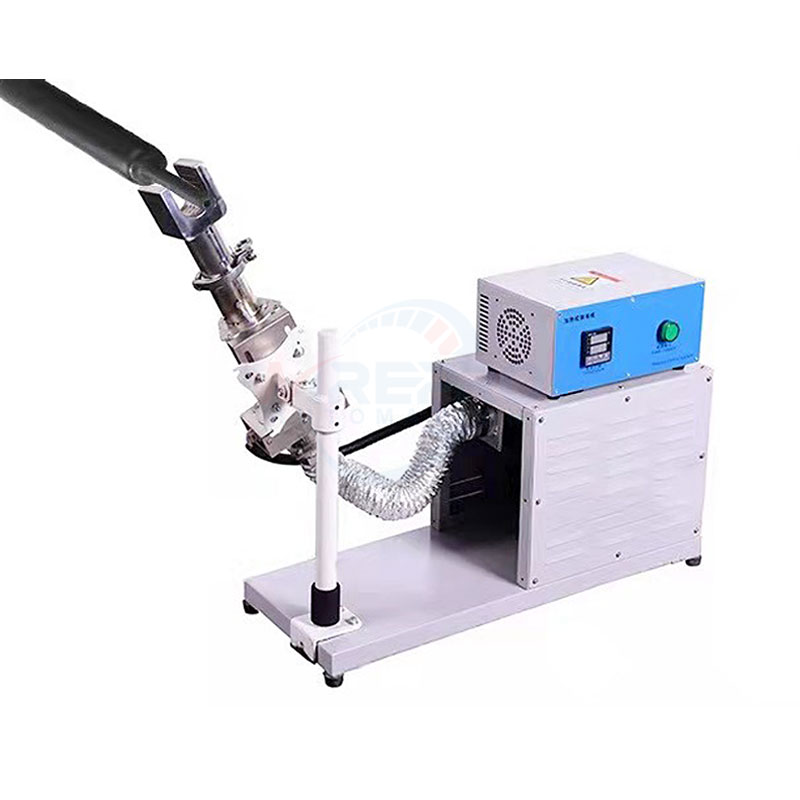

RG-A25 Adjustable air direction heat shrinkable sleeves shrinking gun

Model: RG-A25

The RG-A25 adjustable air direction heat shrinkable sleeves shrinking gun is an outlet direction adjustment heating machine. The air outlet has 360-degree rotation in all directions and is suitable for various working environments. It is especially suitable for installing on the assembly line.

Description

The RG-A25 adjustable air direction heat shrinkable sleeves shrinking gun is an outlet direction adjustment heating machine. The air outlet has 360-degree rotation in all directions and is suitable for various working environments. It is especially suitable for installing on the assembly line.

Features

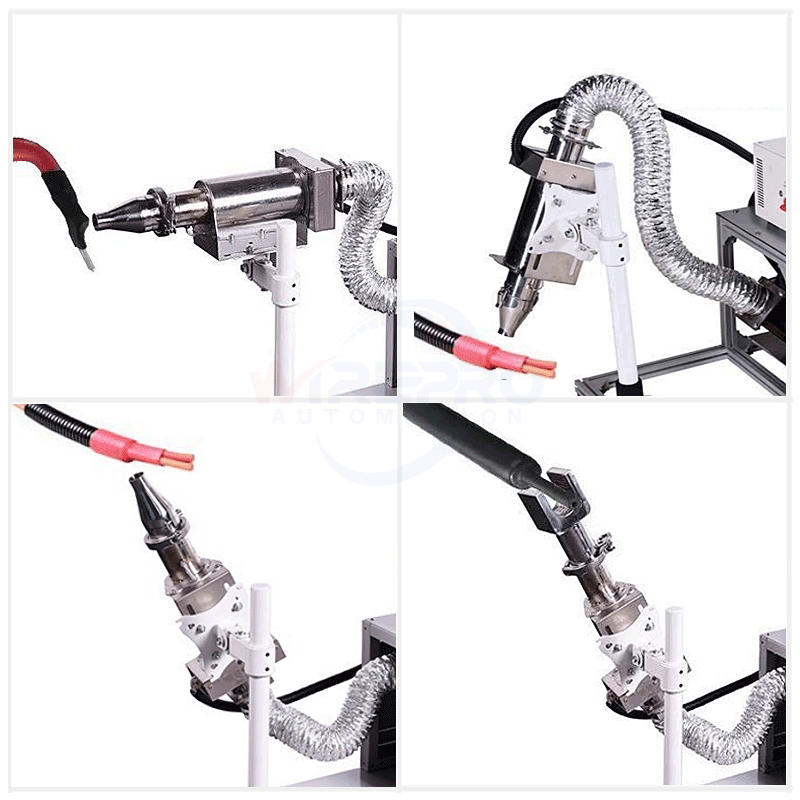

1. The air outlet has 360-degree rotation in all directions and is suitable for various working environments.
2. Adopting PID/SSR to control temperature, high control precision, sensitive and stable output.
3. Intelligent digital display temperature regulation, outlet with temperature sensor, can adjust the temperature according to need. The temperature is controlled precisely at + 1℃. The maximum use temperature is 395℃.
4. Double layer heat insulation and sturdy double stainless steel shell, it is safe and reliable, can keep high-temperature work for a long time.
5. High heat exchange efficiency, the ingenious design of wind tunnel let the air uniformly through the inside and outside of the helical heating wire. Heat exchange near 100%, the loss of wind pressure is less.
6. It has overheating overload protection, power cut protection device, fully guarantee the safety of the equipment, do not produce exhaust gas, and meet environmental protection.

Technical Data

Model RG-A25
Air outle diameter U shape and round shape for choise, 50mm 25mm
Insulation layer material Multi-fiber thermal insulation cotton
Heater    Heating wire
Heater power 3KW
Heating wire life 10000h
Power regulation Adjust the voltage through a potentiometer
Blower power 50W
Max air volume 138M3/H,the actual air volume is about 80M3/H
Static pressure 218pa
Max working temperature <350℃ (temperature control ±2℃)
Power supply 220V
Power 3050W
Weight 15KG

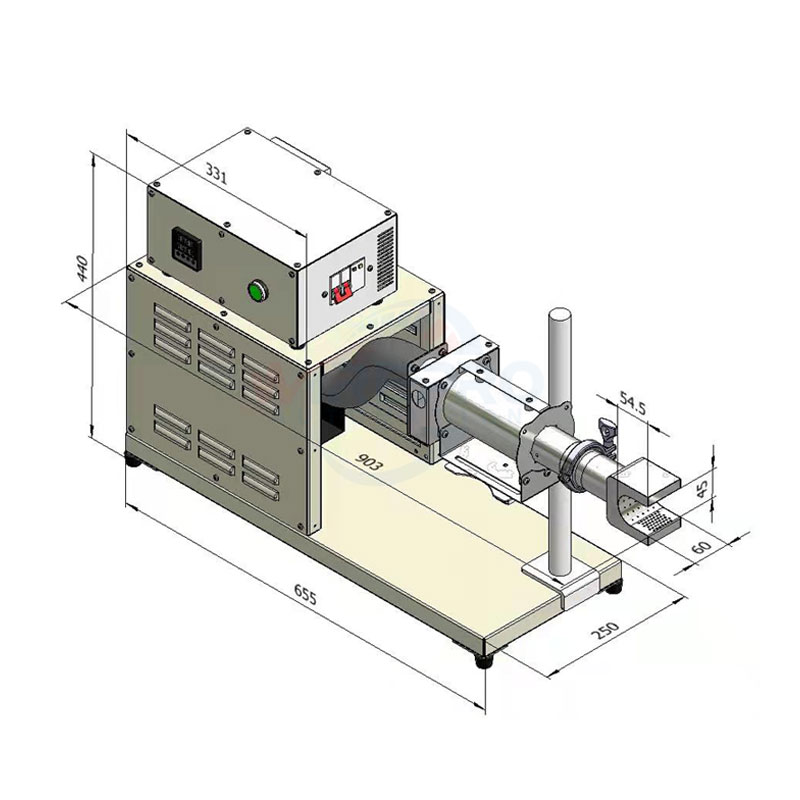

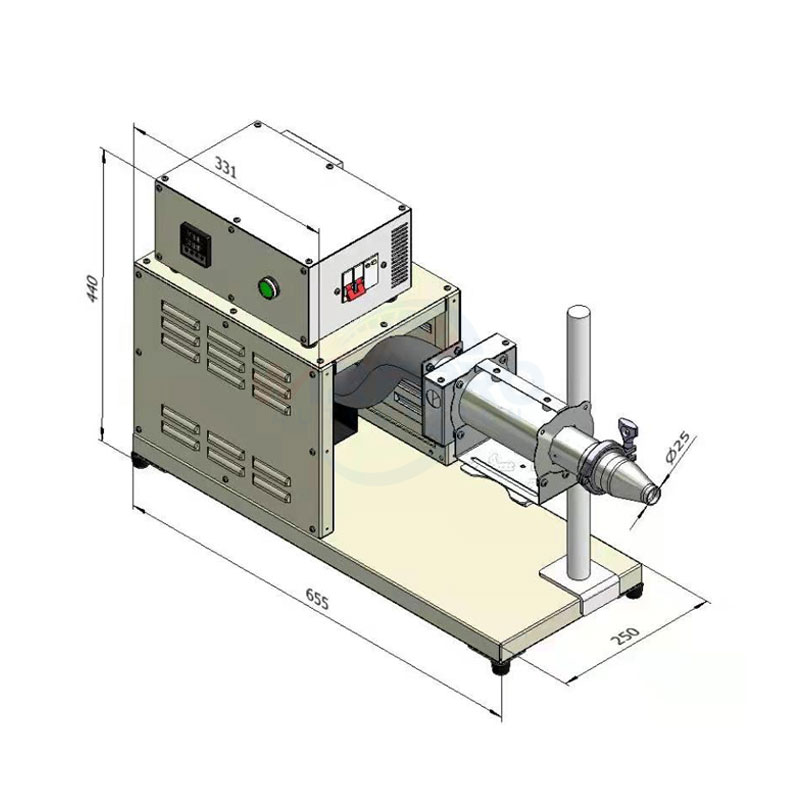

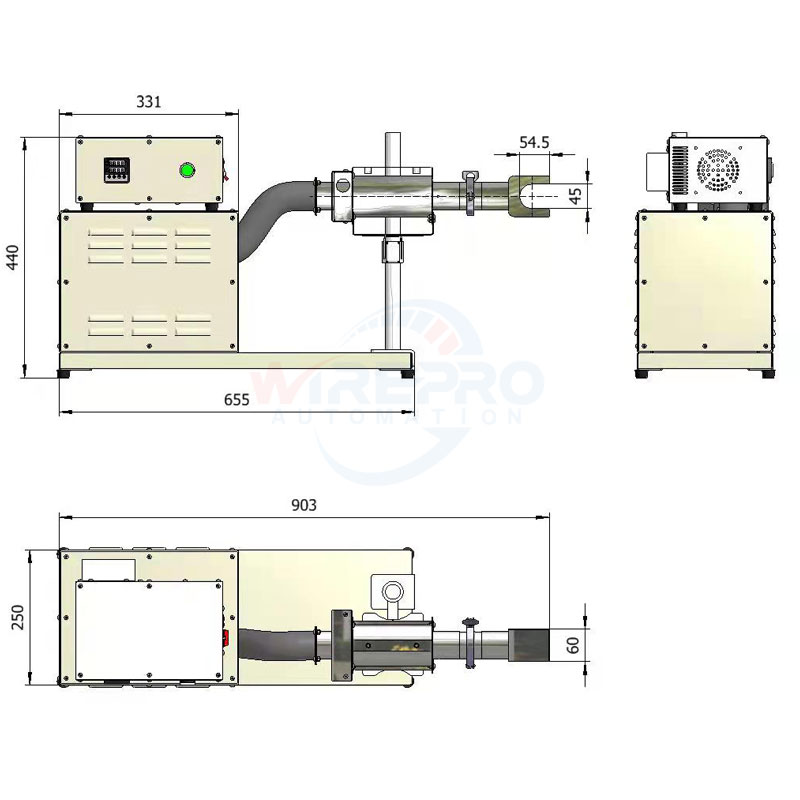

Dimension 65*44*24cm

Application



Download

If you wish to have the datasheet of this or other products, you can let us know here: CONTACT

Or email to [email protected], we will send you the machine introduction.
