Model: TU-N06, TU-N08
This series semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator.

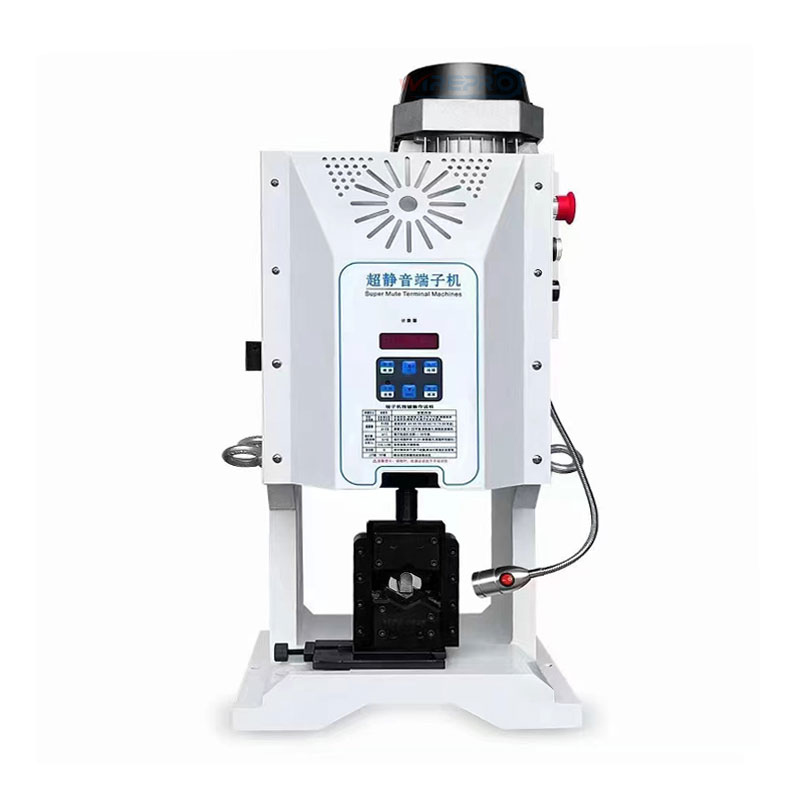

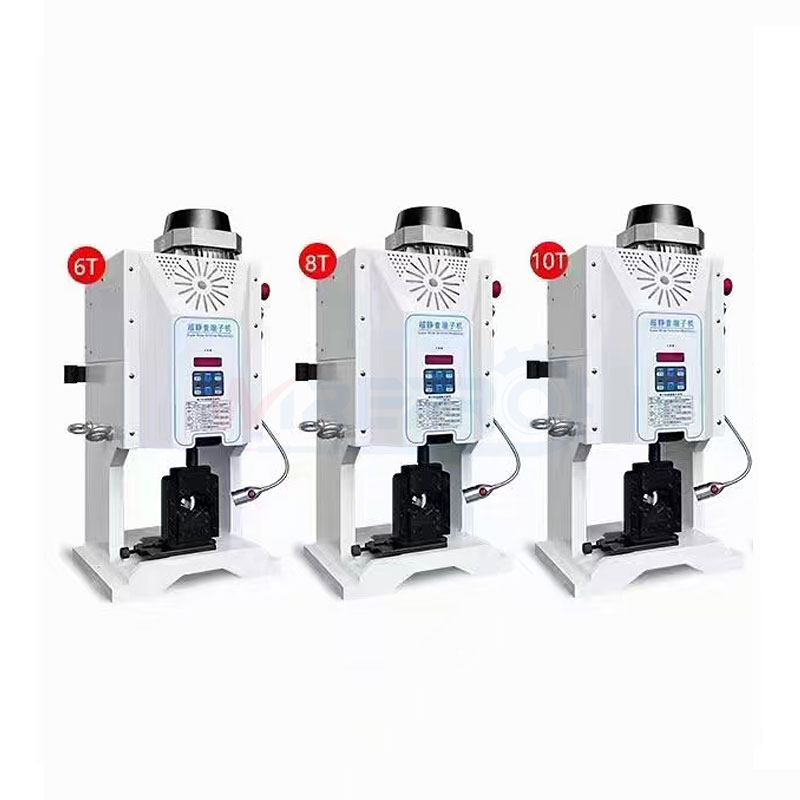

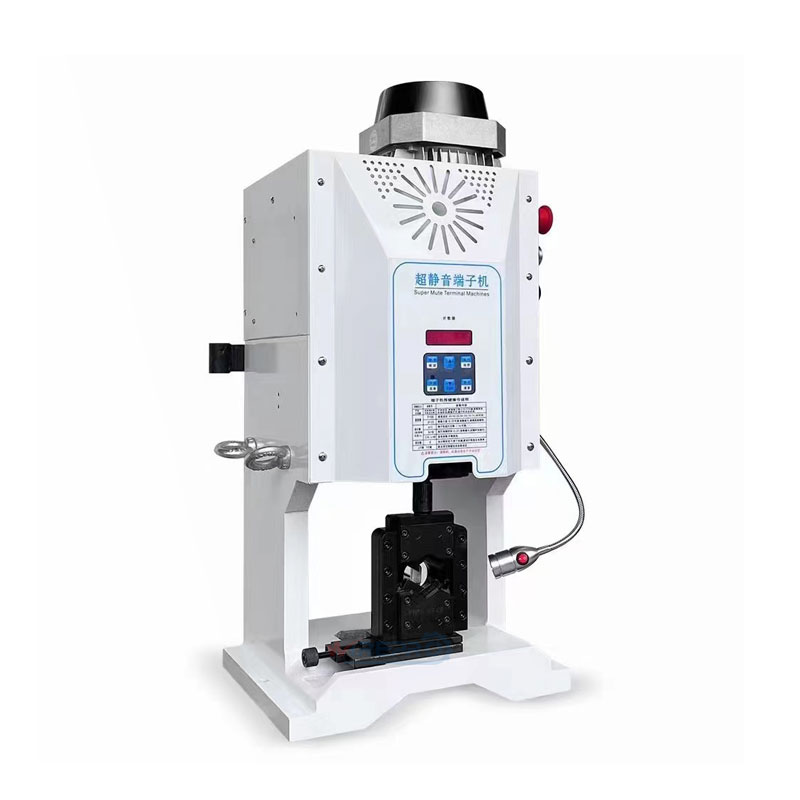

TU-N06 TU-N08 6T 8T cable lug thick copper terminal crimp machine
Description
This series of semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator. Suitable for crimping computer terminals, DC terminal, AC terminal, single grain terminal, joint terminal etc.
Features:
1. Built-in frequency converter, high production rate and low noise
2. Crimping dies designed according to your terminal
3. Production rate is adjustable
4. Support manual mode and an automatic mode, easy to change
5. LED display shows crimped terminals quantity
Different sizes of wires and terminal thicknesses require crimping machines with different crimping force
Semi-automatic crimping machine video
Technical Data
| Model | TU-N06 | TU-N08 |
| Crimp Force | 6.0Ton | 8.0Ton |
| Stroke | 30mm (custom available) | |
| Power Supply | 110/220VAC,50/60Hz | |
| Power | 2200W | 3000W |
| Weight | 140kg | 145kg |
| Dimensions | 30*30*82cm | 30*38*82cm |
Application
Wire stripping and ring terminal crimping
