Model: SU-B35
It is designed for max 35 mm2 fully automatic cutting & stripping & bending.
Simple to operate, durable, and cost-effective.

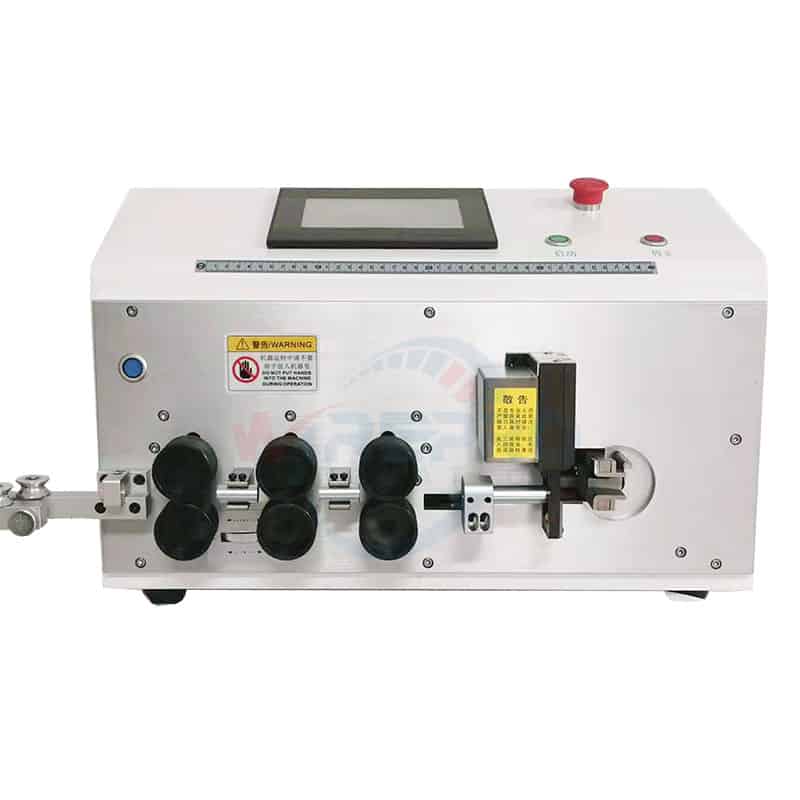

SU-B35 35mm2 Automatic electric cable stripping bending machine
Description
This series machine is used for cutting, stripping, and bending hard wires. Support two wire ends stripping and different shapes bending. Suitable for the jumper wire of the electric control cabinet, bending wire of the meter box, forward and reverse jumper wire of the contactor, table box, watch cabinet and other hard wires that need to be bend and stripping etc.
1. Support almost arbitrarily adjust angle and bending length
2. Excellent bending consistency, and eliminate manual operation error
3. Automatic stripping and bending, improve work efficiency
4. Equip with Shangyin linear slide, precision pneumatic pressure roller, more precision, more complete functions.
Automatic electric cable stripping bending machine video
Technical Data
| Model | SU-B25 | SU-B35 |
| Conductor Cross-Section | 2-25mm² | 4-35mm² |
| Stripping Length | Head 0.1-35mm; Tail 0.1-30mm | Head 0.1-35mm; Tail 0.1-30mm |
| Cutting Length | 0.1-99999.9mm | |
| Cutting Length Tolerances | ≤ (0.002xL)mm | |
| Bend Shape/Angle | Shape U, Z, clockwise, counterclockwise bend, 30°,45°,60° and 90°. | |
| Bending Number | Max 10 Segment | |
| Display Screen | Chinese / English touch screen | |
| Production Rate | 800-1500 pcs/h | |
| Power Supply | 110/220VAC, 50/60Hz | |
| Power | 800W | 900W |
| Drive Method | 6 wheels drive | 6 wheels drive |
| Dimensions | 60*55*45cm | 60*55*45cm |
| Weight | 85kgs | 90kgs |
Application
For wire cutting stripping bending
