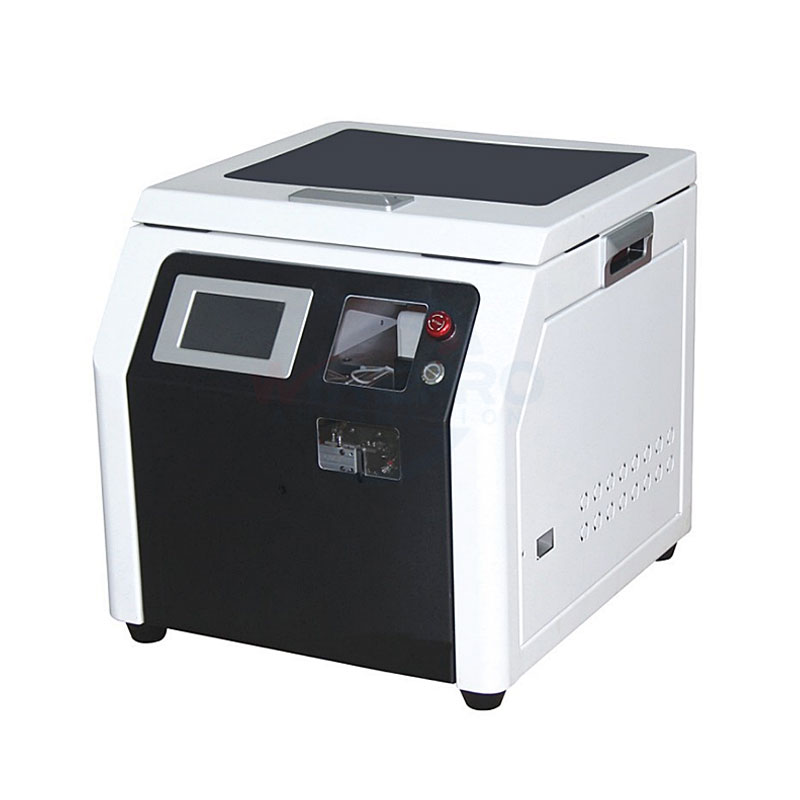

Automatic bootlace crimper

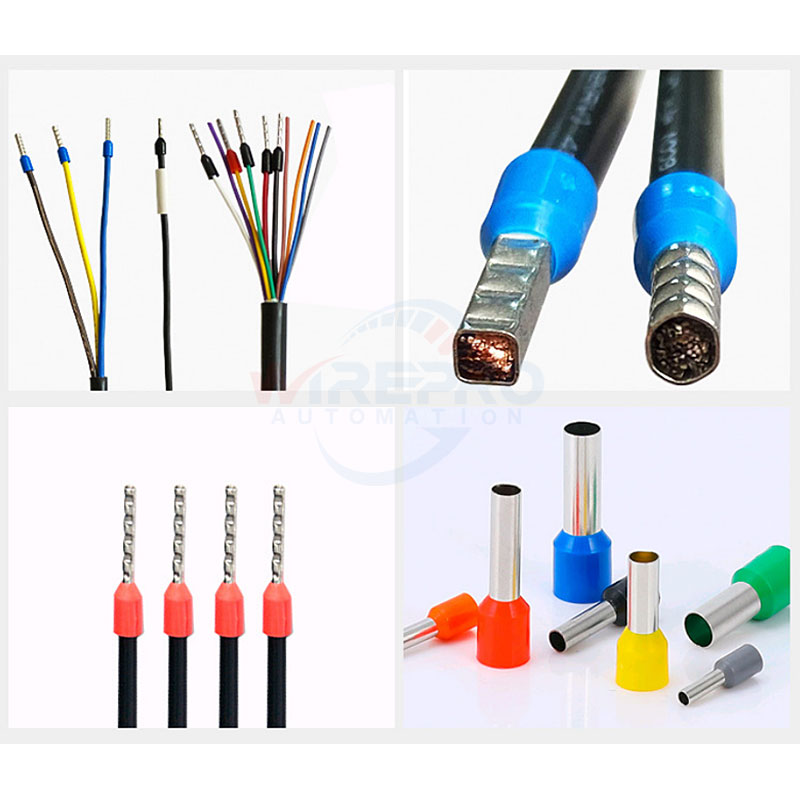

This wire stripping twisting and ferrule crimping machine, It is suitable for crimping a variety of loose tubular terminals onto cables, twisting function to prevent loose conductors when crimping, and Not need to change crimping dies for different size terminals.

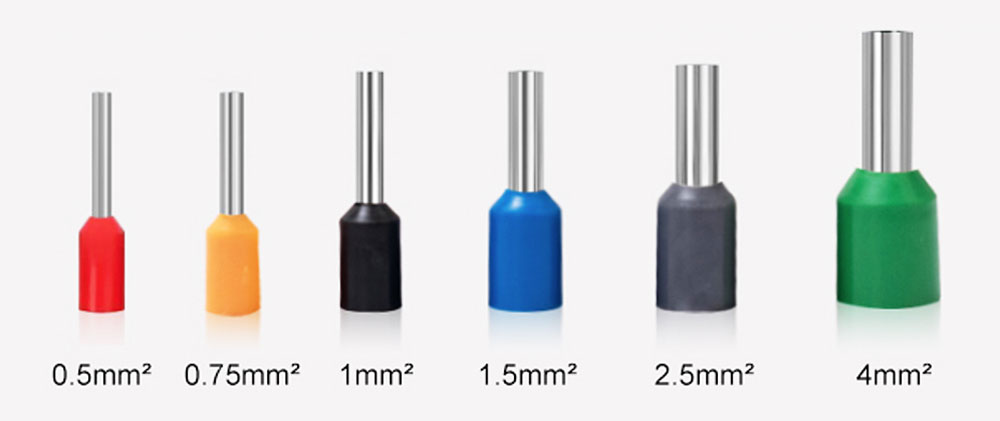

Stripping, piercing terminals, and crimping terminals are completed in 2.5 seconds, greatly improving efficiency; Applied for the tubular terminal from 0.3mm² to 4mm².

1. One machine suitable for crimping a variety of loose tubular terminals onto cables, Not need to change crimping dies for different size tubes.
2. Wire stripping twisting and crimping can be finished at one time. For Stranded Wire or very thin wires, this function can prevent the copper wire from standing upside down when entering the terminal.
3. LCD display, automatically adjusts stripping depth and length, very easy to operate.
4. Mute motor feeding, automatic supply terminal, terminal four-side crimping, no need to change crimping die, saving time and effort.

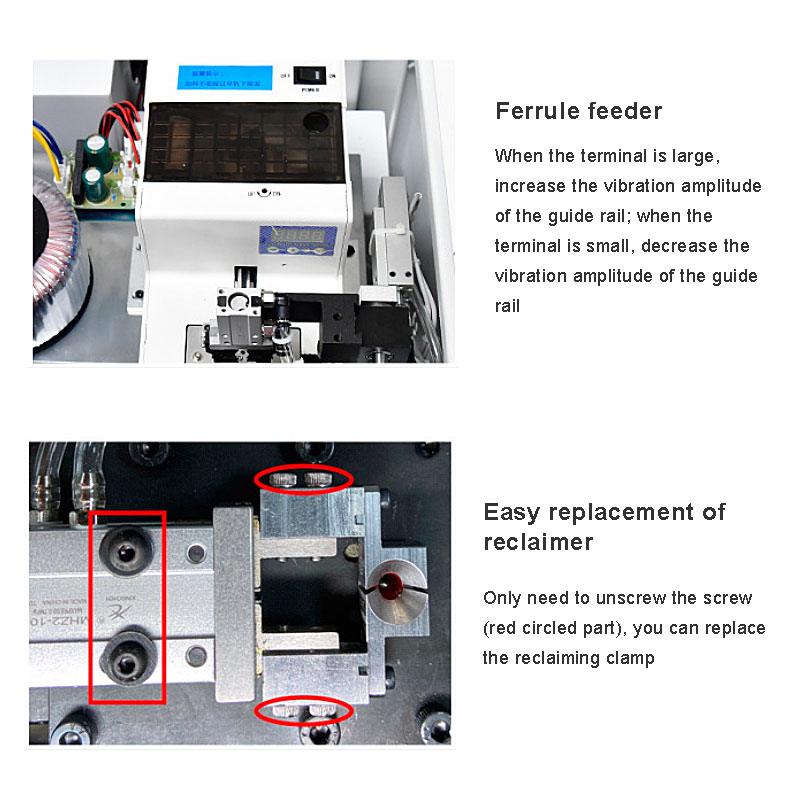

5. Easy replacement of reclaimer, only need to unscrew the screw (red circled part), you can replace the reclaiming clamp
6. Ferrule feeder, When the terminal is large, increase the vibration amplitude of the guide rail; when the terminal is small, decrease the vibration amplitude of the guide

Özellikler

Wire stripping machine and ring terminal crimping machine video:
