Model: HL-F30
A semi-automatic fold labeling machine is designed to achieve high speed achieve finish folding label different specifications of wire and wire harness products.

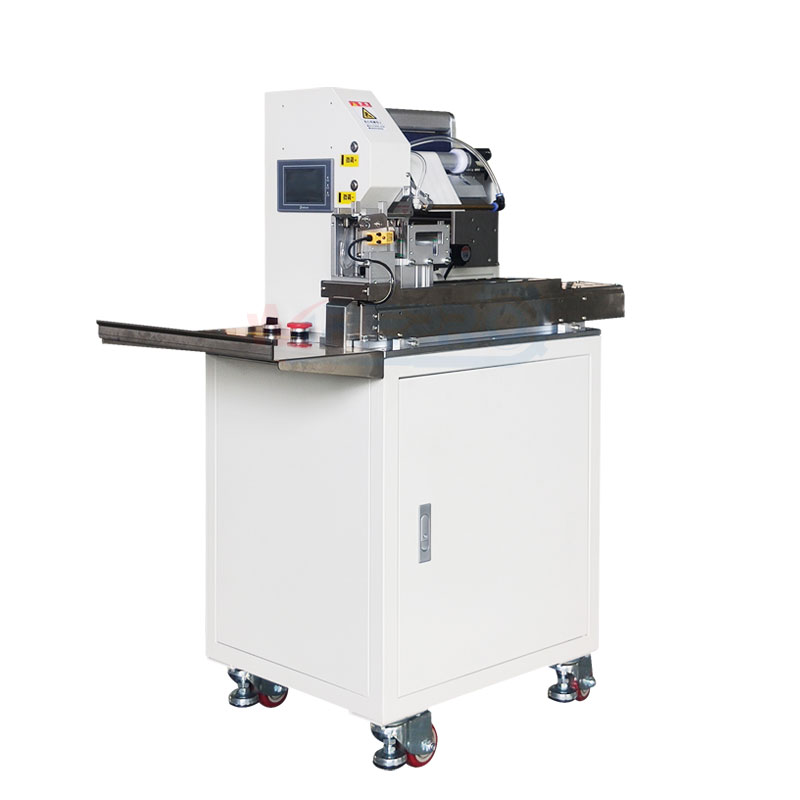

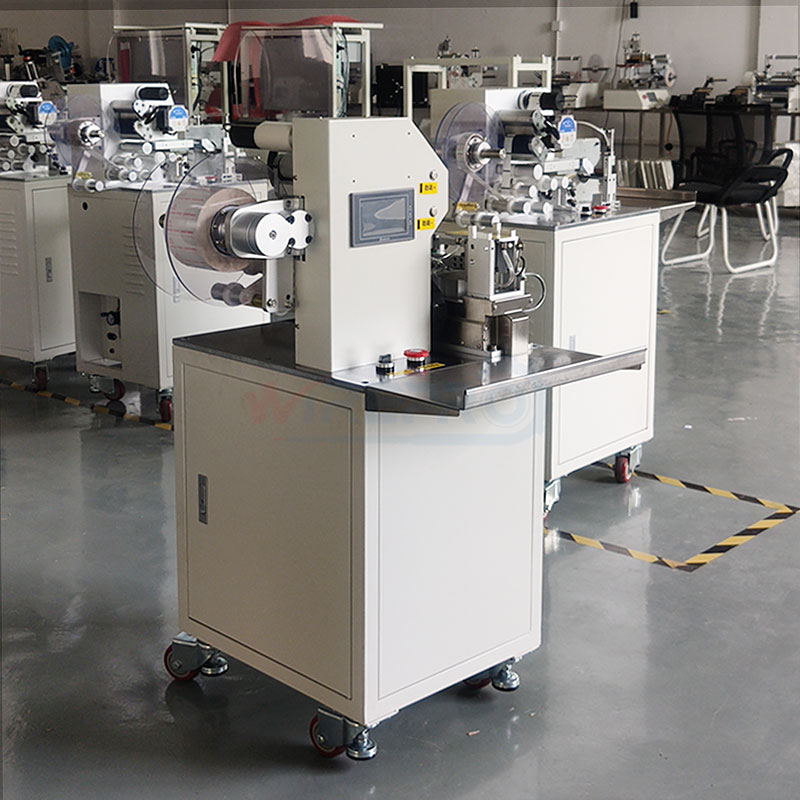

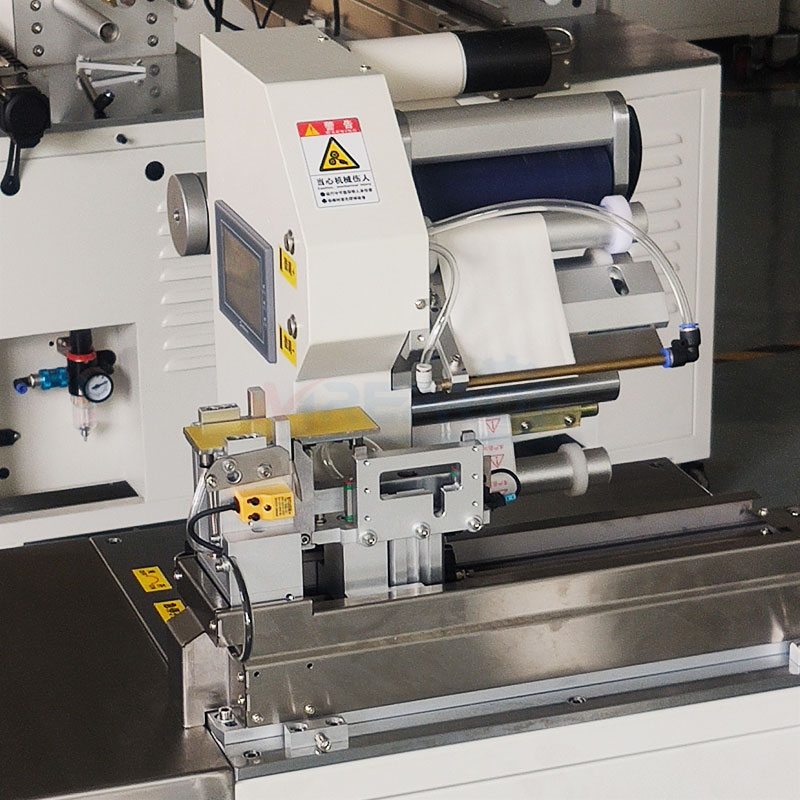

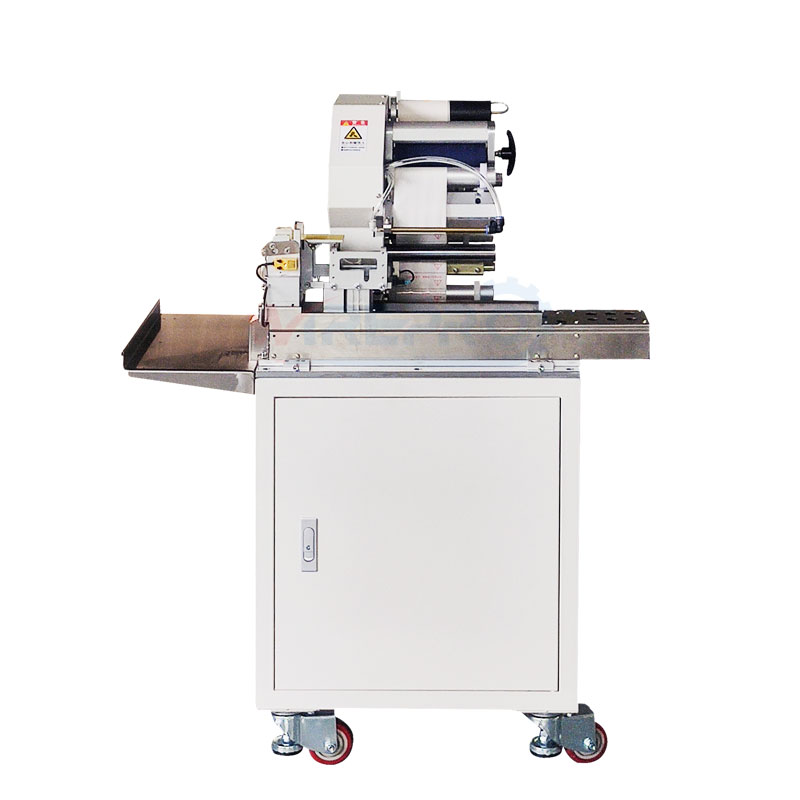

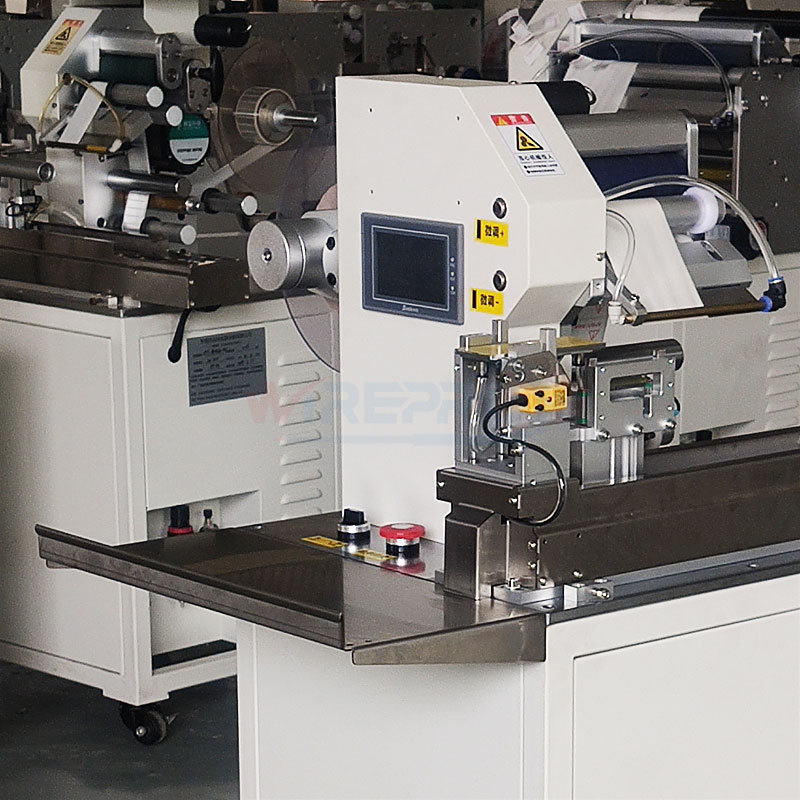

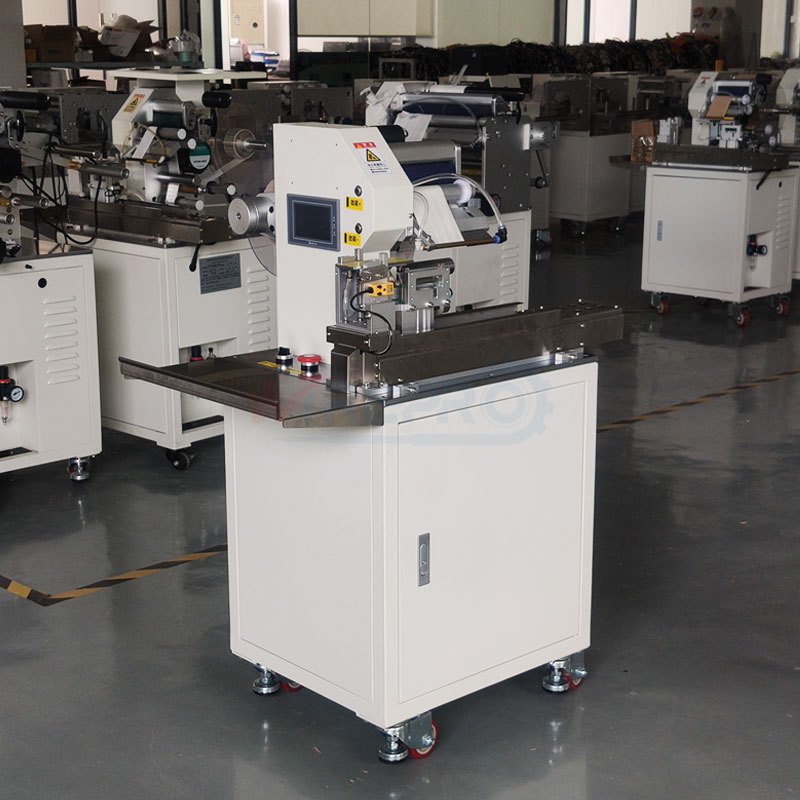

HL-F30 Wire cable flag label folded labeling machine
Açıklama
A semi-automatic fold labeling machine is designed to achieve high speed achieve finish folding label different specifications of wire and wire harness products. It is suitable for various kinds of wire and cable, such as round wire, flat wire, twisted wire, loose wire and etc.
Özellikler:
1. Servo motor precise positioning, the labeling tolerance is only 0.2mm, much better than human operation, finial products have stable label appearance
2. Reasonable mechanical structure design ensures smooth and stable label delivery
3. Convenient application, can be adjusted in a wide range, realize the folding and labeling of different specifications of wire harness products
4. You don’t need to twist the screws to adjust the machine, just input the label size and wire diameter directly on the display.
5. Solve the problem of slow-speed manual labeling, improve production efficiency, save labor costs.
Video:
Teknik Veriler
| Model | HL-F30 |
| Available Materials | Round shape cable, tube and others |
| Available Diameter | 1.6-30mm ( based on materials, other size can be customized) |
| Available label | Width: 5~90 mm (customized oversize) Length: 20~350 mm (customized oversize) |
| Available label roller | Outer diameter: Max 240mm Inner diameter: Max 76mm |
| Labeling precision | ± 0.2mm |
| Labeling speed | 1000-1500pcs/hour (depending on products size and operators speed) |
| Air connection | 0.4-0.6 Mpa |
| Güç kaynağı | 220V/50Hz; 110V/60Hz |
| Güç | 250W |
| Boyutlar | 580*680*1000mm |
| Ağırlık | 88kg |
Uygulama
Applicable wires: earphone cable, USB cable, power cord, air pipe, water pipe, etc.;
Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;
Application examples: headphone cable labeling, power cord labeling, optical fiber cable labeling, cable labeling, tracheal labeling, warning label labeling machine, etc.
