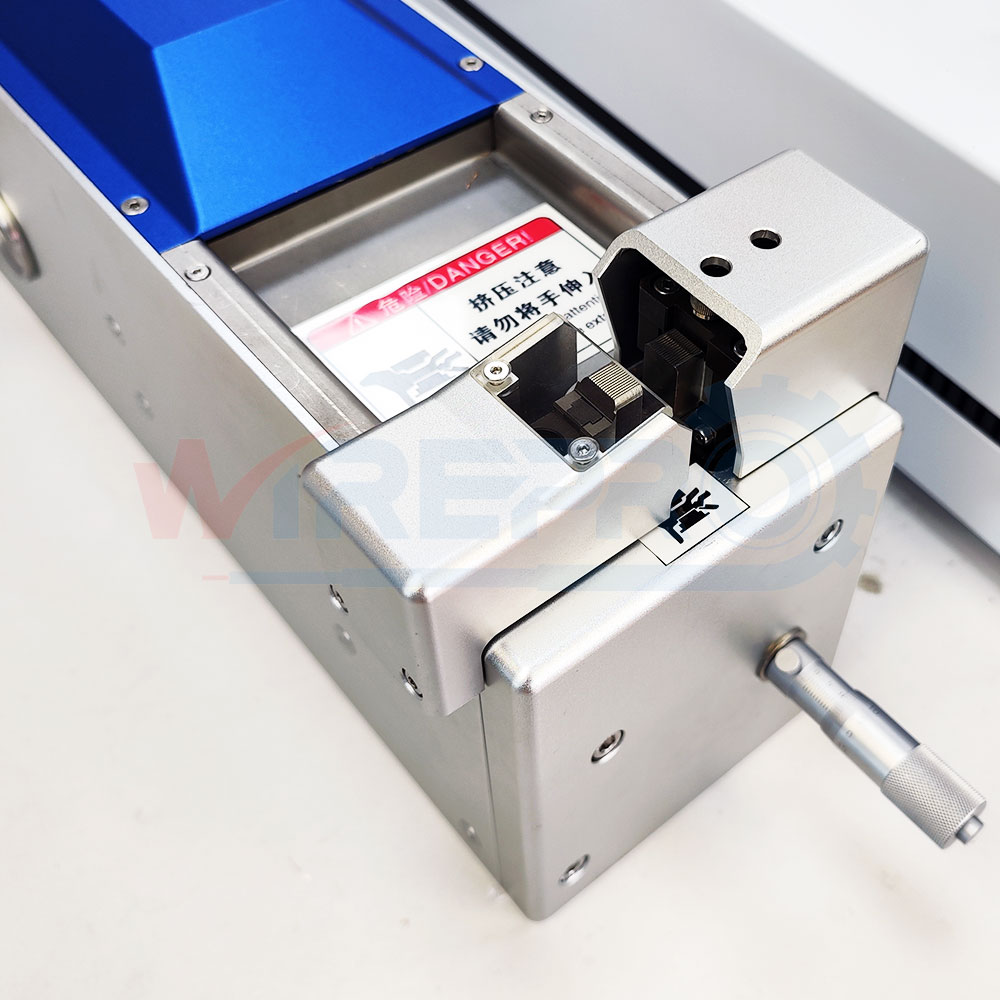

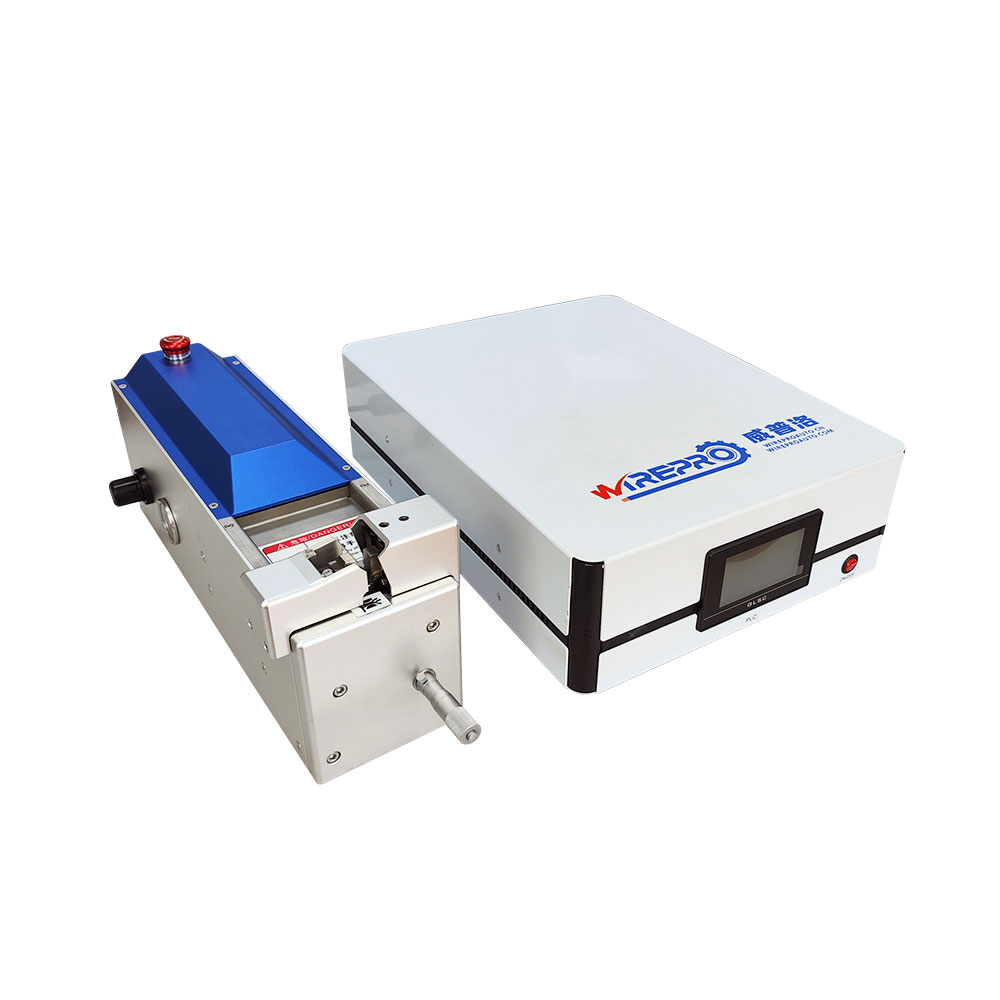

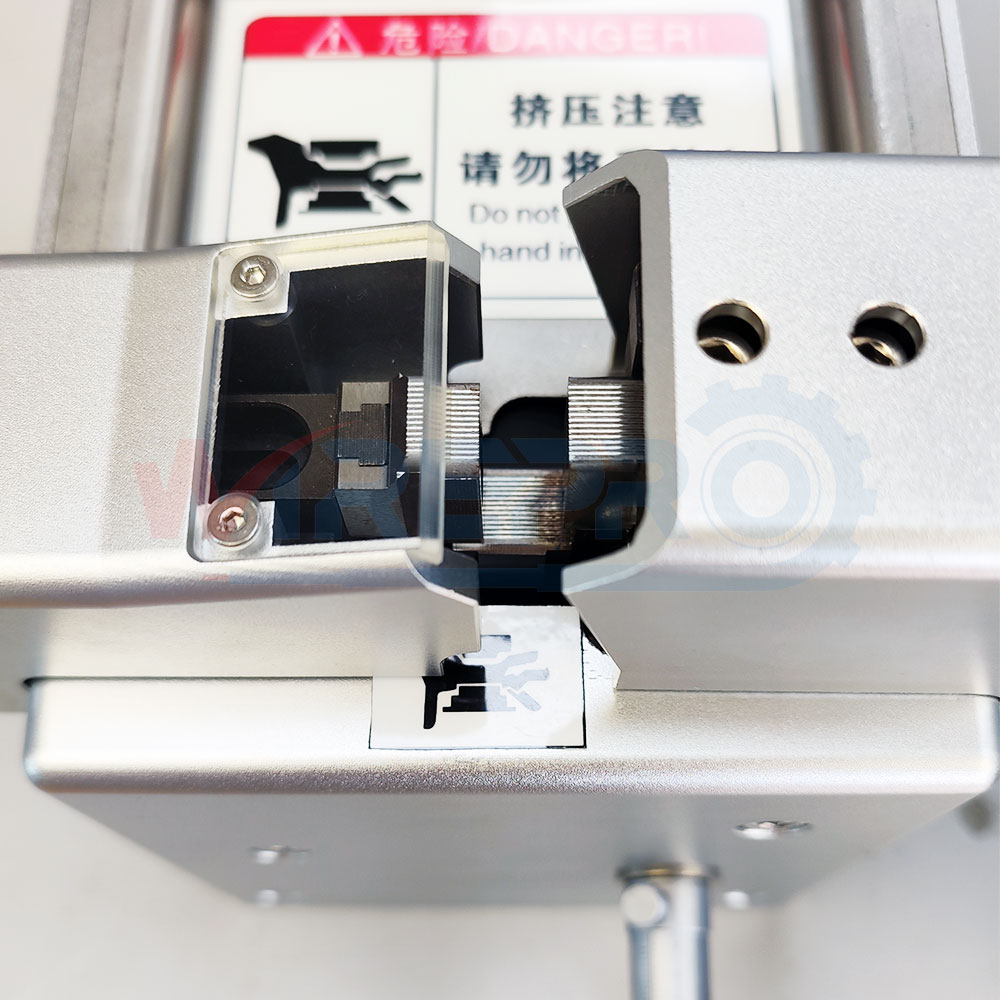

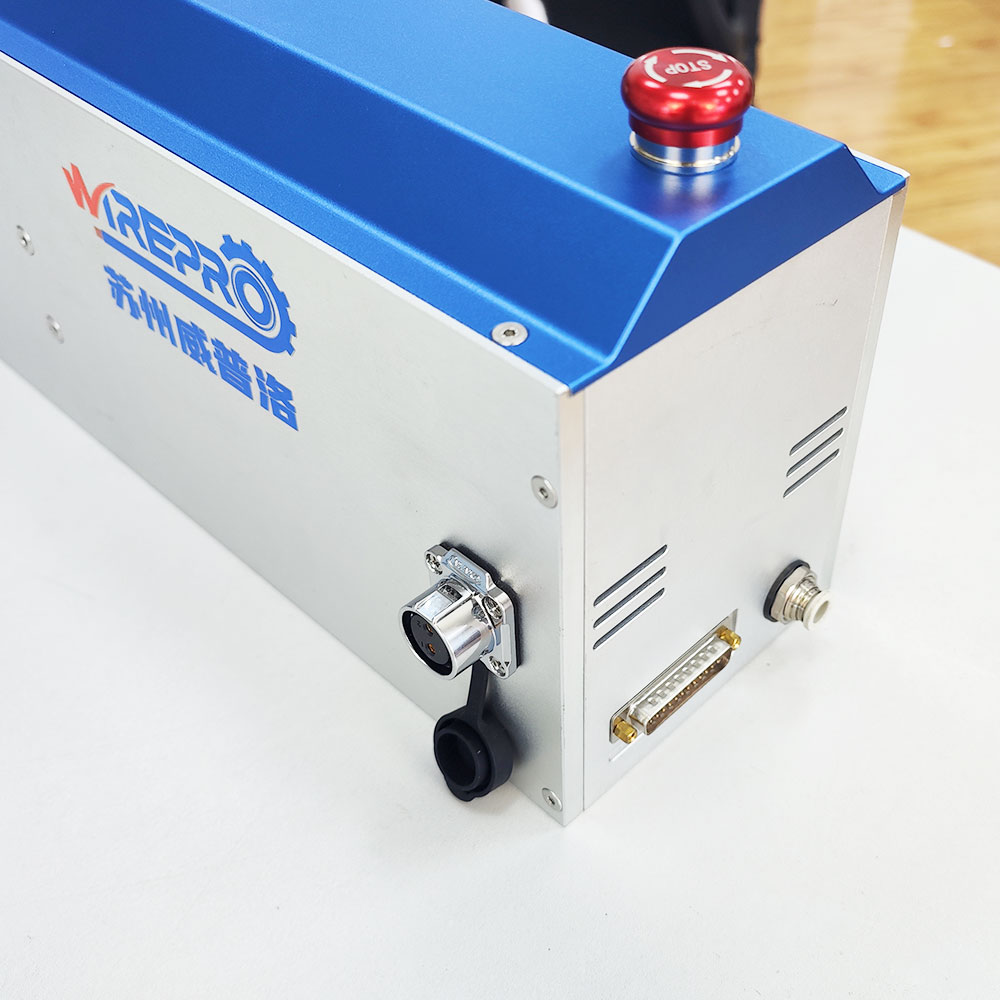

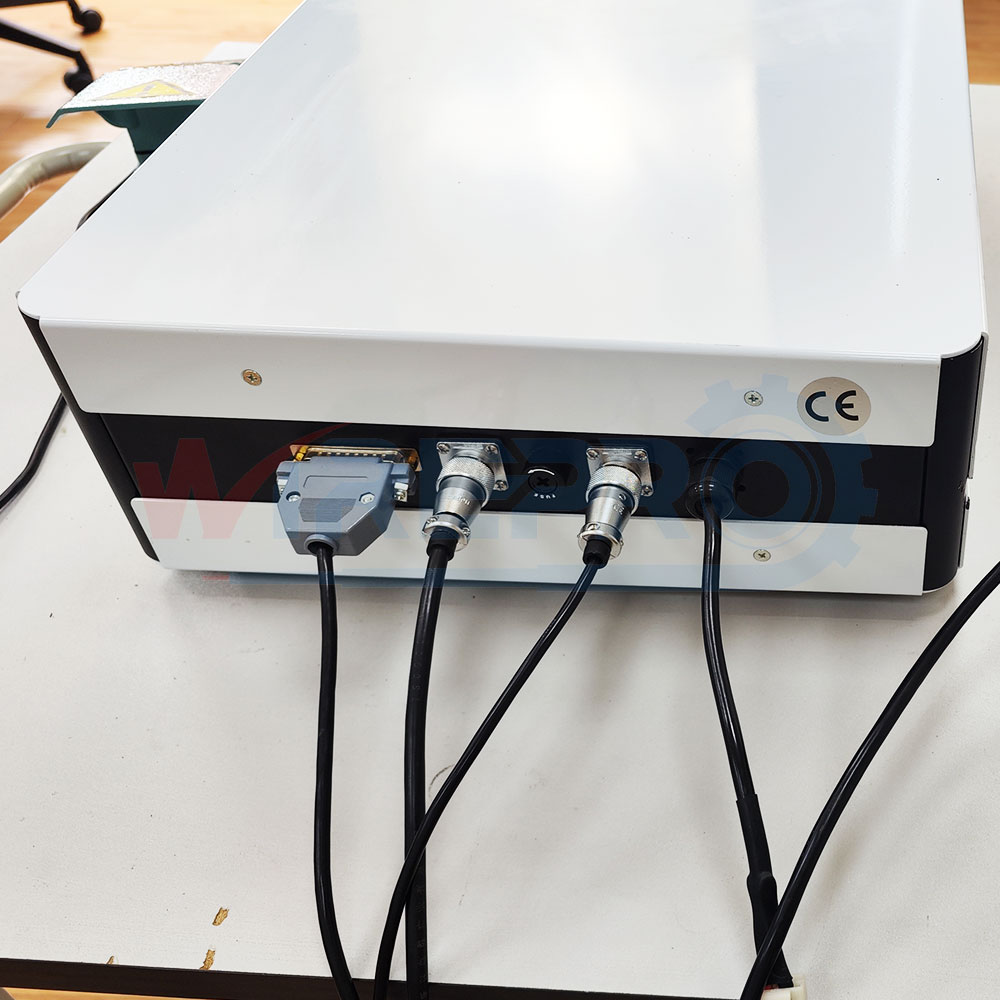

Model: TP-W10
TP-W10 is suitable for wire harness welding with a total cross-sectional area of less than 10 square millimeters, and has a good cost-effectiveness for users who only need to weld small wires. Mainly suitable for splicing copper wire, and aluminum wire.
TP-W10 is suitable for wire harness welding with a total cross-sectional area of less than 10 square millimeters, and has good cost-effectiveness for users who only need to weld small wires. Mainly suitable for splicing copper wire, and aluminum wire.
It has the preventing empty welding function, which can effectively prevent damage to the welding head.
Adopt a pure cylinder motion system, easy to use and easy to operate.
1. The welding material does not melt and does not destroy the metal characteristics;
2. After welding, the electrical conductivity is good, the thermal conductivity is good, and the resistivity is extremely low or nearly zero;
3. The requirements for the metal watch are low, and the oxidation or powerhouse layer can be welded;
4. There is no spark in the explosion connection, which is fast, environmentally friendly, and safe.
| Model | TP-W10 |
| Welding capacity | Wire size range: 1-10mm2 |
| Frequency | 20Khz |
| Üretim Oranı | About 0.6s/pcs, based on the wires |
| Güç Kaynağı | 220VAC,50Hz |
| Güç | 2000W |
| Dimension | 570*220*175 mm / 385*350*165mm |
| Ağırlık | 35kgs / 18kgs |
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
