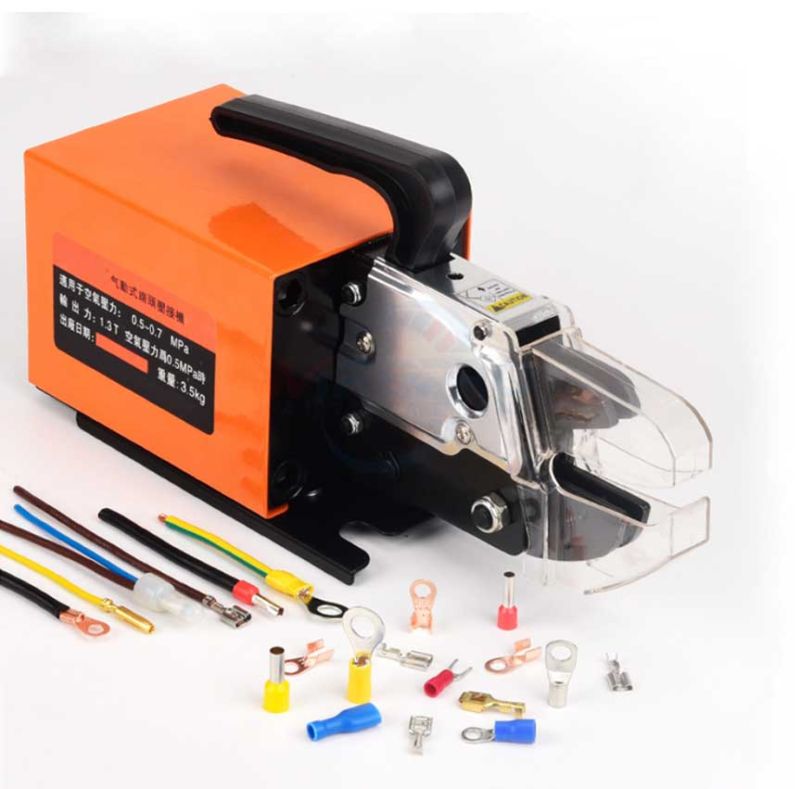

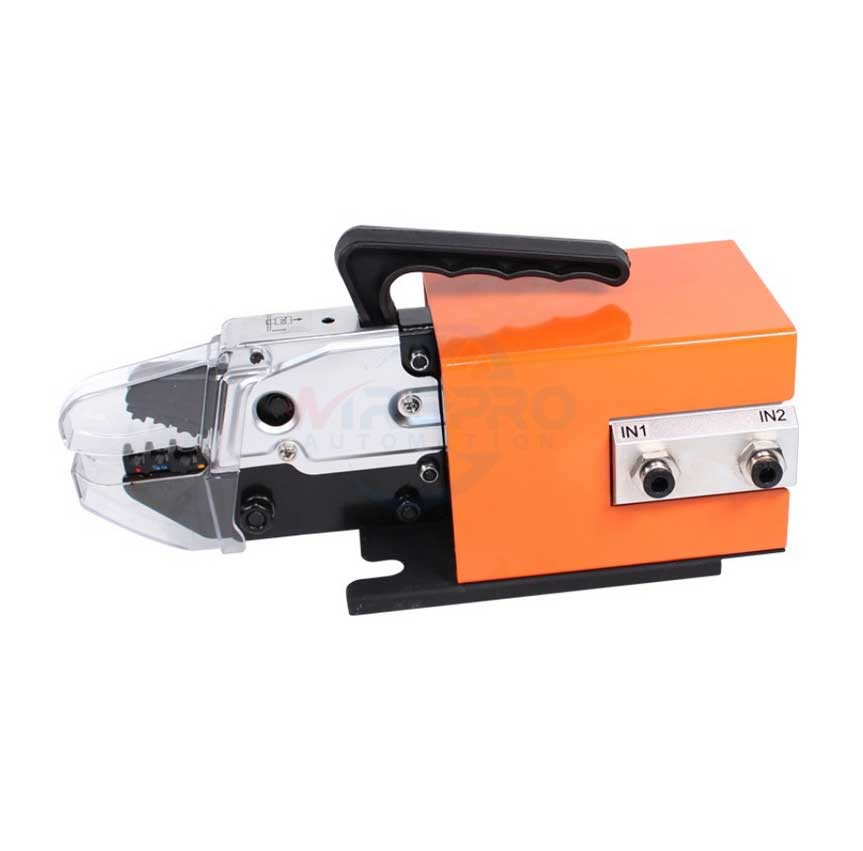

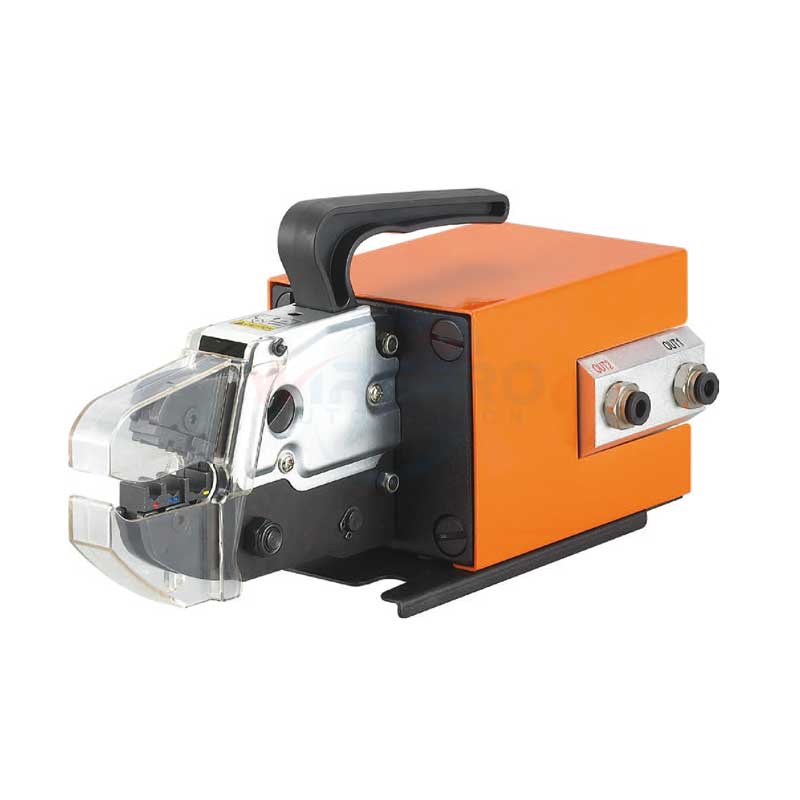

Model: TP-M10
Just need to change the crimping dies for different terminals. If there are a lot of different kinds of terminals to be crimped, this crimper is the best choice.
Model: TP-M10
Just need to change the crimping dies for different terminals. If there are a lot of different kinds of terminals to be crimped, this crimper is the best choice.

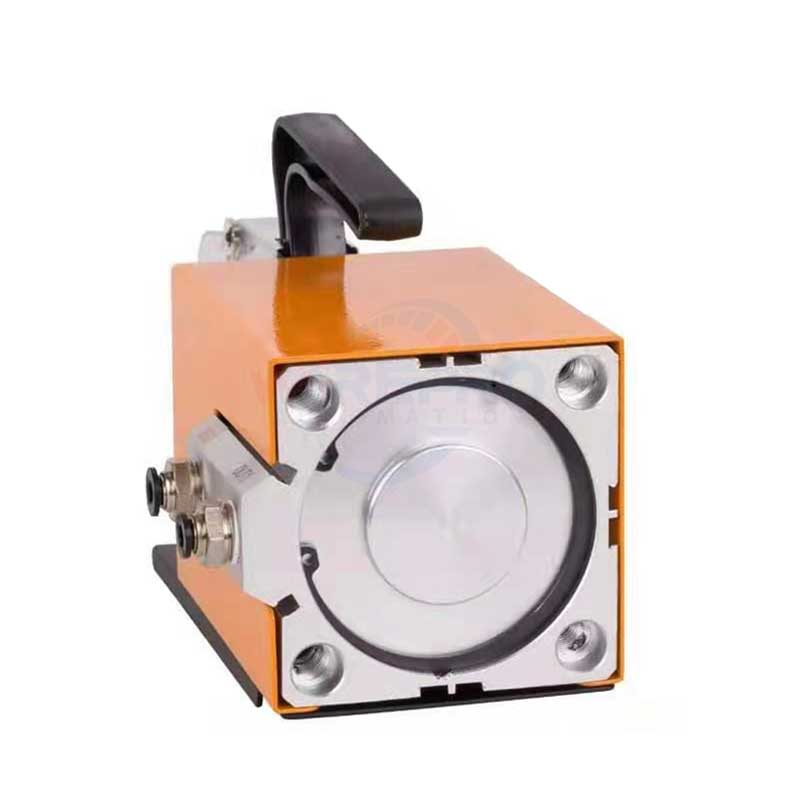

1. The machine is driven by a dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed.

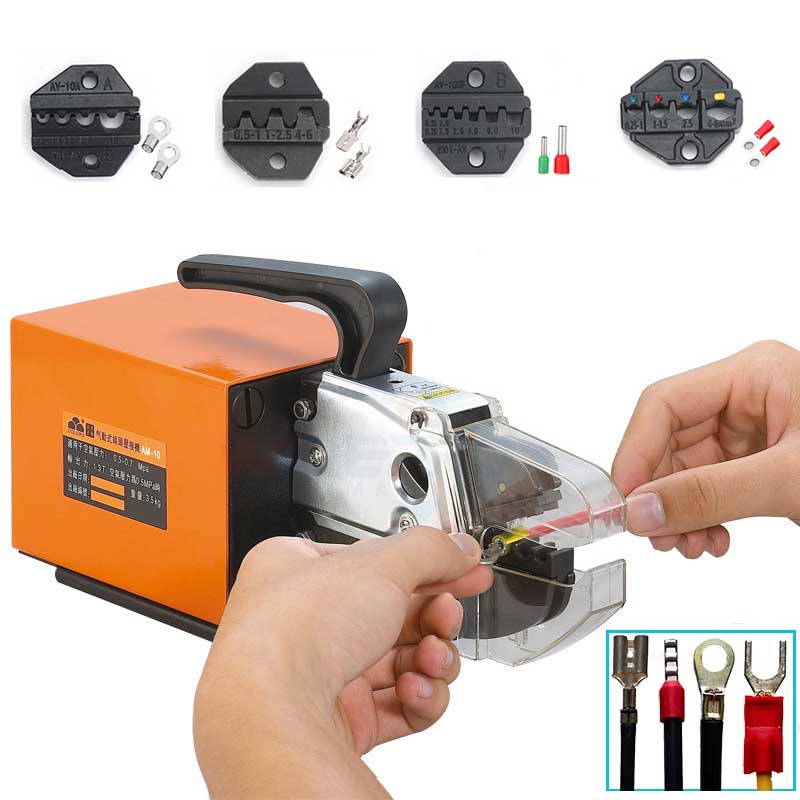

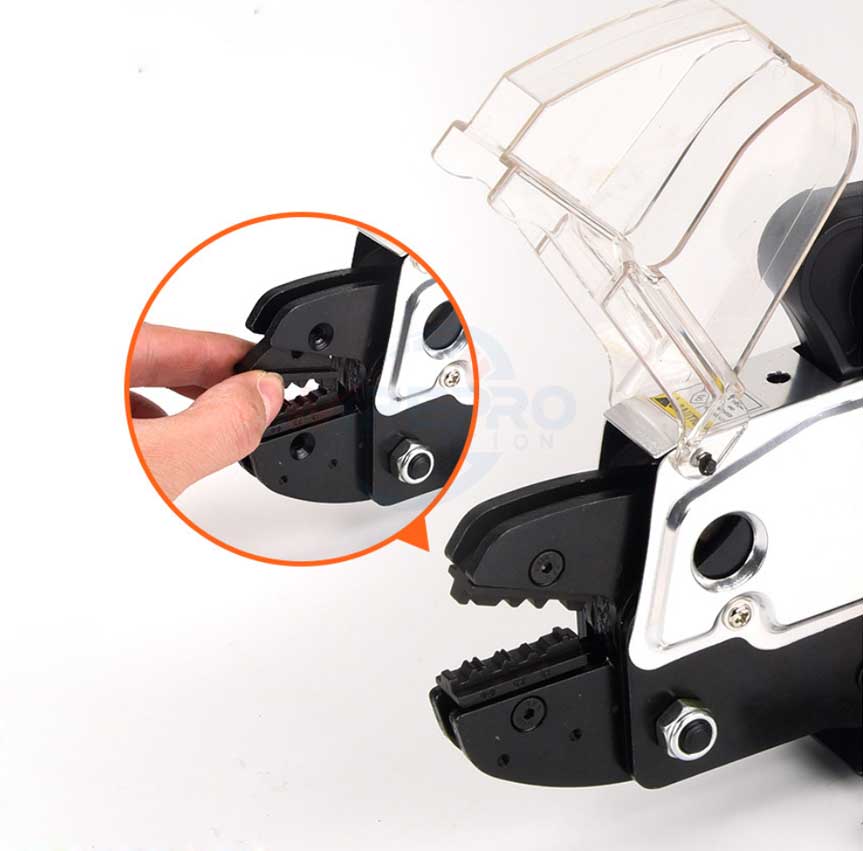

2. The machine is fit for many kinds of terminals. Just need to change the crimping dies for different terminals. If there are a lot of different kinds of terminals to be crimped, this crimper is the best choice.

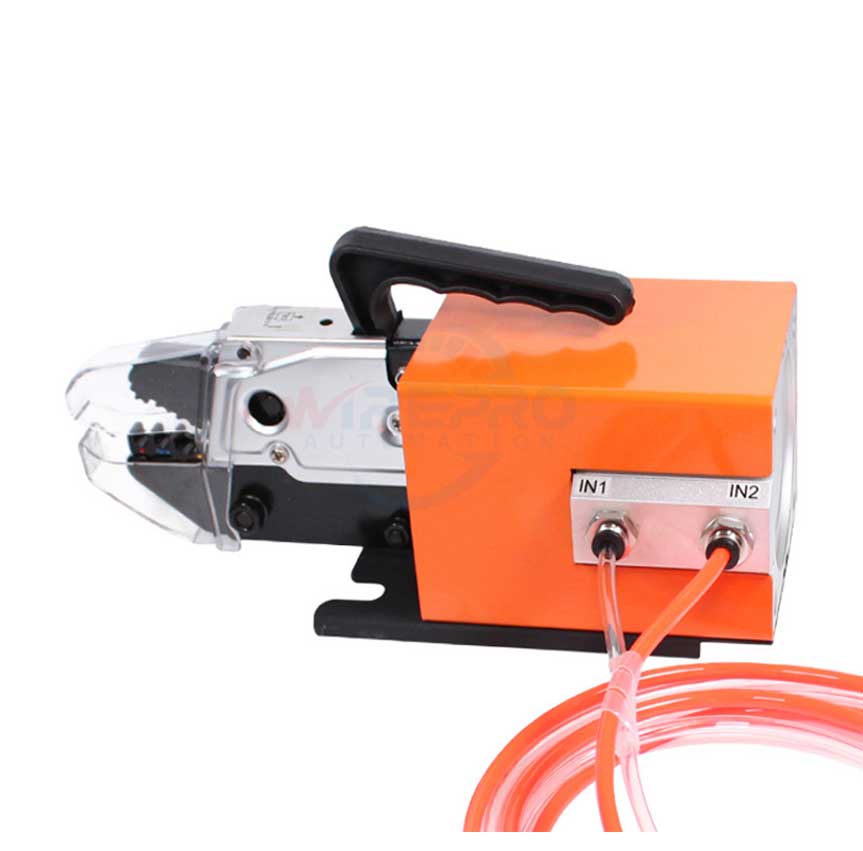

3. The operation is simple: crimping machine and the gas source connection; match the supply air terminal and wire-bound good; according to the required length of crimp terminals to adjust the depth of the interface pressure; foot control the crimping.
4. Made of high-quality components and materials, durable

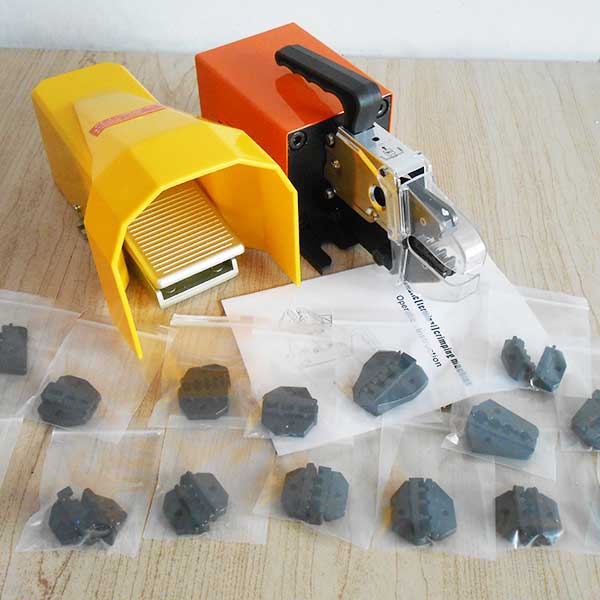

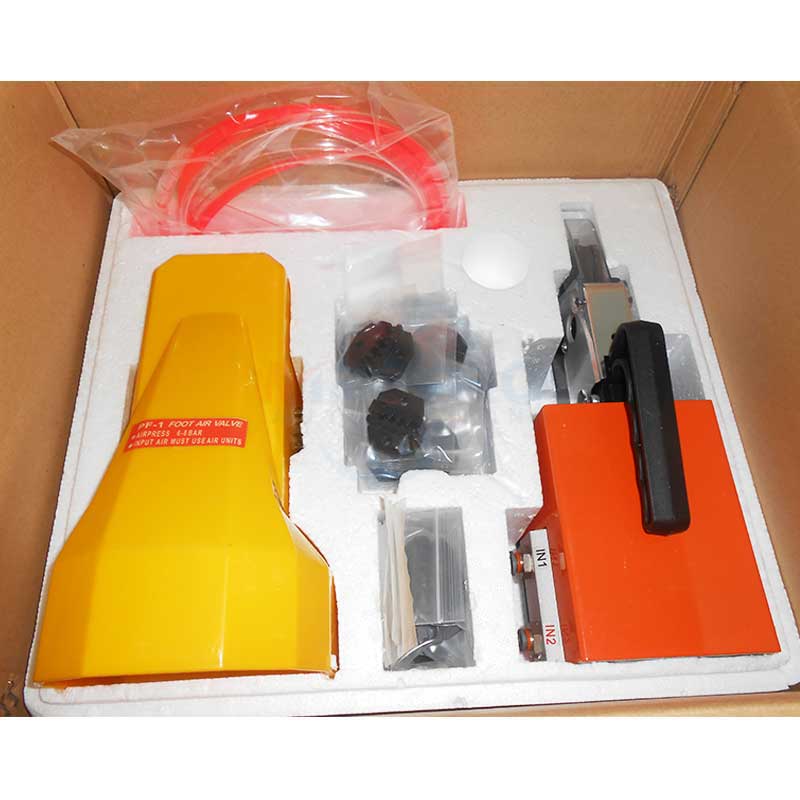

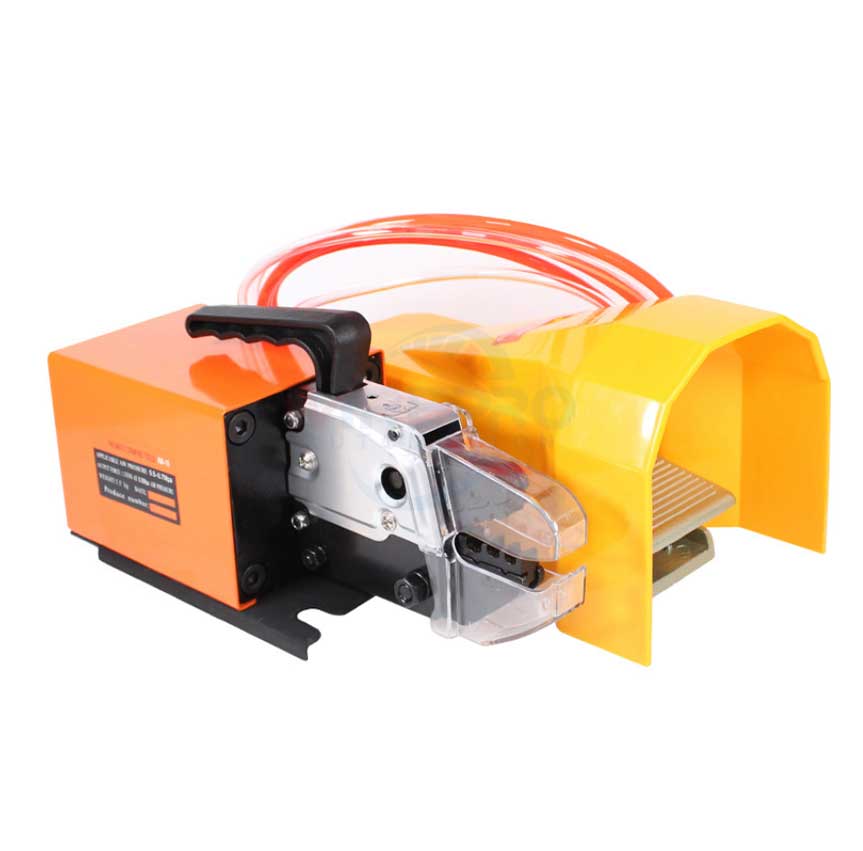

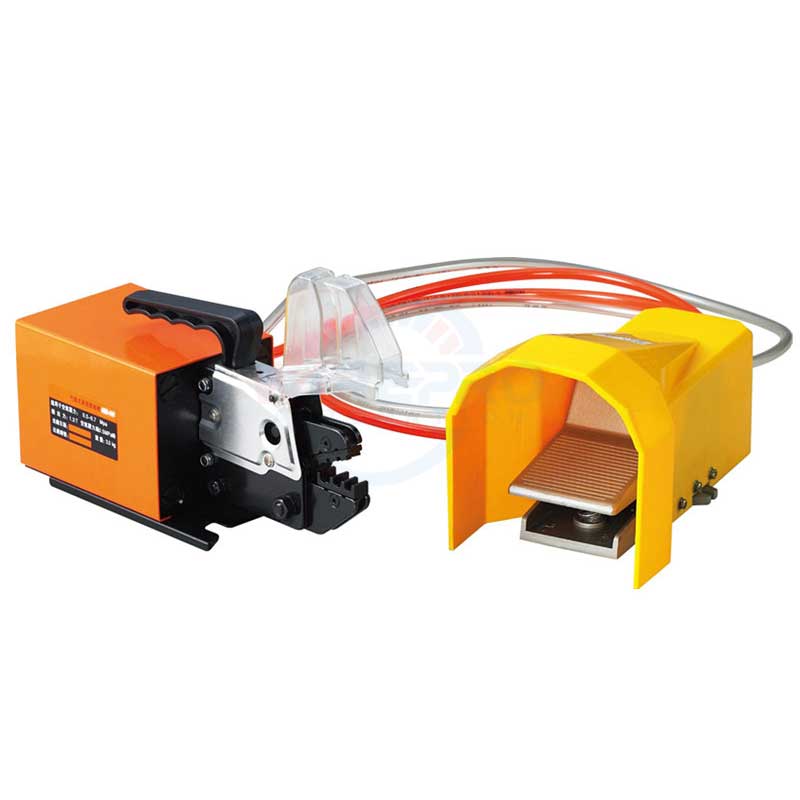

Accessories: one die set, one-foot air valve, two air pipes.
Model | TP-M10 |
Crimping force | 1.35 Ton |
Uygulama | Pneumatic crimping tools |
Crimping dies | non-insulated terminals: ≤16mm² ;
Insulated Terminal: ≤6mm² ; tubuler terminal: ≤35mm². |
Air Pressure | 0.7-0.95 Mpa |
Dimension | 26X12X14 cm |
Ağırlık | 13kgs |
Wire stripping and ring terminal crimping
