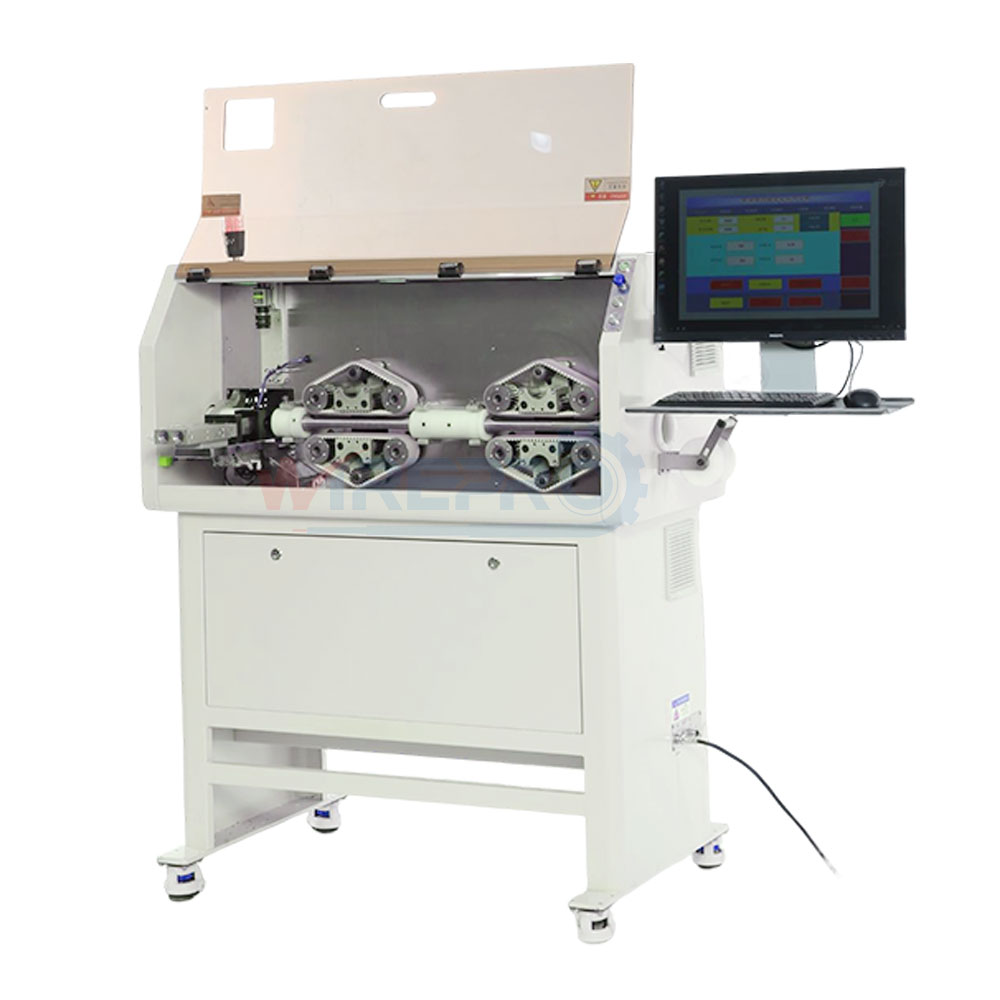

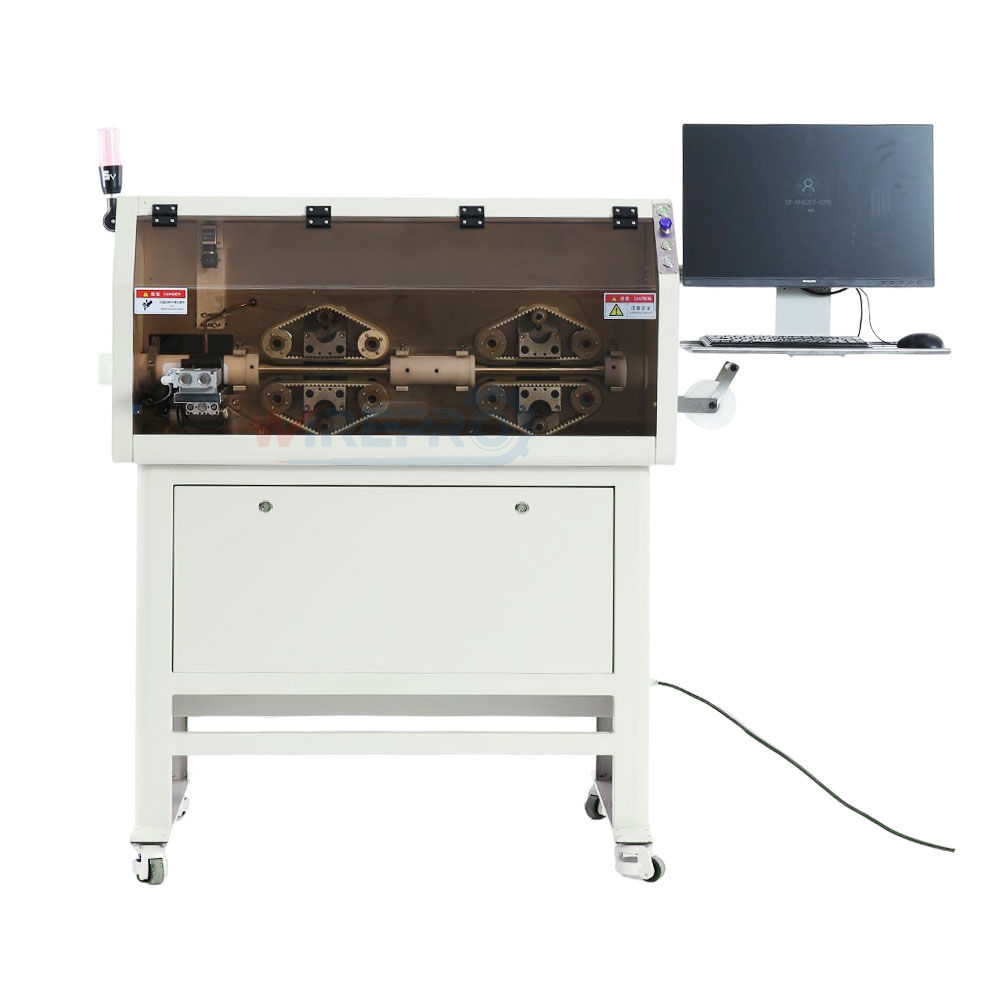

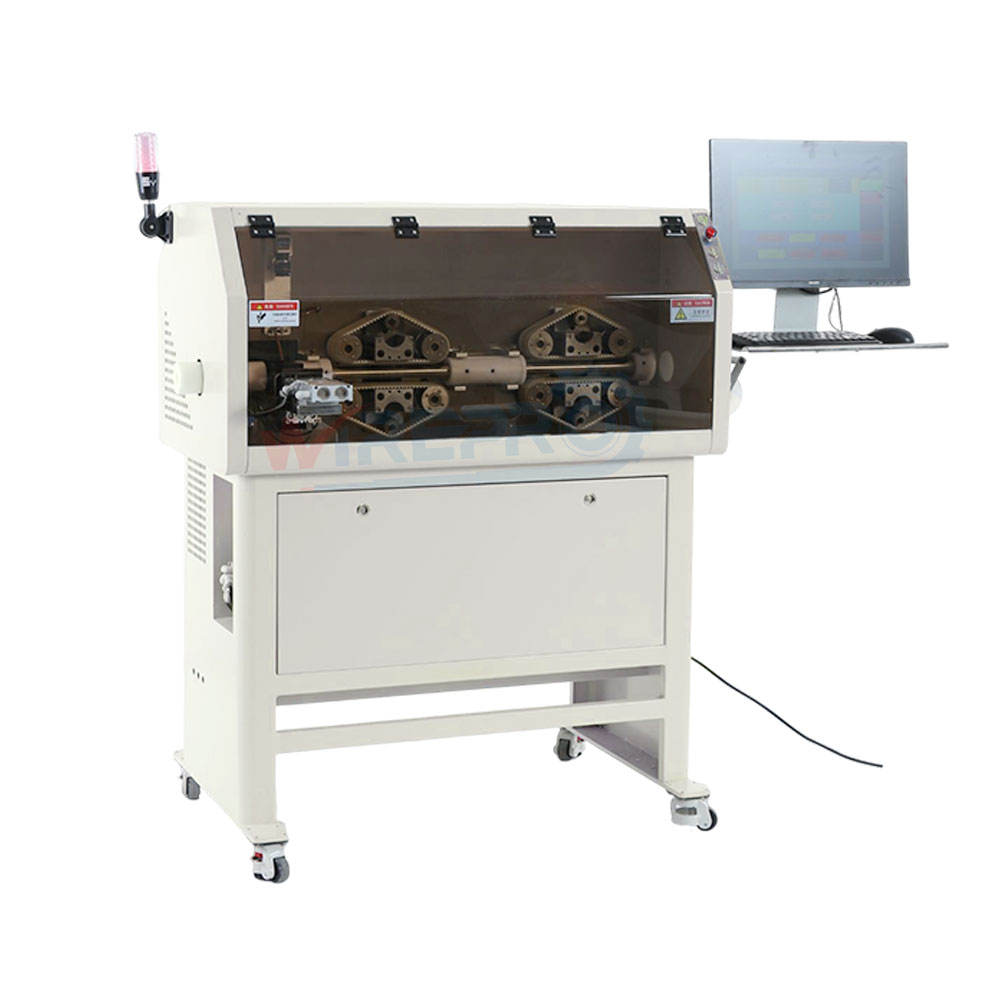

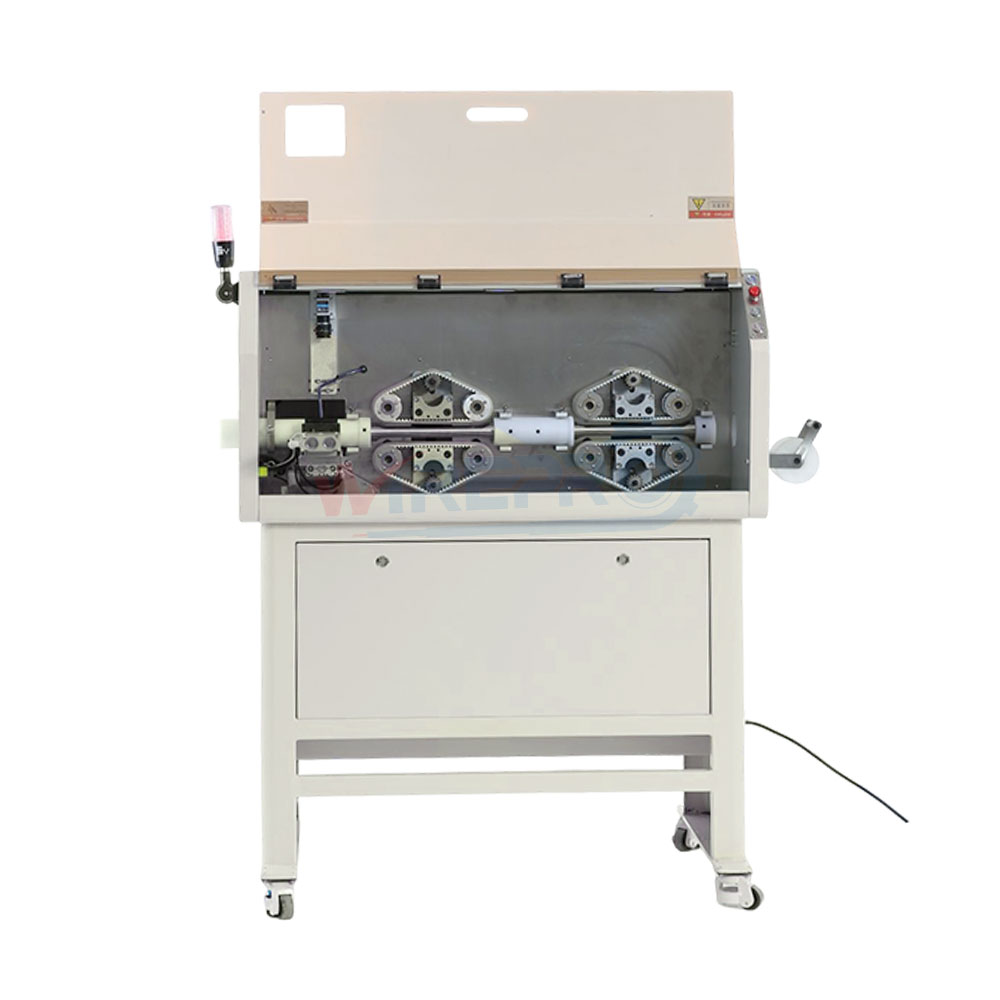

Model: CB-S08
CB-S08 is designed for cutting and collapsing extendable tubing and different kinds of folding corrugated hoses. For example scavenging tubing, expandable tubing in the medical industry, and some expandable corrugated tube need to be packaged in a collapsed state.
CB-S08 is designed for cutting and collapsing extendable tubing and different kinds of folding corrugated hoses. For example scavenging tubing, expandable tubing in the medical industry, and some expandable corrugated tube need to be packaged in a collapsed state.
1. Visual positioning system, precision-cut the position on the tube：
First, the camera takes a picture and the machine gets the tube profile, the operator can set the cutting position in the computer software system, and the software system will visually position the cutting each time according to the set position. This guaranteed the cutting accuracy.
2. This machine is specially set up for pipes that need compressing, in addition to the cutting function, it can complete collapsing tubing at the same time. After the processing, the tube is packaged directly, saving a lot of labor.
3. This machine can be used with extrusion pipe production lines, etc.
| Model | CB-S08 |
| Available Diameter | 10-45mm |
| Kesim Uzunluğu Toleransı | ± 0.2 mm |
| Cutting Speed | 7-12 m/min |
| Güç | 3000W |
| Güç Kaynağı | 220/110V, 50/60Hz |
| Boyutlar | 67*180*150cm |
| Ağırlık | 500kg |
Automatic cutting and folding corrugated tubing, clear scavenging tubing, flexible convoluted tube, corrugated expandable tubing
plastic corrugated and expandable tubing in the market, expandable corrugated medical folding tube.
