Model: PC-C10
It is designed to interface with WIREPRO automatic cut and strip machines. Suitable for processing long wires, no additional collecting device is required.

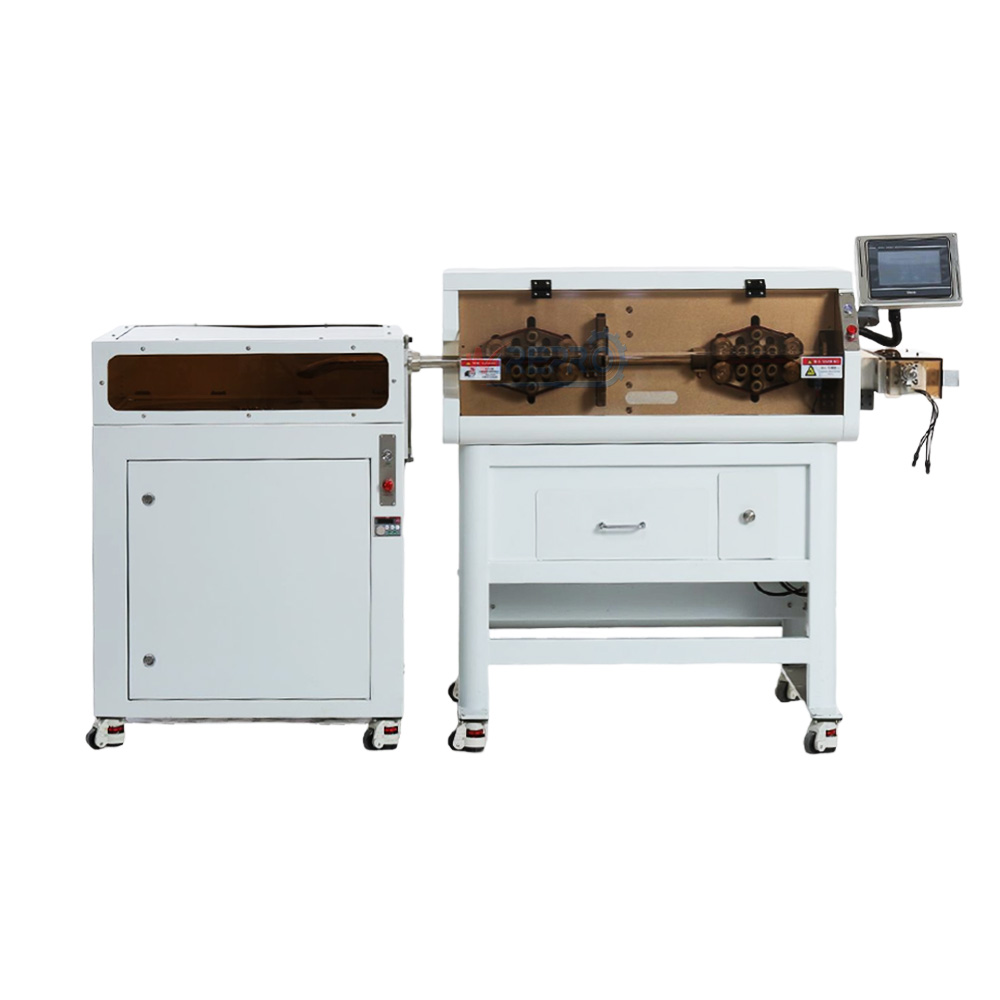

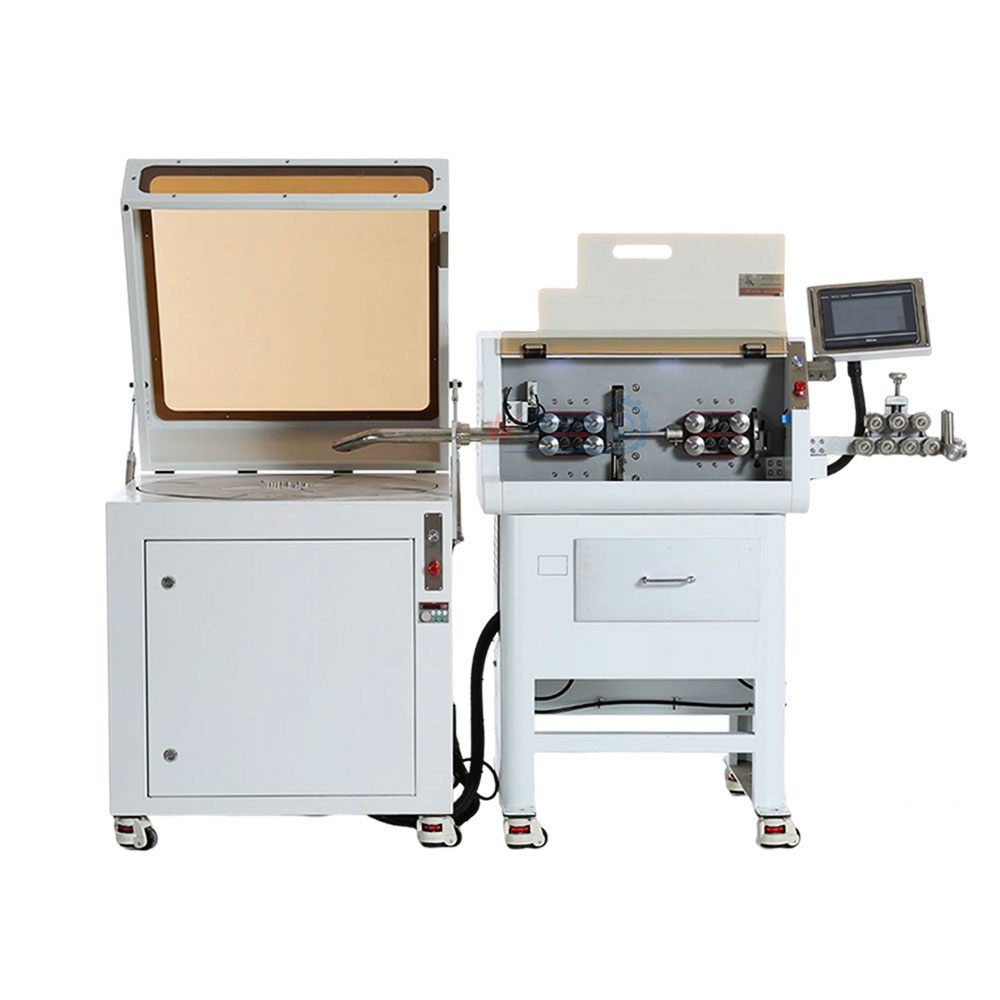

PC-C10 work with wire stripping machine cable colier
Descrição

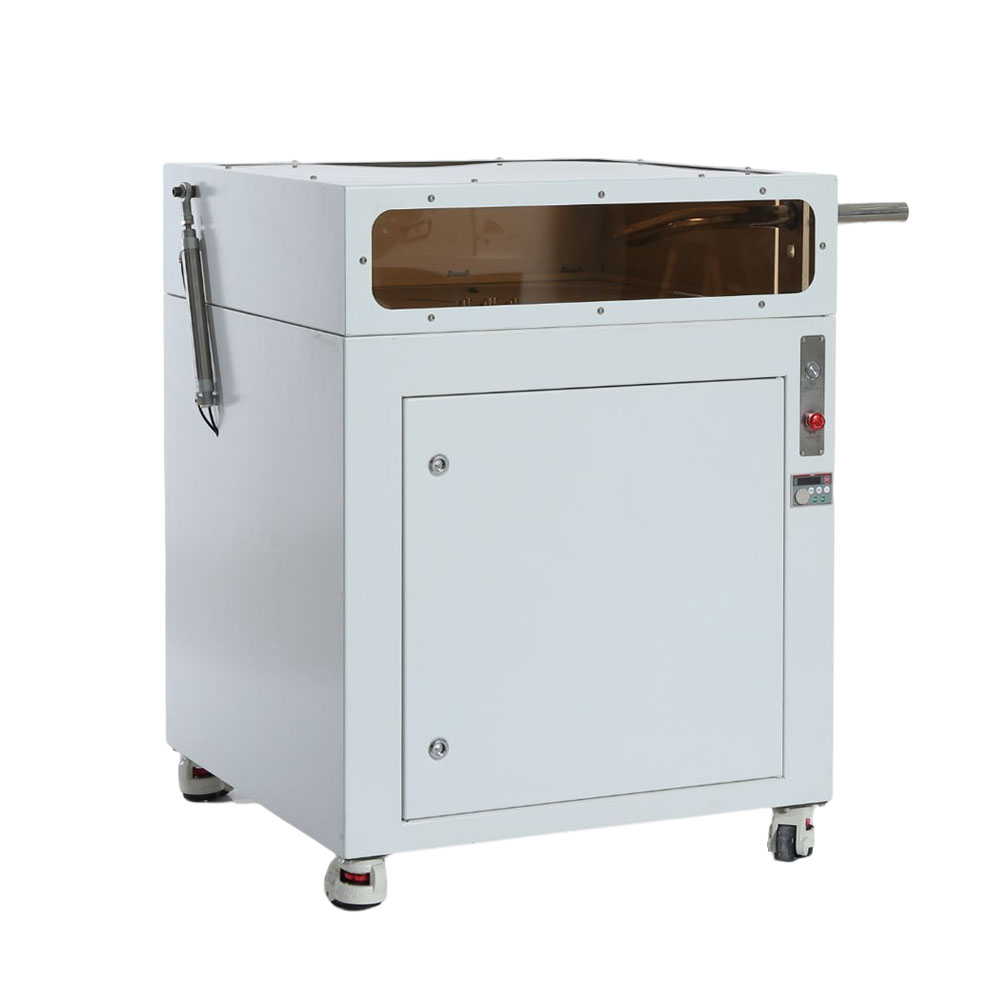

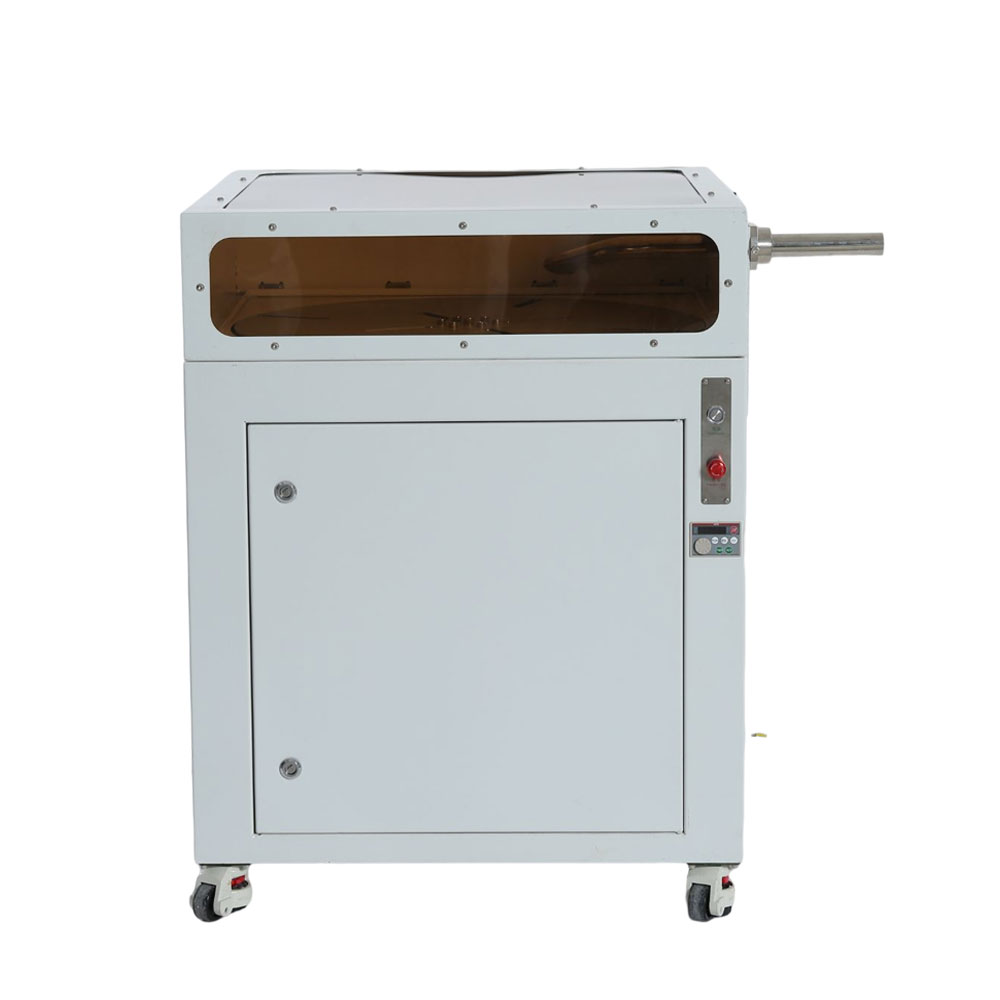

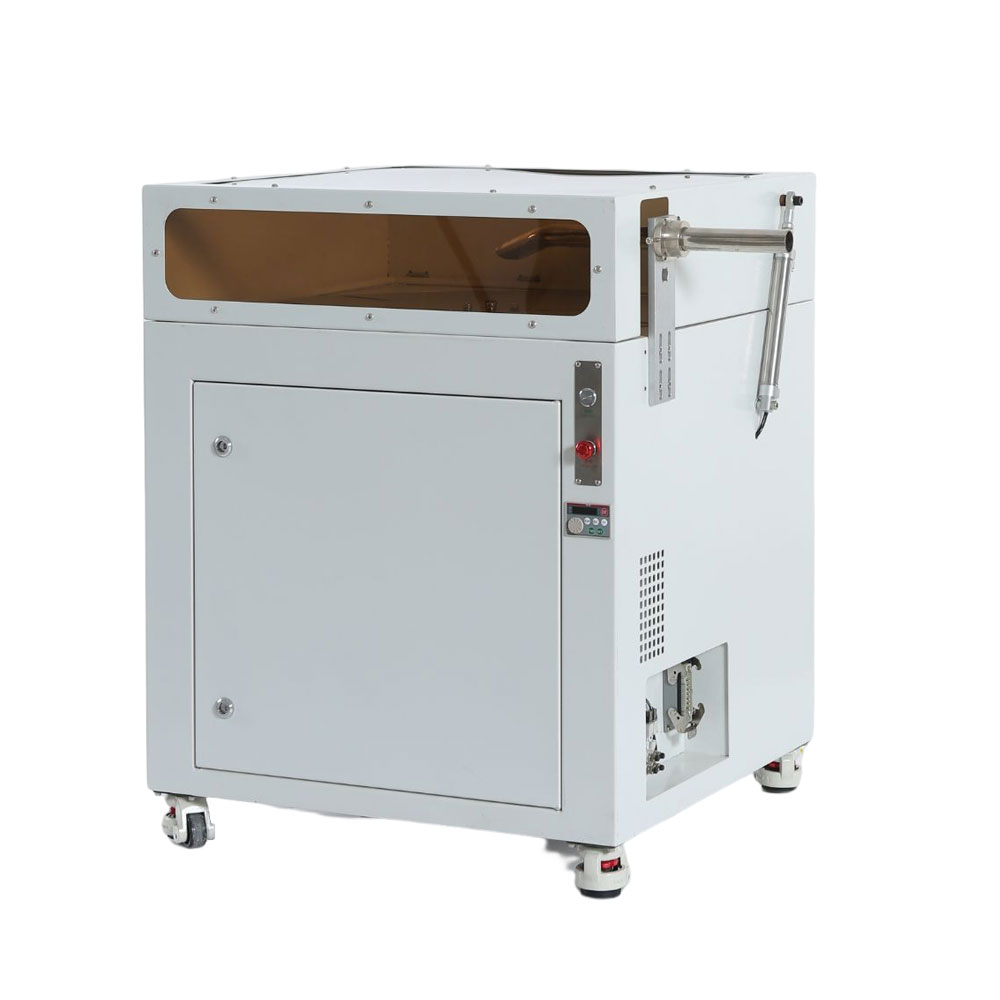

Wire coiler
It is designed to interface with WIREPRO automatic cut and strip machines. Suitable for processing long wires, no additional collecting device is required. Thanks to its flexibility, ease of use, and ergonomic design, it is the perfect solution to improve the production rate and efficiency of your wire or cable processing line.

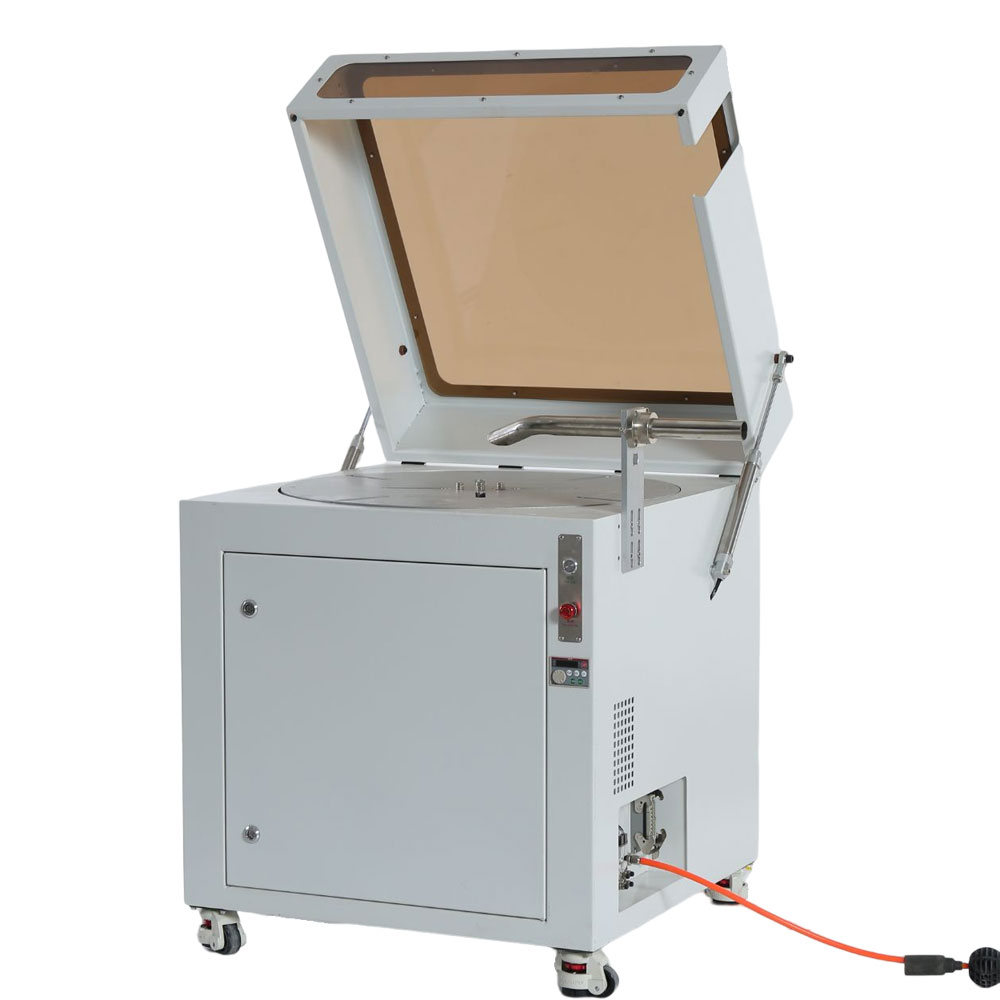

As the wire or cable exits the cut and strip machine, it passes through a guide tube and into the coiling pan. The coiling pan speed is synchronized with the speed of the existing wire or cable, making a uniform-sized coil.
Cable coiling machine video
Technical Data
| Model | PC-C10 | PC-C20 |
| Function | Wire Coiler to coiling wire after cutting and stripping | |
| Loading Weight | Max 20kg | Max 32kg |
| Coil Inner Dia | 200mm | 200mm |
| Coil Outer Dia | Max 380mm | Max 680mm |
| Coiling Speed | 1.5 m/s | 1.5 m/s |
| Drive Method | Servo motor, adaptive with speed, digital adjustment of speed ratio. | |
| Dimension | 53*53*100cm | 85*85*100cm |
| Weight | 60kg | 110kgs |
| Notes: We provide custom service for special cables. | ||
Application
Long wire coiling after stripping.
