Model: SU-030 SU-050
The series machines are designed for full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable and so on.

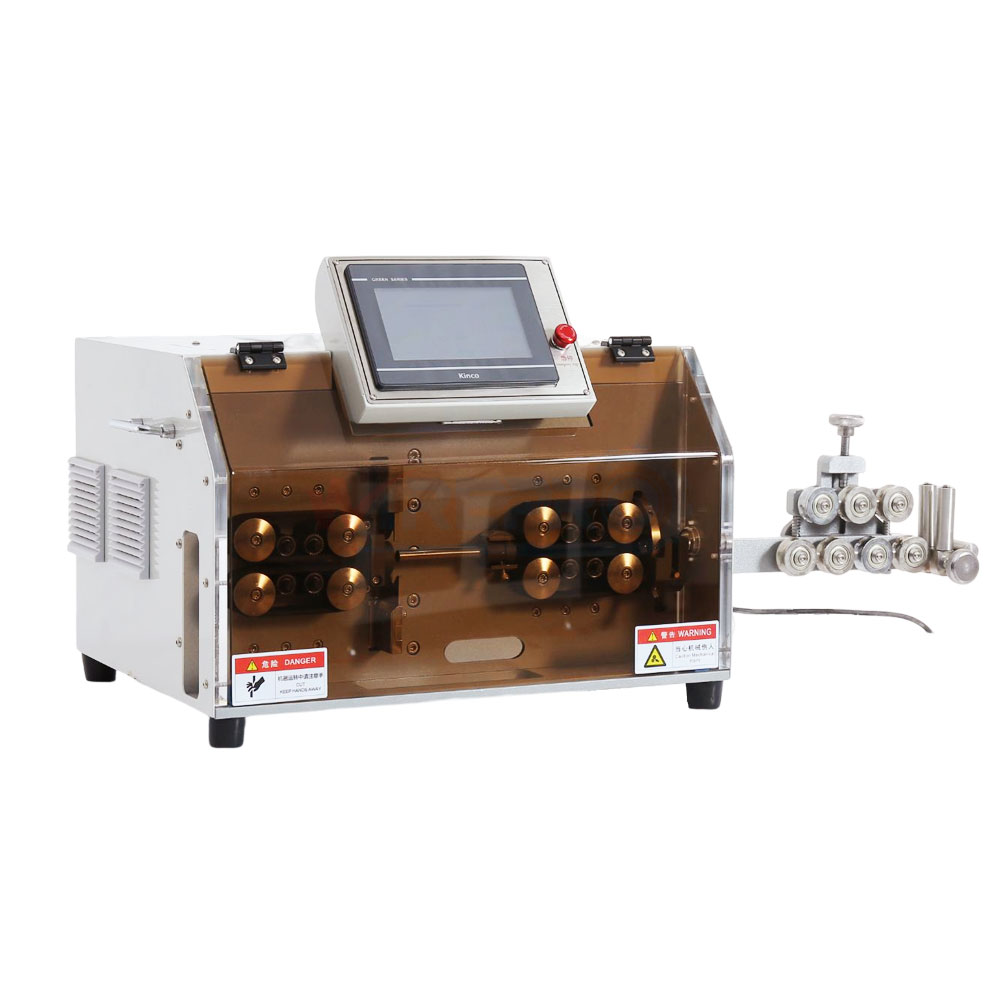

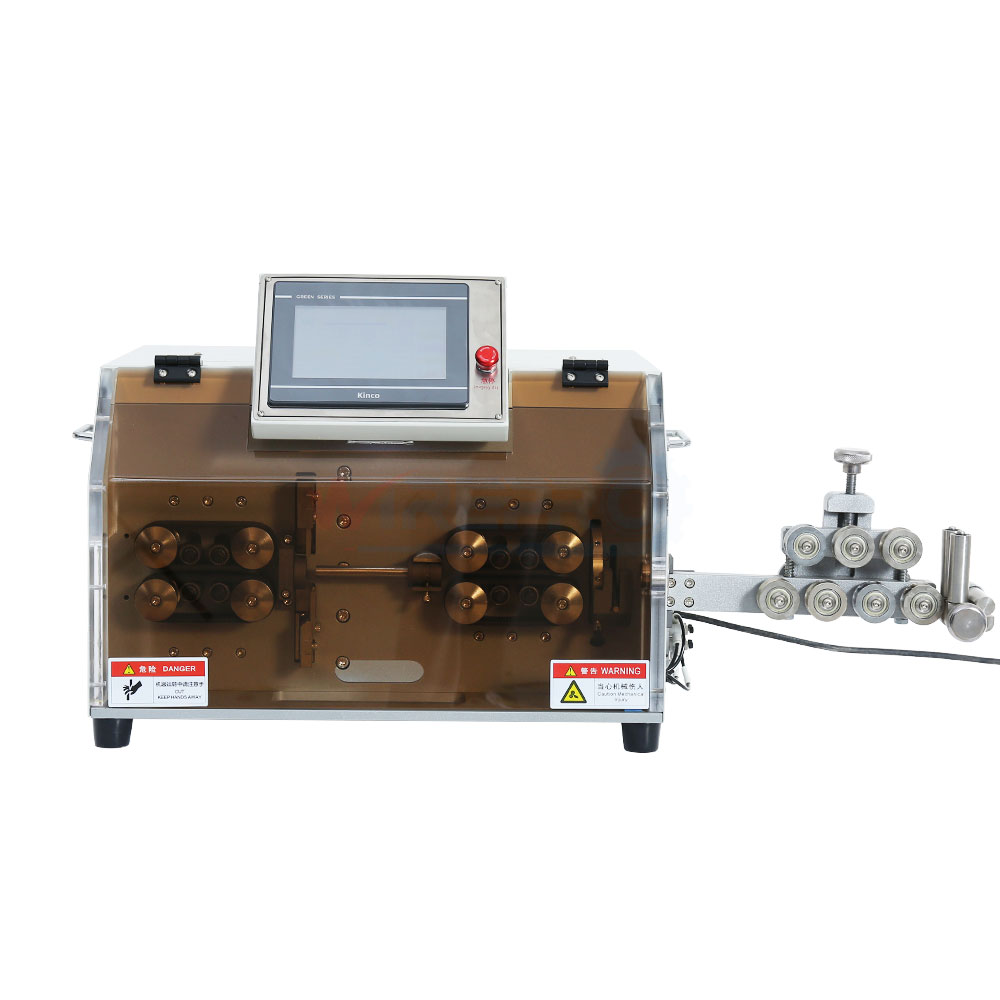

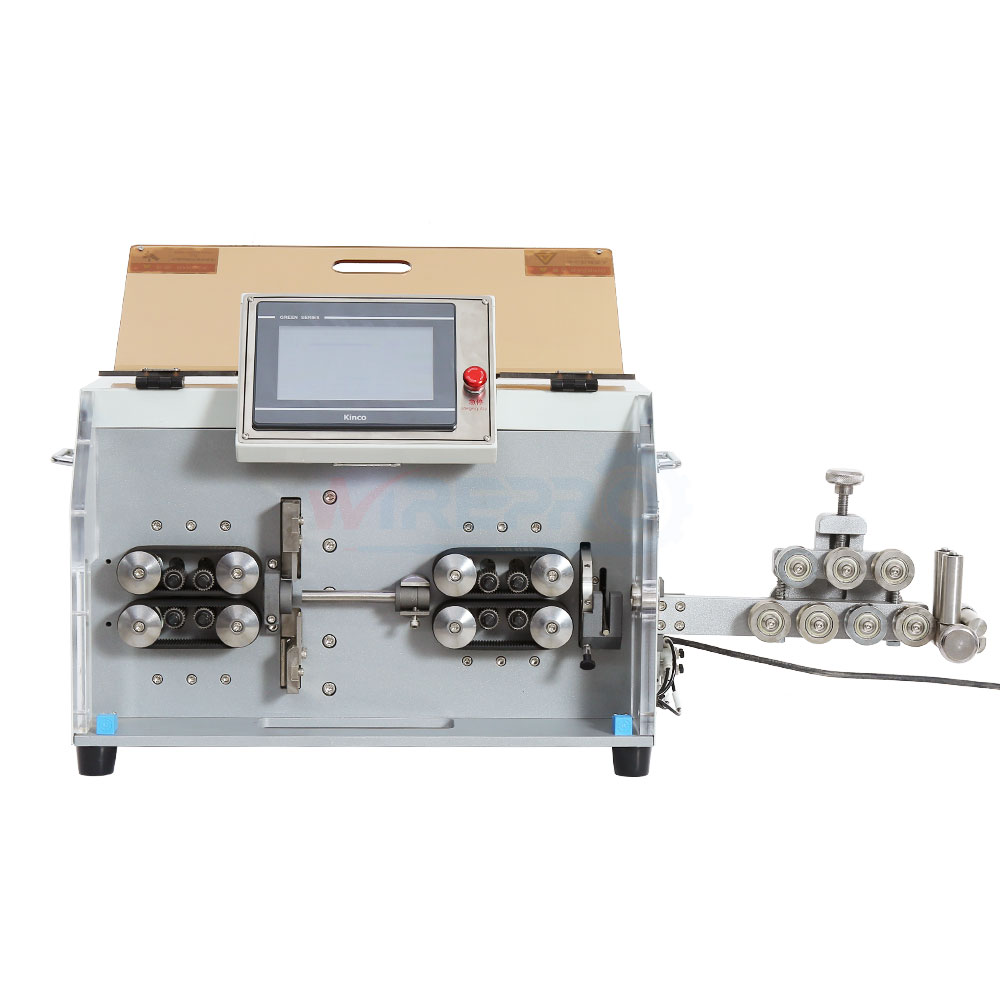

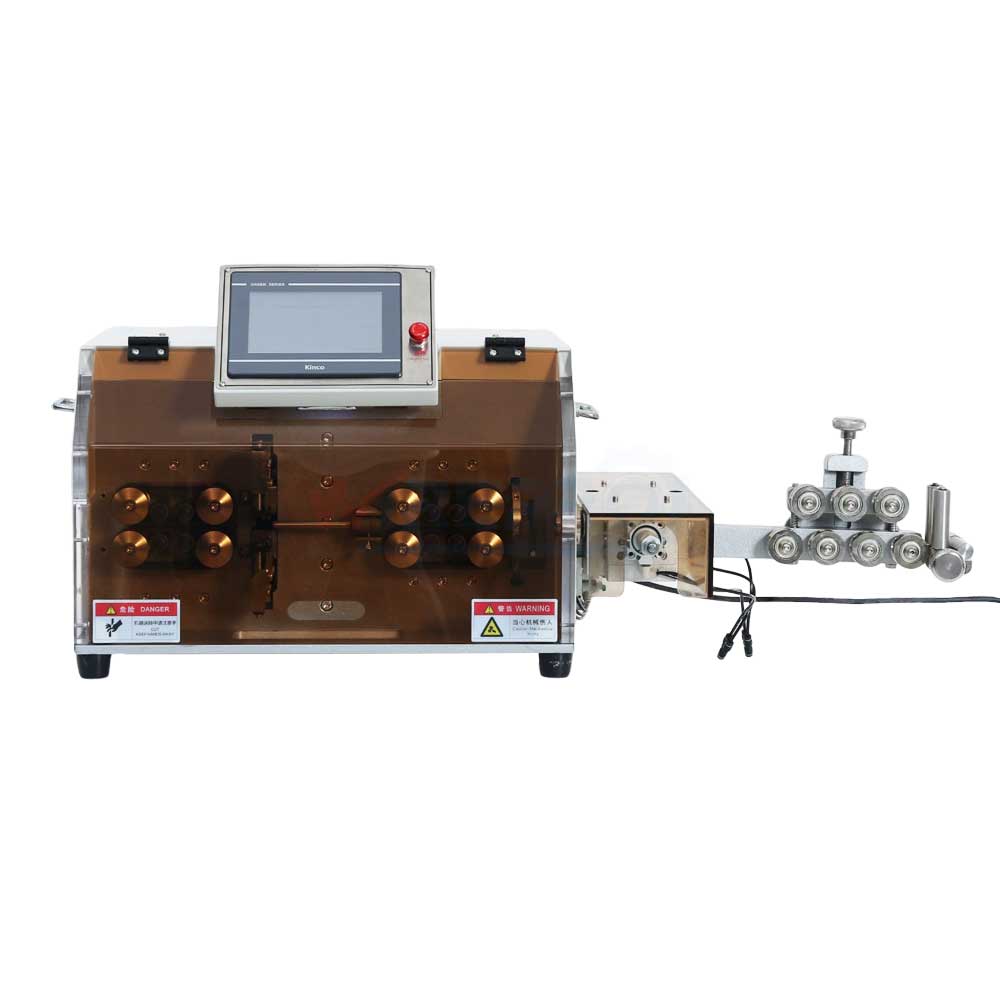

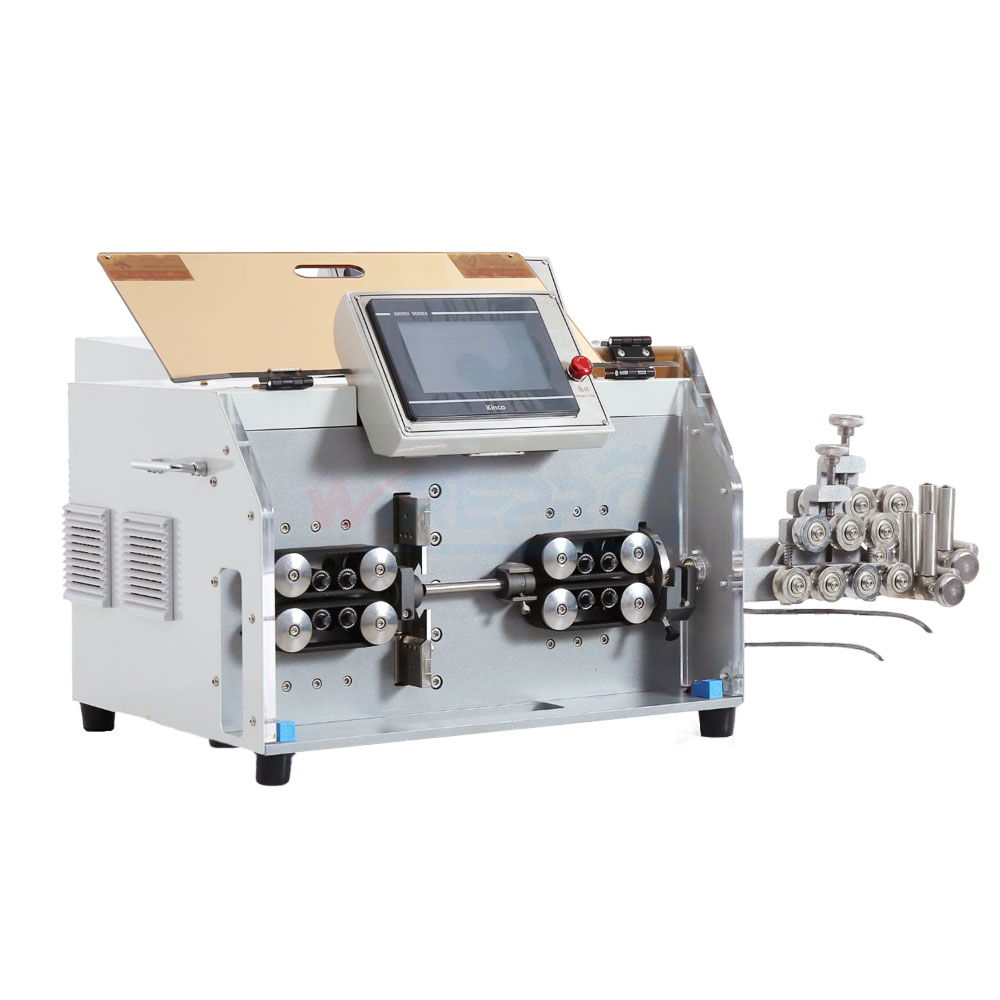

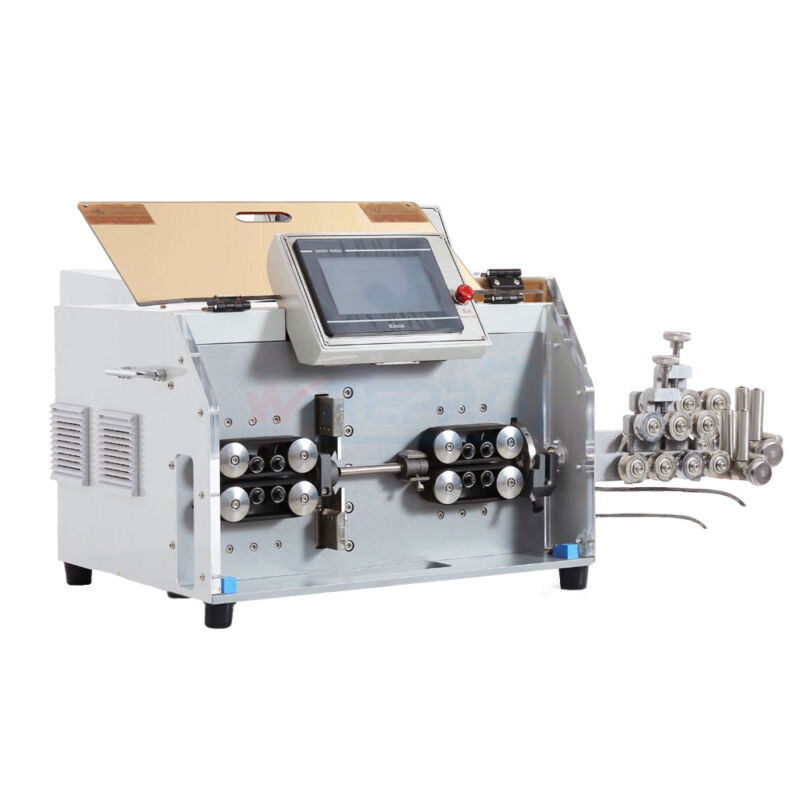

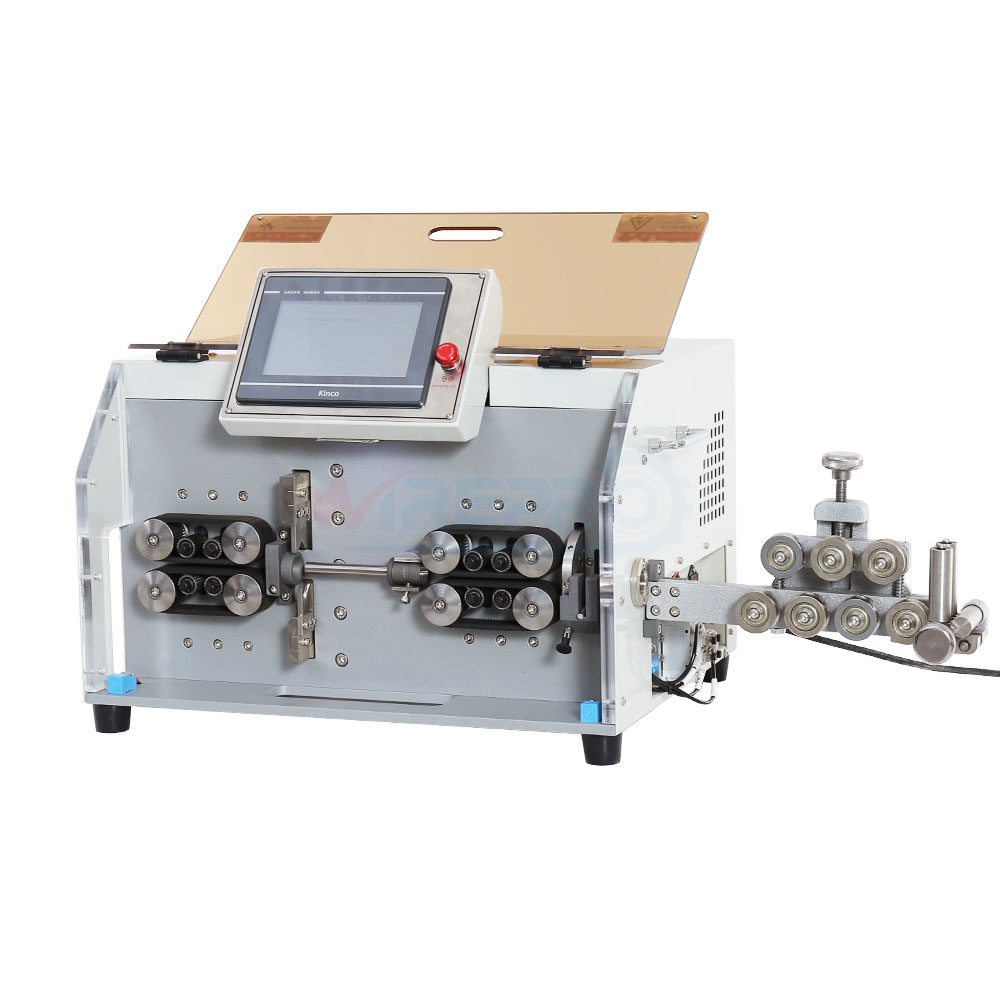

SU-030 SU-050 30 50 mm2 computer wire cable cutting and stripping machine
Descrizione
SU-030 features:
The series machines are designed for full-automatic cut and strip big size cable, like the automotive industry power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, high power supply shielding cable, charging pile harness. It’s good for Silicone wire, high-temperature wire and signal wire, etc.
1. Processing cable below 30 sqmm, improving working efficiency

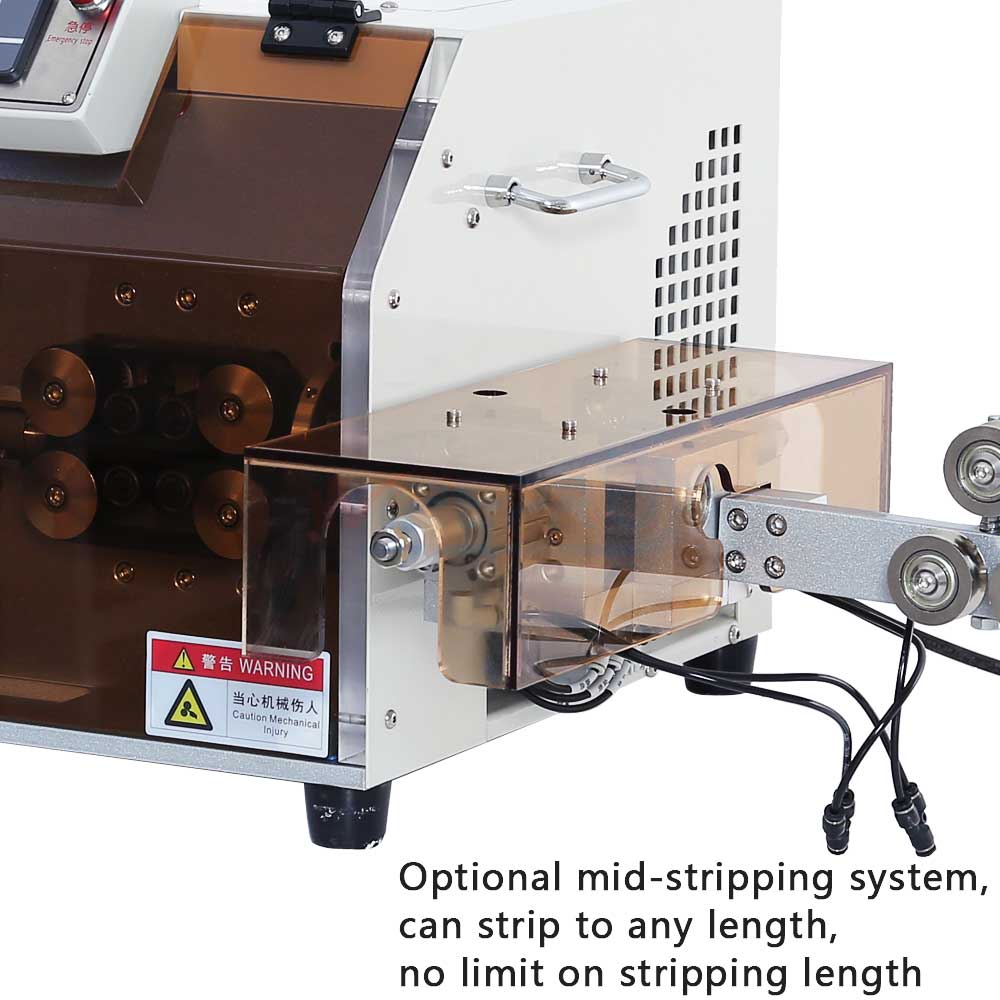

2. Long stripping length than normal machines

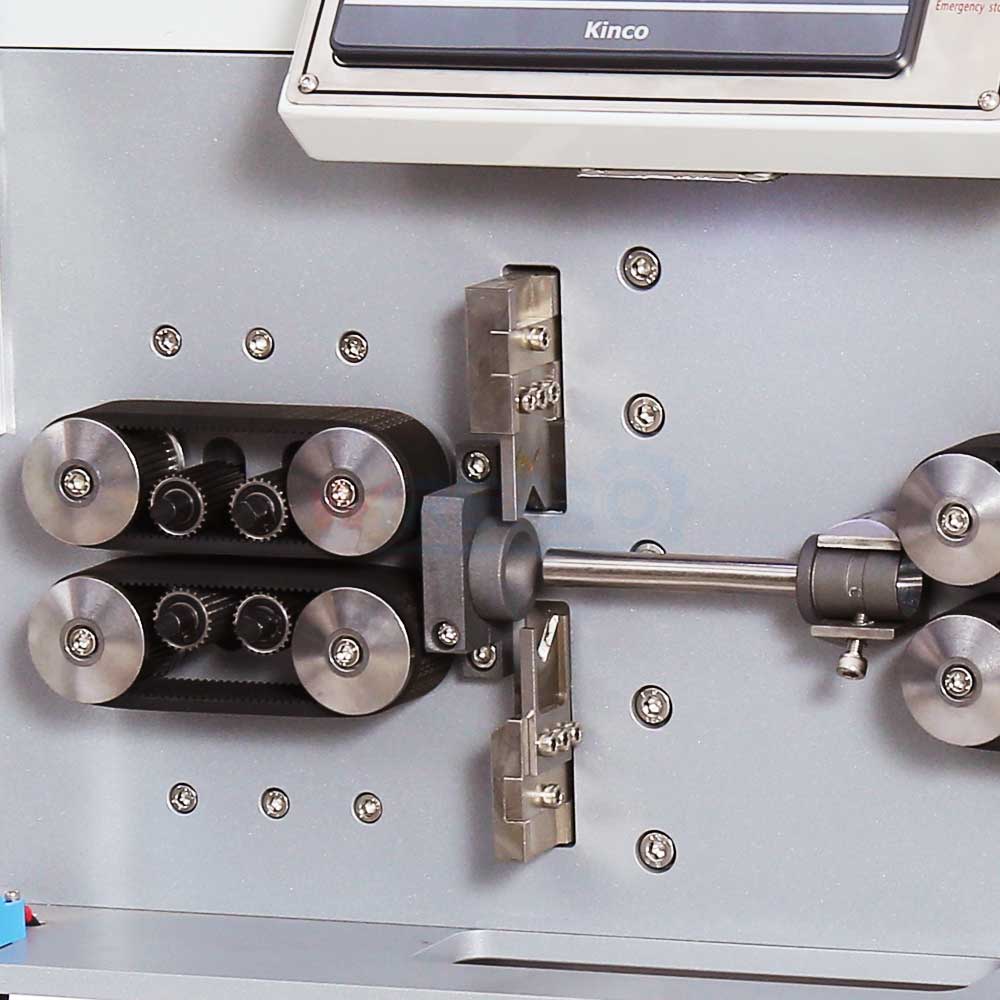

3. Belt feeding cable, no embossing, no scratches
4. Automatically identify the machining center, increase the production rate
5. Uses specific axial positioning and advanced tool holders, improving accuracy and production rate.
6.Digitally Display Screened cutting wire diameter, high-quality pneumatic components, more energy-saving, and work stably.
7. Optional auxiliary equipment: automatic wire feeder, wire stacker or coiler etc.
SU-030 is a desk type; SU-030-F is floor type and generally works with the wire coiler.
30mm2 computer wire cable cutting and stripping machine video
Technical Data
| Model | SU-030 | SU-050 |
| Available Wire Size | AWG17 – AWG3 | AWG17 – AWG0 |
| Conductor Cross-Section | 1-30mm² (stranded wire) | 1-50mm² (stranded wire) |
| Conduit Diameter * | Φ16mm | Φ20mm |
| Cutting Length | 1-99999mm | |
| Cutting Length Tolerances | ≤(0.002*L) mm | |
| Stripping Length * |
Full stripping Head 1-190mm; Tail 1-80mm (based on wire) |
|
| Production Rate | 1500-2300pcs/h | |
| Display Screen | 7 inch touch screen | |
| Wire Feed Method | Belt feeding | |
| Drive Method | 16 wheels drive | |
| Power Supply | 220V/110V | |
| Power | 1100W | 1300W |
| Weight | 95kg | 105 |
| Dimensions | 84.5*54*62.5cm | 84.5*54*62.5cm |
| Note: * mark parameters custom available. If you are in doubt, we are happy to process your sample. | ||

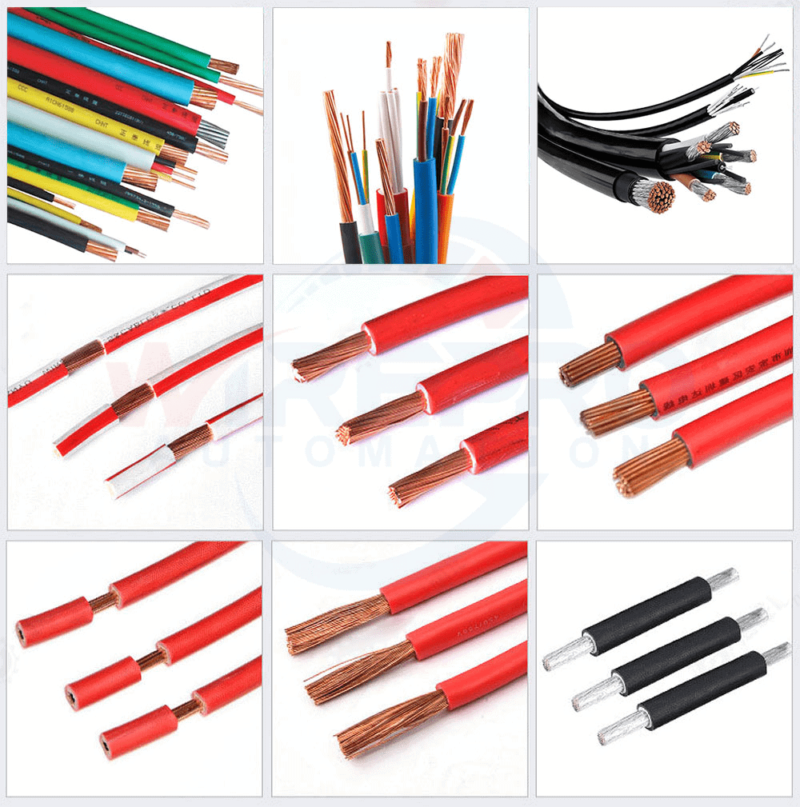

Application
The series machines are designed for full-automatic cut and strip big size cable.
